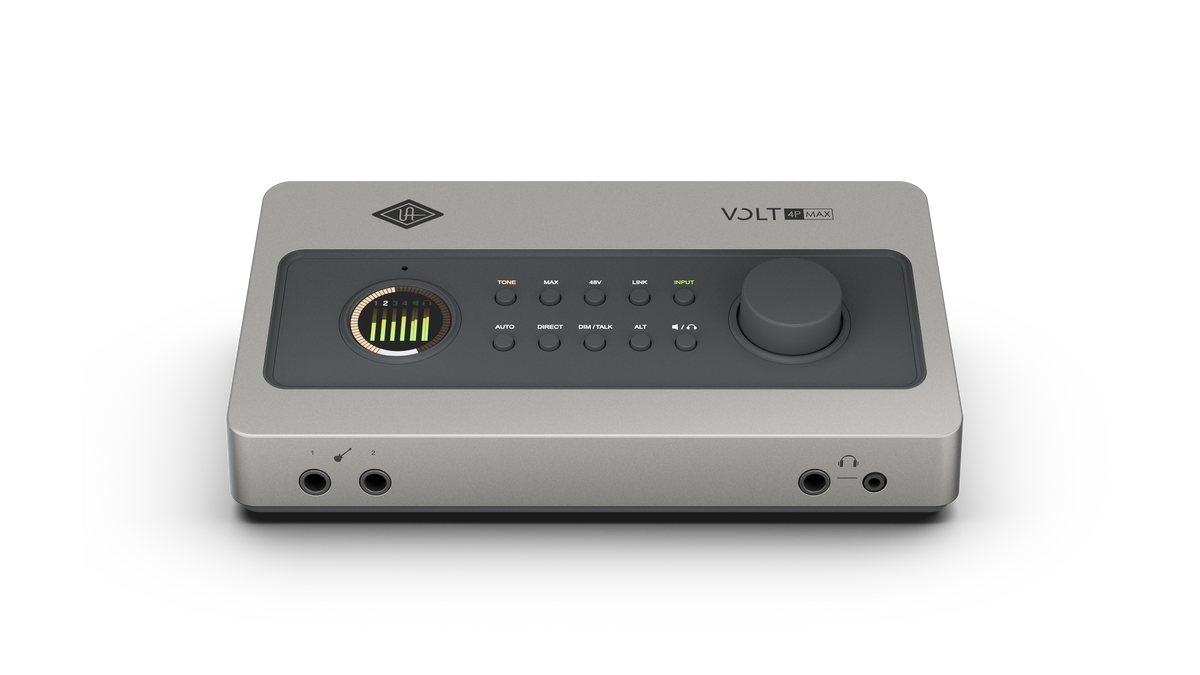

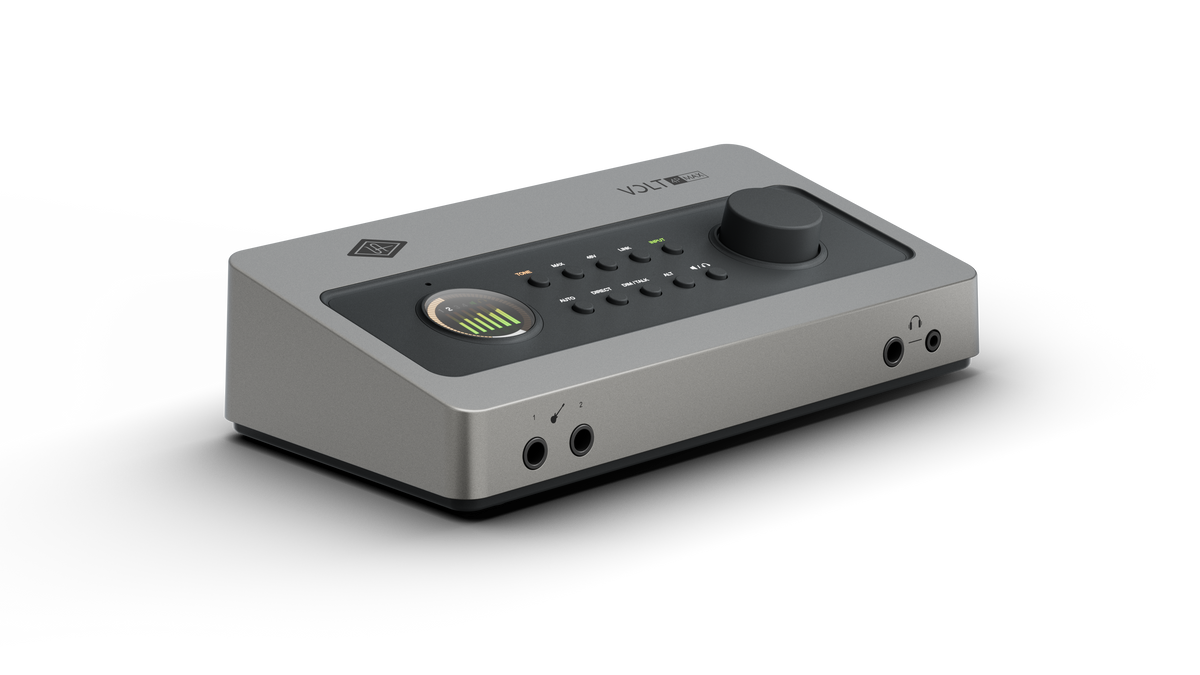

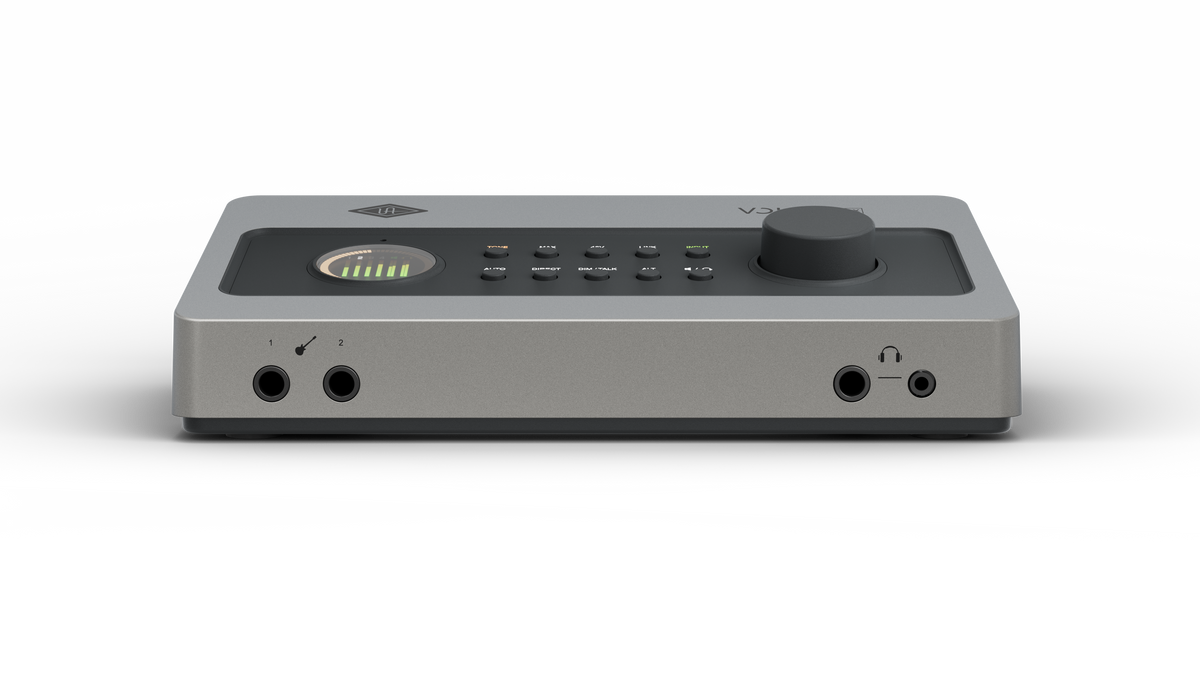

UNIVERSAL AUDIO

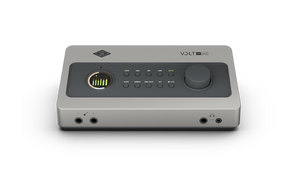

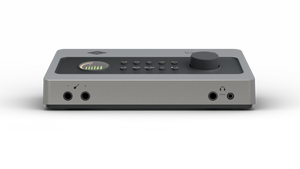

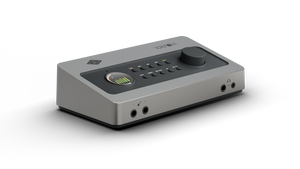

Volt 4P Max

USB

Desktop USB audio interface, 12-in/6-out I/O, 32-bit/192 kHz conversion, four tone-shaping preamps, onboard compression

$699.00 CAD
Shipping calculated at checkout.
Want an alert when this item is on sale?

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

This flagship desktop USB audio interface gives bands, drummers, producers, podcasters, and livestreamers the connectivity and control needed for larger recording sessions. Four mic and line inputs, two instrument inputs, optical expansion, MIDI, speaker switching, loopback, and a built-in talkback microphone support music production and collaborative content creation.

Three preamp character modes and six onboard compression presets help shape vocals, guitars, bass, drums, and other sources while recording. Auto-Gain, Clip Protection, and the full-color display simplify level setting and monitoring, while class-compliant operation supports Mac, Windows, iPad, and iPhone workflows. A collection of audio plug-ins, instruments, and recording software is also included.

Features

Tone-Shaping Preamps
Choose from Warmth, Focus, and Shine modes to add tube, solid-state, or British Class-A character while recording.

Onboard Compression
Six musical presets provide real-time dynamics processing tailored for vocals, guitars, and bass.

Expanded Recording Capacity
Multiple analog inputs, optical expansion, and MIDI connectivity support full-band sessions and external studio equipment.

Automatic Level Control
Auto-Gain sets recording levels quickly, while Clip Protection helps prevent unexpected peaks from distorting a take.

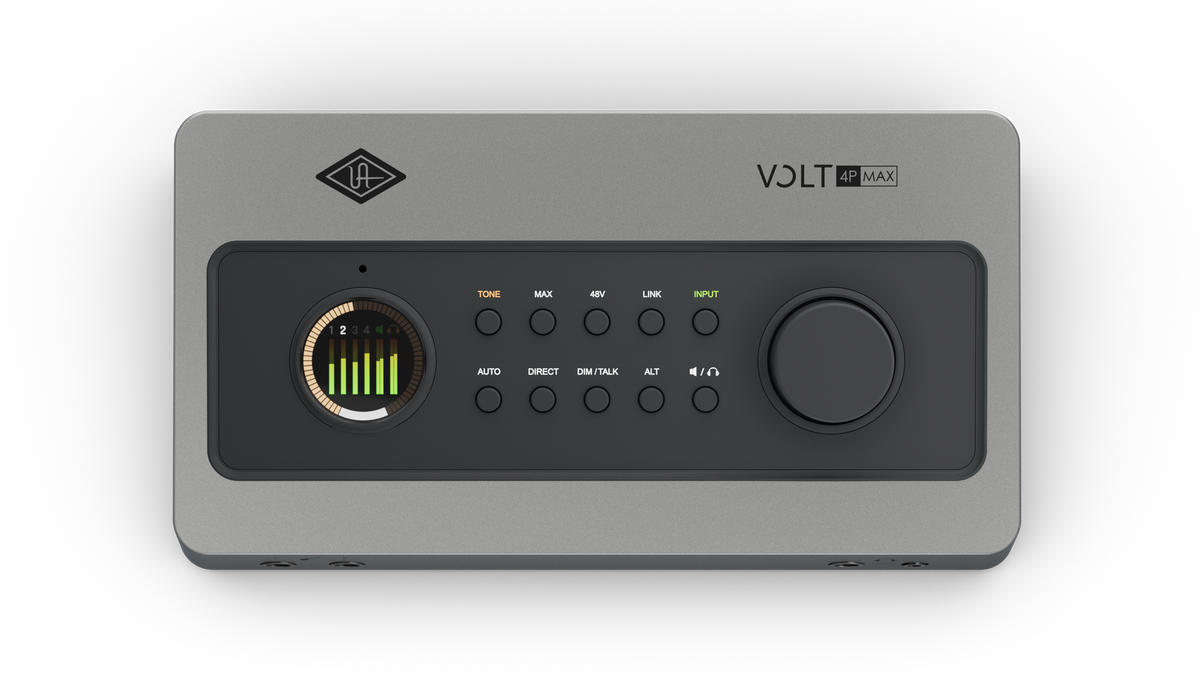

Full-Color Display
Clear visual feedback provides fast access to channel settings, signal levels, and gain-reduction metering.

Flexible Monitoring
Speaker switching and dual headphone outputs make it easier to manage alternate monitors and collaborative sessions.

Integrated Talkback
The built-in microphone supports communication with performers during recording.

Loopback Audio
Computer audio and live sources can be combined for podcasts, livestreams, and other content.

USB Hub
An onboard USB port connects compatible peripherals and can power external MIDI controllers.

Production Software

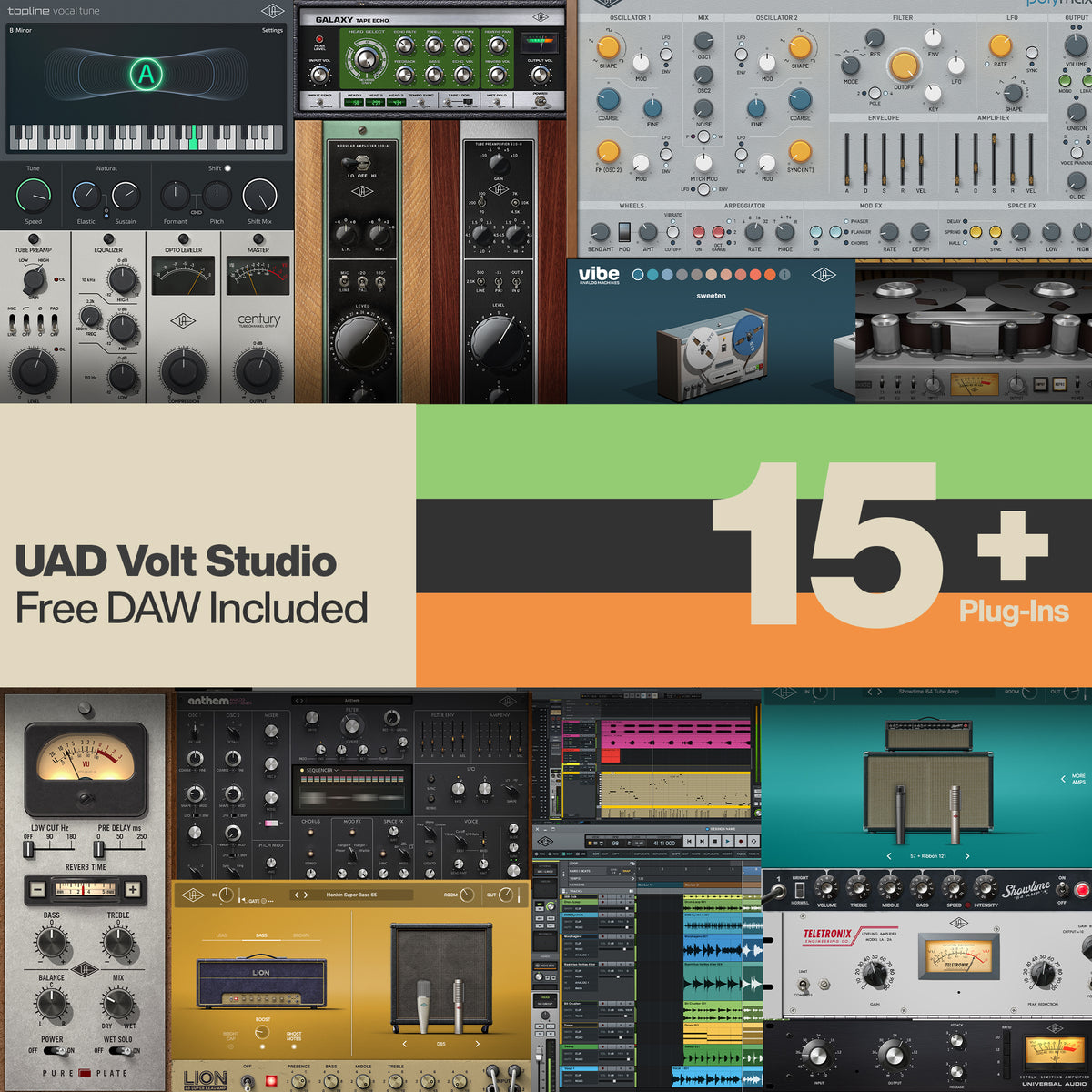

Included recording software, plug-ins, instruments, effects, and amplifier tools provide a complete starting point for music production.

Specifications

General Specifications
Device Type: Desktop USB audio interface
Simultaneous I/O: 12-in / 6-out
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Bit Depth: 32-bit
USB Standard: USB 2.0
USB Connector Type: USB-C
Talkback: Built-in microphone
Loopback: Built-in

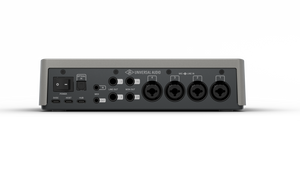

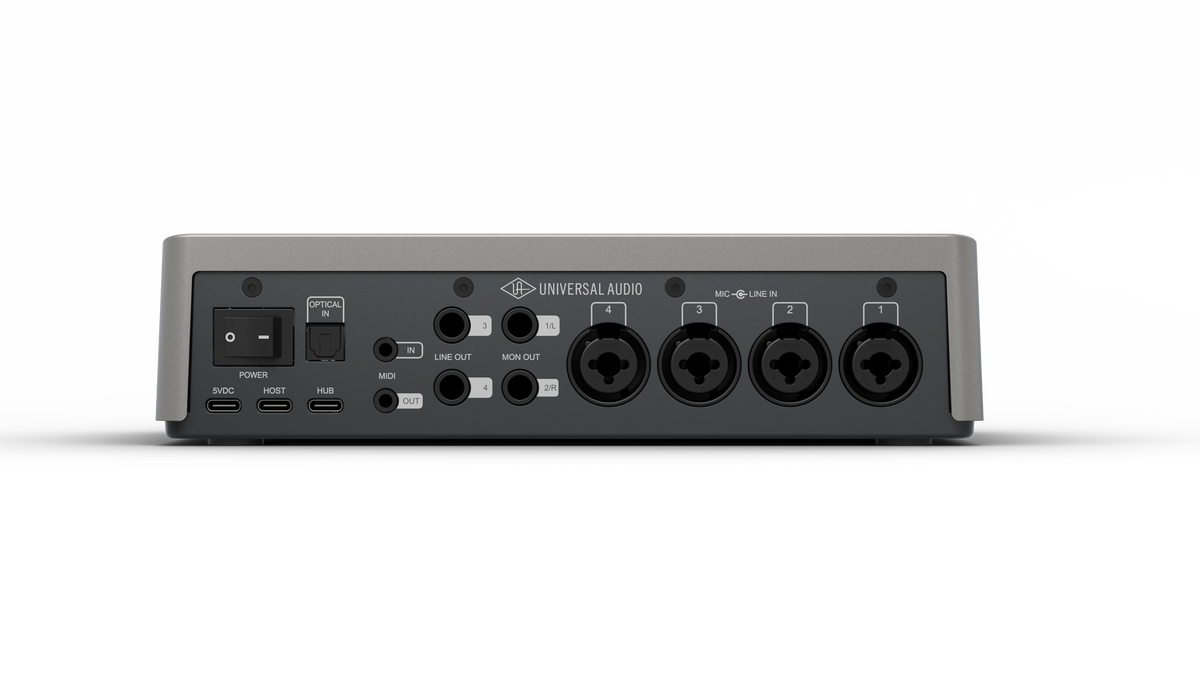

Analog Inputs
Microphone Preamps: 4
Microphone Preamp Gain: 60 dB
Mic / Line Inputs: 4
Instrument Inputs: 2
Phantom Power: +48V, independently switchable per channel
Microphone Connector Type: XLR combo
Line Connector Type: 1/4-inch TRS balanced or TS unbalanced
Instrument Connector Type: 1/4-inch TS unbalanced

Analog Outputs
Monitor Outputs: 2 stereo sets, main and alternate
Additional Line Outputs: Outputs 3 and 4
Headphone Outputs: 2 stereo
Headphone Cue Mixes: 1 shared
Monitor and Line Connector Type: 1/4-inch TRS balanced or TS unbalanced
Headphone Connector Types: 1/4-inch and 1/8-inch TRS stereo

Digital I/O
Optical Input: ADAT or S/PDIF
ADAT Channels at 44.1 or 48 kHz: 8
ADAT Channels at 96 kHz: 4 via S/MUX
ADAT Channels at 192 kHz: 2 via S/MUX
S/PDIF Channels: 2 at all supported sample rates

MIDI
MIDI Connections: In and Out
MIDI Connector Type: 1/8-inch TRS mini-jack
MIDI Standard: Type A

USB Connectivity
USB Host Port: 1
USB Hub Port: 1
USB Hub Power Output: 5V DC, 0.5A maximum
External Power Input: 5V DC, 2A minimum
Included Power Supply Output: 5V DC, 3A

Power
USB Bus Power: Supported
Typical Power Consumption: 6.0W at 5V DC
Maximum Power Consumption: 9.1W at 5V DC
Power Switch: Rear panel

Instrument Input Performance
Frequency Response: 20 Hz to 20 kHz, ±0.02 dB
Dynamic Range: 116 dB, A-weighted
THD + Noise: -108 dB, 0.0004%
Maximum Input Level: 13 dBu
Input Impedance: 1 MΩ

Microphone Input Performance
Frequency Response: 20 Hz to 20 kHz, ±0.08 dB
Dynamic Range: 119 dB, A-weighted
THD + Noise: -108 dB, 0.0004%
Maximum Input Level: 14 dBu
Input Impedance: 2 kΩ

Line Input Performance
Frequency Response: 20 Hz to 20 kHz, ±0.05 dB
Dynamic Range: 119 dB, A-weighted
THD + Noise: -108 dB, 0.0004%
Maximum Input Level: 22 dBu
Input Impedance: 10 kΩ

Monitor and Line Output Performance
Frequency Response: 20 Hz to 20 kHz, ±0.05 dB
Dynamic Range: 126 dB, A-weighted
THD + Noise: -112 dB, 0.0003%
Maximum Output Level: 20.2 dBu
Output Impedance: 200 Ω
DC Coupled: Yes

Headphone Output Performance
Frequency Response: 20 Hz to 20 kHz, ±0.08 dB
Dynamic Range: 116 dB, A-weighted
THD + Noise: -103 dB, 0.0007% into 300 Ω
Maximum Output Power at 32 Ω: 45 mW
Maximum Output Power at 300 Ω: 24 mW
DC Coupled: Yes

System Requirements
Computer Connection: Available USB 2.0 or higher port
Processor: Intel, AMD, or Apple silicon
Windows: Windows 10 64-bit or newer
macOS: macOS 12 Monterey or newer
Mobile Operating System: iPadOS or iOS 16 or newer
DAW Compatibility: Major digital audio workstations
Internet Connection: Required for software downloads
