ZRC

Dedicated ZaxNet Remote Control
Control compatible Zaxcom transmitters directly without relying on an app or additional control hardware.

Group and Individual Transmitter Management
Organize transmitters by Group and ID to make individual adjustments or apply changes across multiple transmitters.

Comprehensive Wireless Controls
Change transmitter frequency, RF power, input gain, recording status, timecode settings, encryption, and other supported functions remotely.

Remote Card Formatting
Format the internal memory card of an individual transmitter or an entire transmitter group from the controller.

Integrated SMPTE Timecode

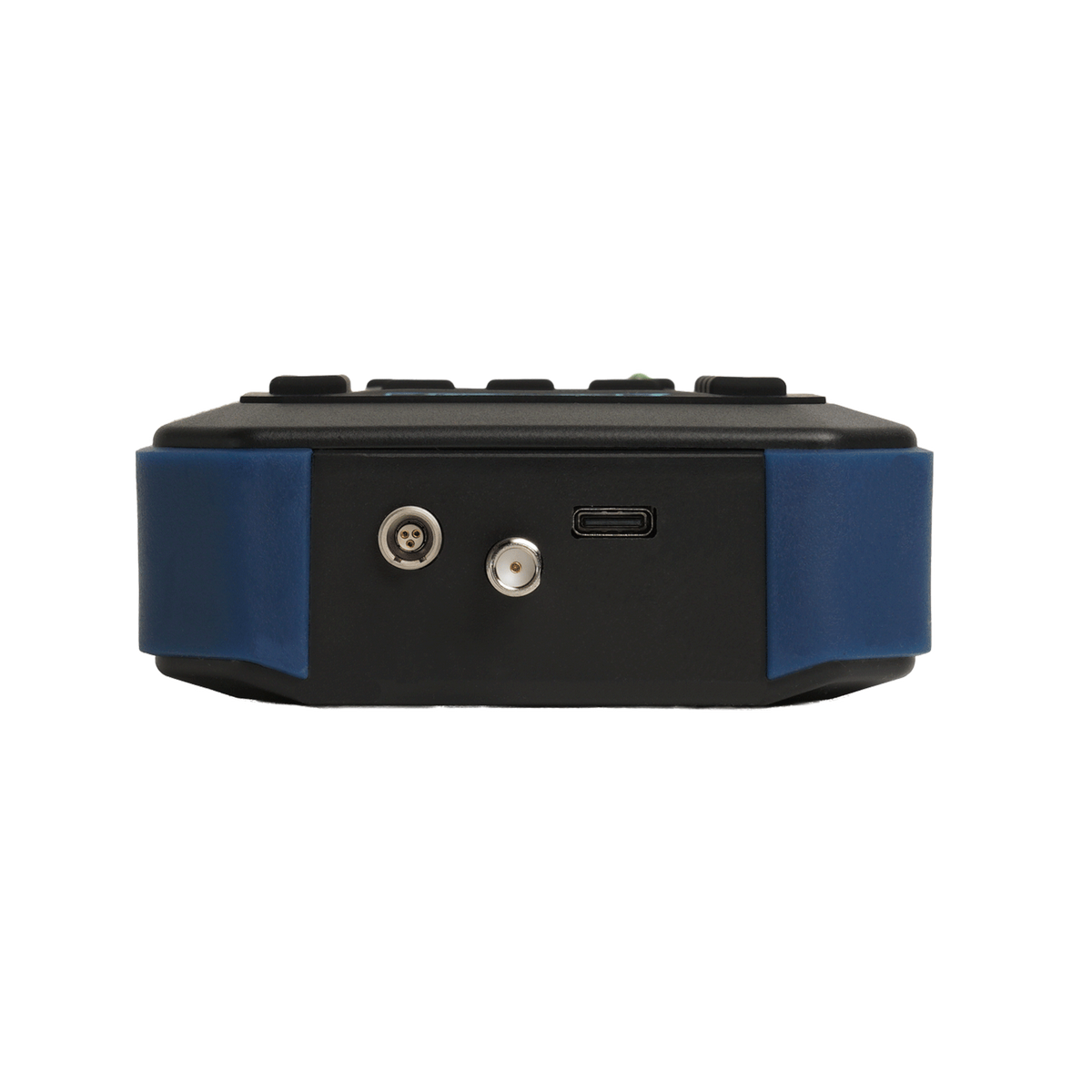

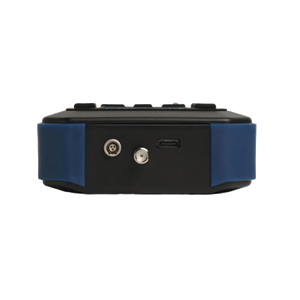

Read, generate, jam, and transmit SMPTE timecode over ZaxNet, with a 3-pin LEMO connection for external timecode input and output.

Multiple Controller Support
Operate alongside other ZaxNet control devices or multiple ZRC units, with one device designated as the timecode master when required.

Adjustable ZaxNet Transmission
Configure the 2.4 GHz ZaxNet frequency and RF transmission power to suit different production environments.

Digital Encryption Control
Configure Zaxcom digital encryption to help keep compatible wireless audio transmissions private.

Smart Transmitter Power Modes
Use supported LOW2 and SLEEP modes to conserve transmitter battery power and remotely wake compatible units when needed.

Three User Presets
Save and load up to three presets to simplify repeated setups and production configurations.

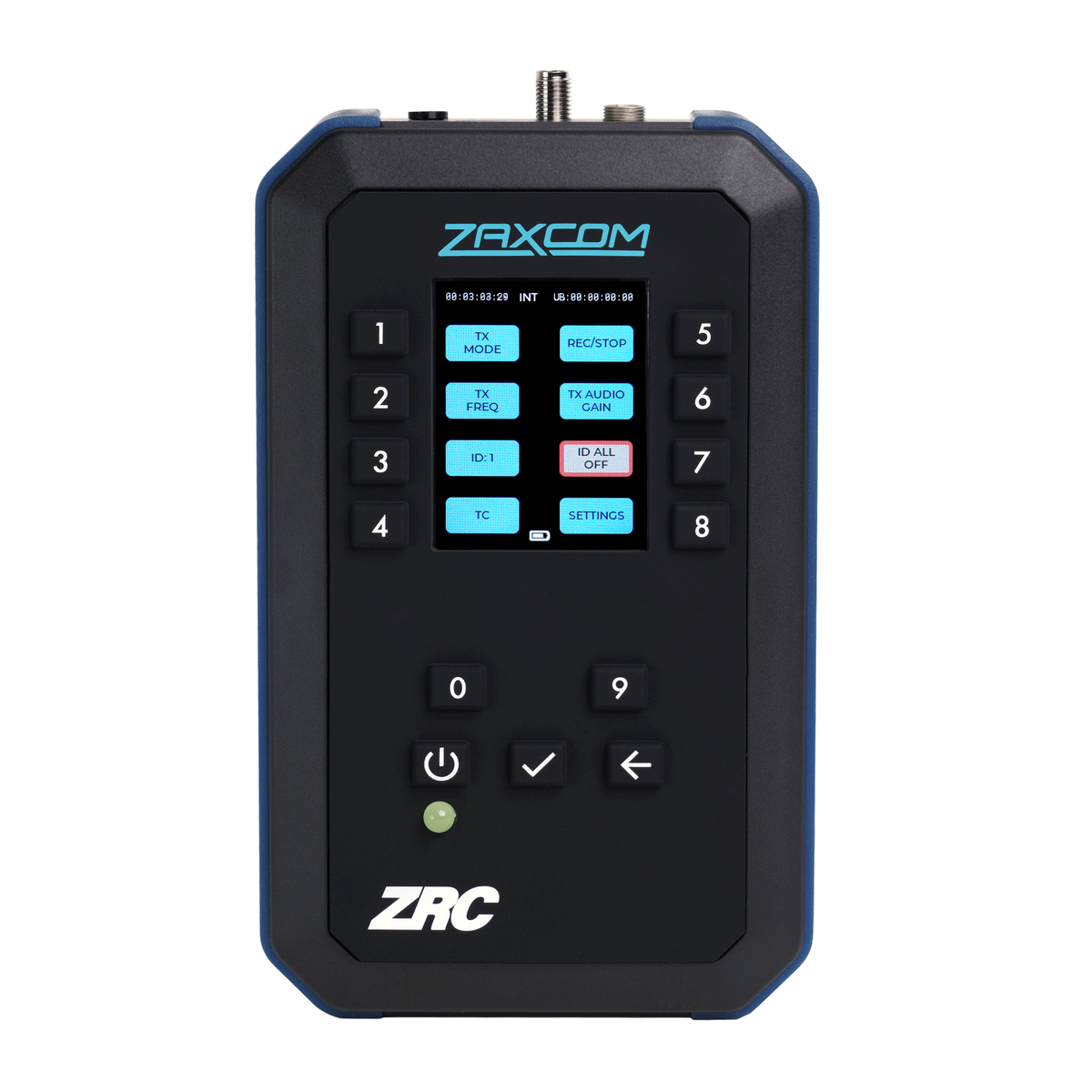

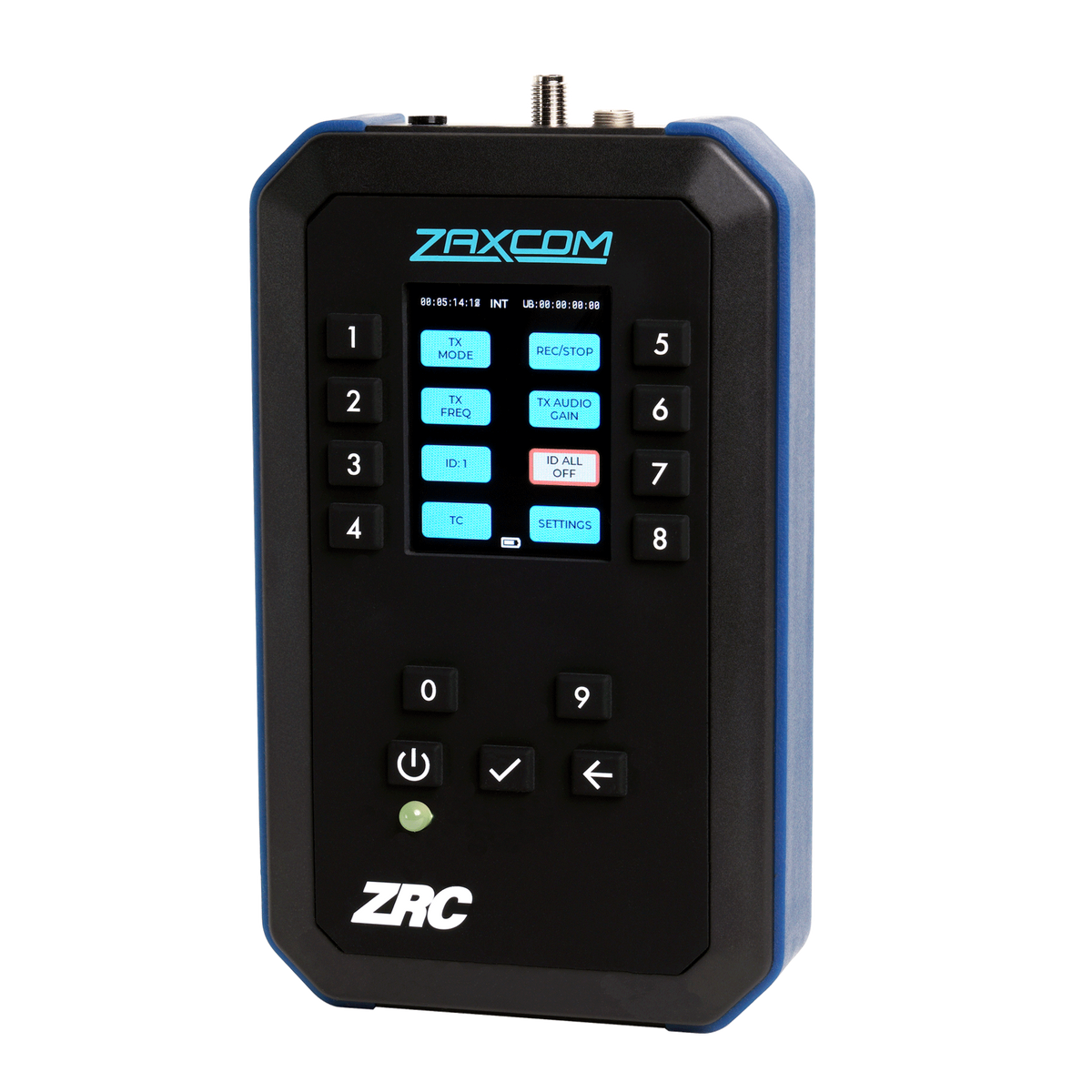

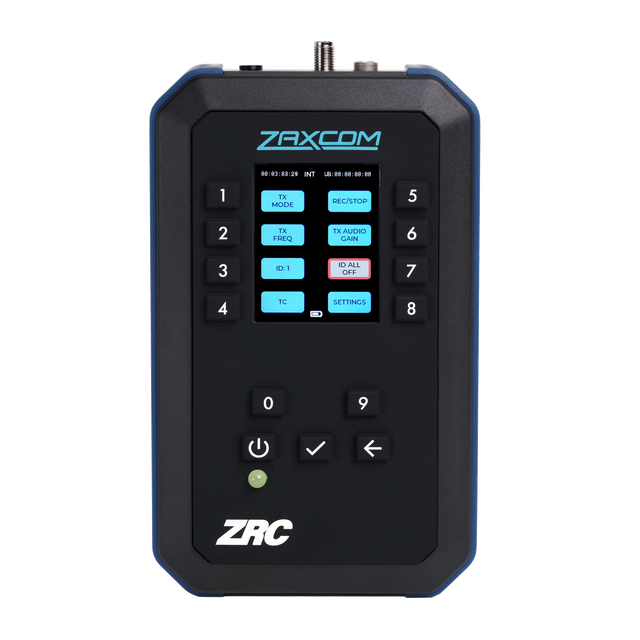

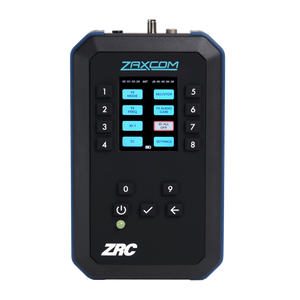

Physical Controls and Display
A graphic LCD panel, physical keypad, and menu-based navigation provide direct operation without a touchscreen.

Flexible Display Settings
Adjust display brightness, text color, auto-dim behavior, and delay settings for different working environments.

Dual Power Options

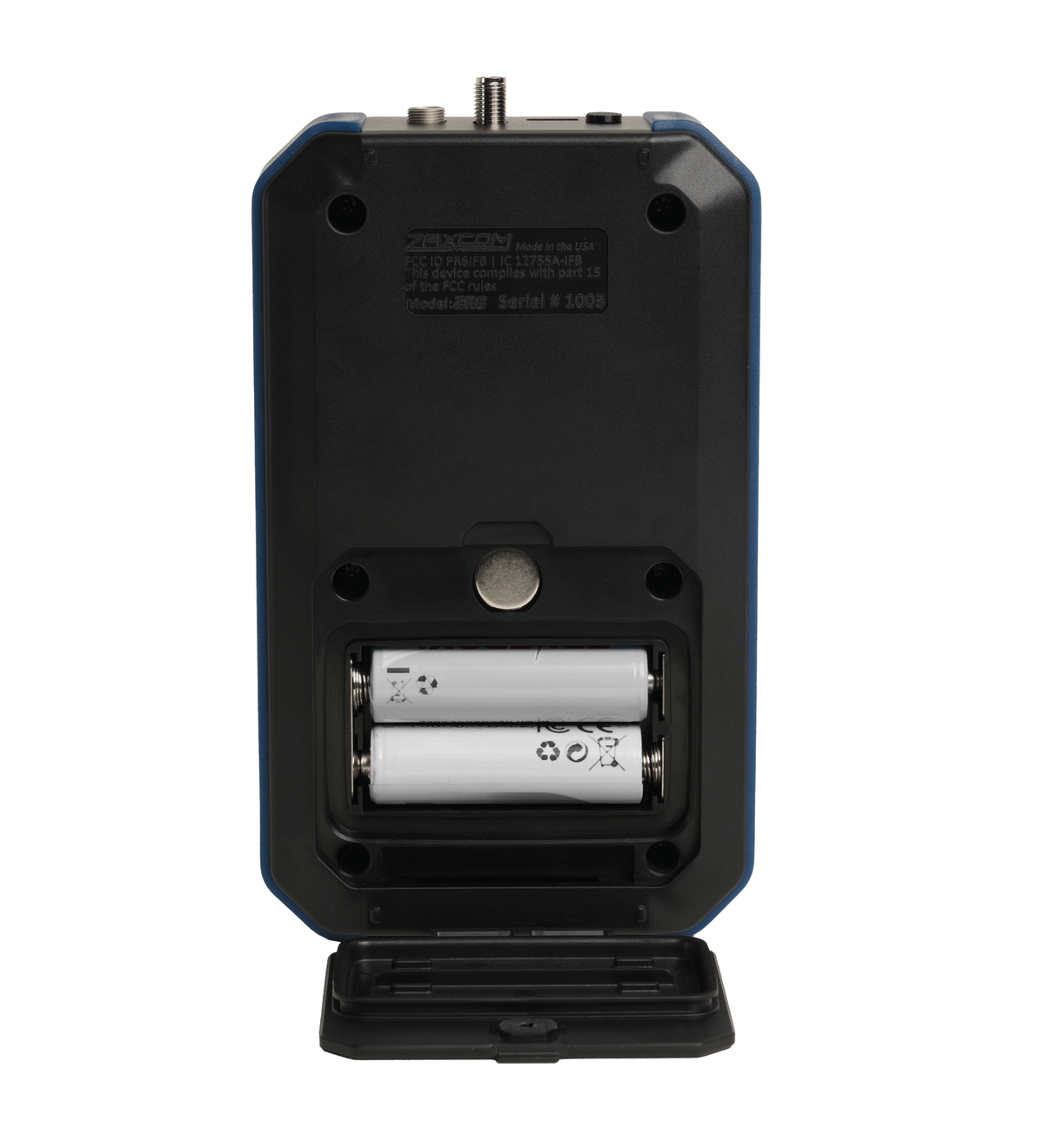

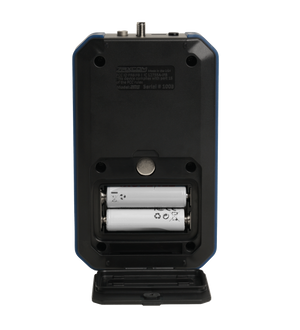

Operate from external USB-C power or two AA Alkaline, Lithium, or NiMH batteries.

USB-C Firmware Updates
Update system software through the USB-C connection.

Included Accessories
Supplied with one ZRC controller and one antenna.

RF Specifications
RF Power Output: 50 mW
RF Modulation: Digital Spread Spectrum
RF Frequency Range: 2.403 to 2.475 GHz
RF Frequency Step: 1 MHz
RF Bandwidth: 1 MHz
Channel Separation: 2 MHz
Antenna Connector: 50 Ω SMA Female
FCC Compliance: CFR Title 47, Part 15

Timecode I/O
Timecode Connector: 3-pin LEMO
Timecode Input Level Range: 1 to 5 VPP
Timecode Output Level: 2 V P-P
Impedance: 75 Ω

Timecode Reader and Generator
Clock Accuracy: 1.54 PPM, approximately 1 frame drift in 6 hours
Timecode Type: SMPTE
Supported Frame Rates: 23.98, 24, 25, 29.97 DF, 29.97 NDF, 30 DF, 30 NDF

Power Specifications
External Power: USB-C
Internal Power: 2 × AA batteries
Supported Battery Types: Alkaline, Lithium, NiMH
Battery Run Time: Varies by battery type

Physical Specifications
Weight: 240 g / 8.7 oz
Dimensions: 88 × 33 × 146 mm / 3.4 × 1.3 × 5.8 in
Display: Graphic LCD panel

Software
Software Updates: USB-C

Included Items
Controller: 1
Antenna: 1
