A-Designs Mix Factory

The MIX FACTORY is not just a summing unit, it delivers analog warmth with the depth and image needed to make your mixes stand out from the crowd.

The MIX FACTORY is a totally new product designed to create that analog sound with the depth and image needed to make your mixes stand out from the crowd.

The MIX FACTORY is a concept developed by Tony Shepperd (who is known for his high -quality recordings ranging from Gospel, R&B to Rock-and-Roll), designed by Paul Wolff (one of the top designers in the audio industry), and manufactured by A Designs Audio, Inc. - (manufacturer of products such as the Pacifica, Ventura, REDDI, Hammer2 and Nail).

Tony Shepperd was one of many modern engineers that felt that everything could be done "IN THE BOX." But, he came to realize that analog and digital could live very well together. By combining the two - analog and digital - to create a Hybrid - was the special combination that took his mixes to a level that had other recording engineers calling him for tips and demanding to know how he made his recordings sound so great.
The end result, after years of R&D, was the MIX FACTORY.

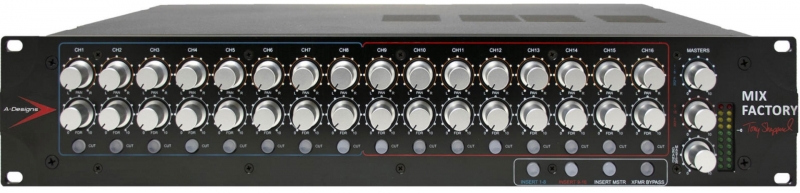

There are 16 channels (which are 2 D -sub inputs summing to a stereo XLR out). All 16 channels have a continuous Gain Knob, Pan (center detent), and Mute that acts as a signal indicator with an audio sensitive LED. The LED indicator glows when signal is passing into the channel and intensifies when the signal is stronger. The same Mute button changes color from Red, when used as a mute, to Green when signal is passing through the channel.

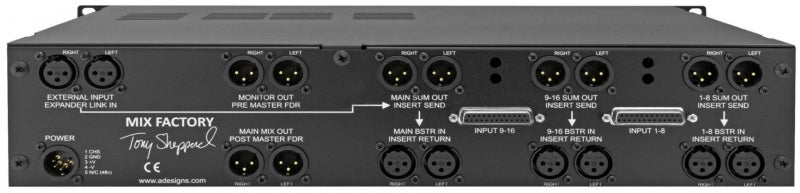

There are (2) Eight-Channel groups: 1-8 and 9-16. Each group has an Insert for a Compressor or EQ. There is also a Master Insert for all 16 Channels, along with 3 Mute buttons for each Insert.

The MIX FACTORY has a pushbutton option to go from clean (the standard setup bypassing the transformers) to tonal, using the custom-made output transformers made by Cinemag. The difference between transformers and no transformers is night and day. This gives you an option for analog tone and/or color.

The MIX FACTORY is also linkable! This means you can have 64 or more's like having a console in two 2RU Rack.

There is an external pal power supply to insure a perfect sounding unit every time. This is a switchable Power Supply, which can be used for domestic (US) 120v and export 230v. The Power Supply is hefty enough to handle any needs you may require from the MIX FACTORY.
  • Solid State Design
  • Custom Milled Aluminum Knobs
  • Custom Output Transformers
  • 2RU Rack Space
  • External Power Supply
  • Balanced XLR Output
  • 16 Gain Controls
  • 2 Master Gain Controls 1-8 and 9-16
  • 1 Grand Master Gain Control
  • 16 Pan Controls
  • Master Insert
  • 1-8 Insert
  • 9-16 Insert
  • 16 Mute Switches
  • Transformer In/Out Switch
  • 22 Color Changing Switches
  • LED Array
  • Linking XLRs for more channels
  • Specifications
  • Gain Range Total: Unity Gain to full Attenuation
  • Gain Range for 1-16: Unity Gain
  • Max Input: +27dBu
  • Balanced XLR Output
  • Power Requirements: 100/120/230 VAC
  • Dimensions: 19" x 3.00" x 10"
  • Weight: 16.4 lbs.; 17.5 lbs. shipping weight
  • Reviews
    Price *
    Free shipping in Canada. Conditions
    Additional information
    For more information about the Mix Factory, please visit the website of A-Designs
