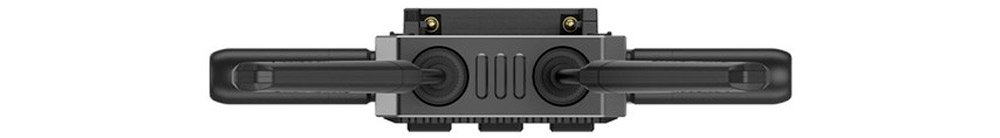

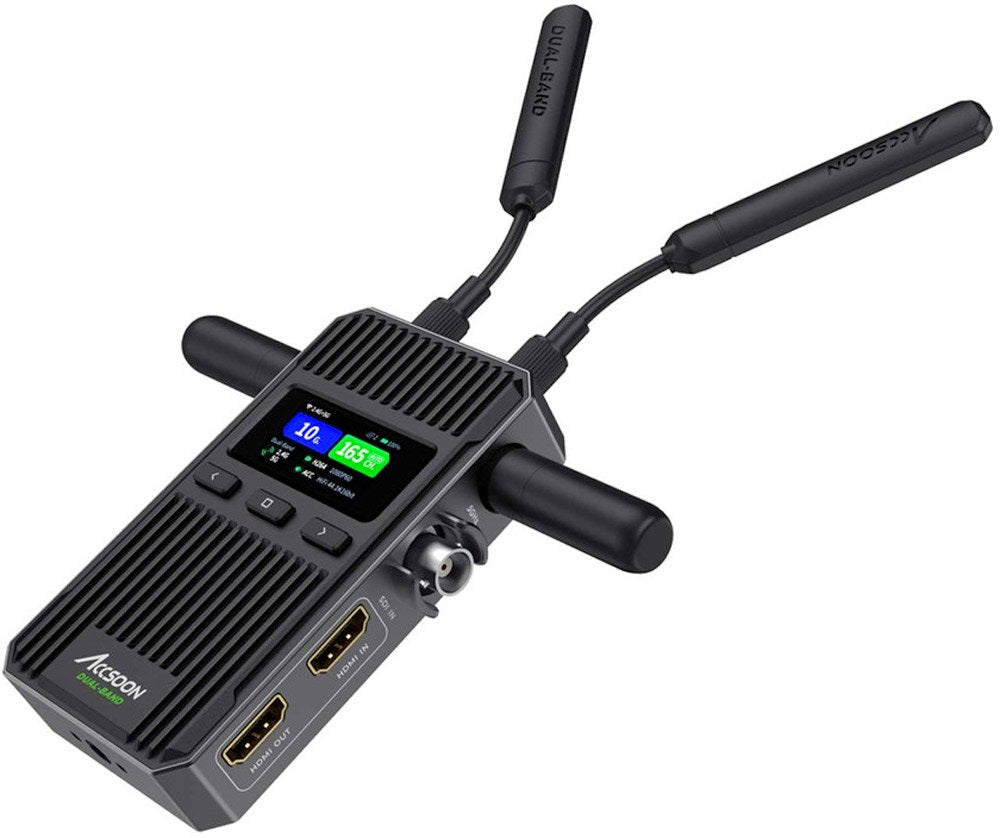

Accsoon Cineview 2 SDI-Transmitter
MPN #ACS-WIT08-S-TX
CineView 2 SDI-TX (TX Only). Dual Band transmission, 1500ft range, 50ms latency, Fanless design, UVC Streaming, SDI & HDMI. Compatiblewith Smartphone APP
Stability with a Longer Range
The CineView 2 is the latest addition to Accsoon esteemed CineView product family. Expanding on Accsoon US patented 2.4GHz+5GHz Dual-Band technology and featuring an all-new antenna design, the CineView 2 can seamlessly transmit 1080P 60fps video and audio signals across a 1500ft (450m) line of sight range, all while maintaining an impressively low latency of under 50ms.
Features
2.4GHz + 5GHz Dual Band TransmissionTransmit Up to 1500ft/450mLatency Less Than 50msMonitoring on Up to 4 Devices1080P 60fpsSDI/HDMI In&Out, HDMI Loop OutNo Fan, No NoiseUVC Live Streaming
Specifications
Video Input: HDMI, 3G SDI
Video Output: HDMI Loop-Out
SDI Input Format: 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60i
720p: 50/59.94/60p
HDMI Input Format: 4096*2160: 23.98/24/25/29.97/30/50/59.94/60p 3840*2160: 23.98/24/25/29.97/30/50/59.94/60p
1080p: 23.98/24/25/29.97/30/50/59.94/60p
1080i: 50/59.94/60i
720p: 50/59.94/60p
HDMI Loop-out Format: Identical to the HDMI/SDI video input
DC Port: 5.5mmx2.1mm, center positive
DC Voltage: 7.4~16.8V
Battery: Compatible with NP-F550, NP-F750, NP-F970
USB-C Power Input: USB-C 5V/3A
Audio: 44.1KHz/48KHz 16/20/24bit
Latency: ?50ms (Camera latency not included)
Display: 1.47 inch Full-Color LCD Screen
Transmission Power: 2.4GHz: 20dBm, 5GHz: 20dBm
Transmission Range: 1500ft/450m (No obstacles, no interference)
Power Consumption: <6W
Operating Environment Temperature: -10~40?
Dimensions (Antennas Not Included): 60mm x 27.5 mm x 106.5mm
Weight (Antennas Not Included): 210g
