Sorry, the product Acme Audio Opticom MKII is not available anymore on Studio Economik's website.

Interested by other products in the category Outboard?

Do you want to see other available products from Acme Audio?
Information

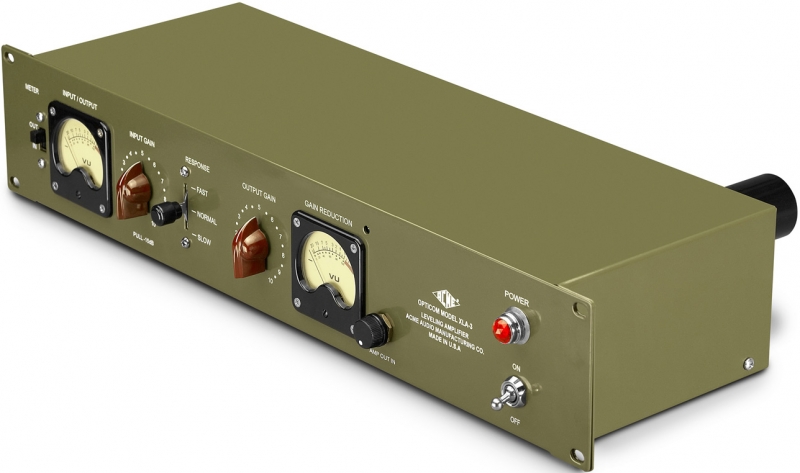

The Acme Opticom XLA-3 is an optical audio limiter built to exacting military-style specifications, designed to produce a full range of non-linear, dynamic audio effects.


The ACME Audio Opticom xla-3 is an all-tube optical limiter inspired by the classic Teletronix LA2A. Loving the la2a's smooth natural compression characteristics but seeking to improve upon its single compression speed inspired us to develop the xla-3. The heart of the XLA-3 is a unique triple optoelectronic circuit that combines the best characteristics of 3 separate compression curves into a single unit. The result: a high-speed optical limiter with tones that range from 'clean' to 'harmonically rich' to 'dirty'.
Features
  • All tube circuitry
  • High-speed cadmium-selenide (CdSe) photocells
  • Custom Bakelite analog control knobs
  • Full-sized backlit panel meters
  • 15db switchable input pad
  • Hand-wired 2 stage bypass switch
  • Triple optoelectronic circuit
  • Cinemag input transformer
  • IEC power connector
  • 115/230V AC Mains
  • Neutrik XLR input and output connectors
  • Stereo link connector
  • Micalex tube sockets
  • Specifications
  • Frequency response: 20hz-20khz +/- 1.4db
  • Distortion: yes.
  • Gain reduction: 29 db maximum
  • Make-up gain: 34 db.

  • Dimensions:
  • width: standard 19 rack mount.
  • height: standard 2u, 3.5 rack mount.
  • depth: 8.75 from front panel.
  • Weight:
  • 10.5 lbs.
  • 4.8 kgs.
  • Power requirements / consumption:
  • voltage requirement: 115/230 volts / 60 hz.
  • current draw: 265 ma.
  • power consumption: 32/64 w.
