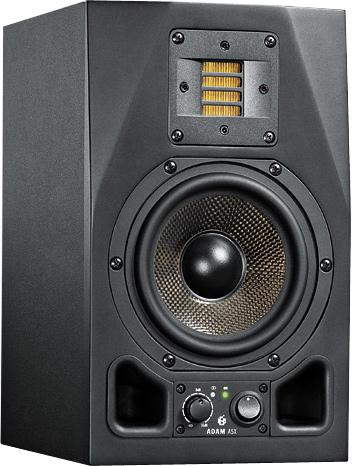

ADAM A5X

The Adam A5X is popular among professionals working in television, studios and remote broadcast vans. Its acoustic qualities give you a clear picture of your mix.

Like all models of the AX-Series, the A5X is equipped with ADAM's proprietary X-ART tweeter. One 5.5" bass/midrange woofer works below 2.5kHz and is driven by a 1.5" voice coil and a powerful 50 Watt PWM amplifier. Its acoustic qualities give you a clear picture of the smallest changes in your mix and the sonic results. Despite all that it does, the A5X is not fatiguing in long studio sessions.

Stereolink
The 'Stereolink' is a useful feature for desktop DAWs. Two additional input and output jacks for the second stereo channel allow you to control the volume for both monitors using the volume control of only one loudspeaker. The volume control of the other monitor only affects its own volume in order to easily compensate for differences in listening distance. Unlike the typical master-slave configuration, each A5X monitor is fully equipped and can function either as a master or a slave unit.
Specifications
Mid-Woofer
Number: 1
Basket Ø: 5.5" (145 mm)
Voice coil Ø: 1.5" (32 mm)
Cone material: Carbon/Rohacell/Glass Fiber
Tweeter
Number: 1
Type: X-ART
Diaphragm area: 4 inch² (2420 mm²)
Equiv. Diaphragm Ø: 2" (56 mm)
Velocity transform ratio: 4:1
Diaphragm weight: 0.17 g
Built-in Amplifiers
Mid-Woofer: 1
Type: PWM
Amp. power RMS / music: 50 W / 75 W
Tweeter: 1
Type: A/B
Amp. power RMS / music: 50 W / 75 W
Control panel
Input Sensitivity: - to +14 dB
High Shelf EQ: > 5 kHz ±6 dB
Low Shelf EQ: < 300 Hz ±6 dB
Tweeter gain: ±4 dB
Input connectors
Analog: XLR / RCA
General data
Frequency response: 50 Hz - 50 kHz
THD 90dB/1m > 100 Hz: 0.6 %
Max SPL with sine wave acoustic 100Hz to 3kHz at 1m: 102 dB
Max SPL per pair at 1m: 110 dB
Crossover frequencie: 2500 Hz
Input impedance: 30 KOhm
Weight: 14.6 lb (6,6 kg)
Magnetically shielded: No
Height x Width x Depth: 11" (280 mm) x 6.5" (170 mm) x 8.5" (220 mm)
Warranty: 5 Years
Delivery contents
Cinch-cable, Power cord, Manual
Reviews
Price *

$749.95
Free shipping in Canada. Conditions
Additional information
For more information about the A5X, please visit the website of ADAM
