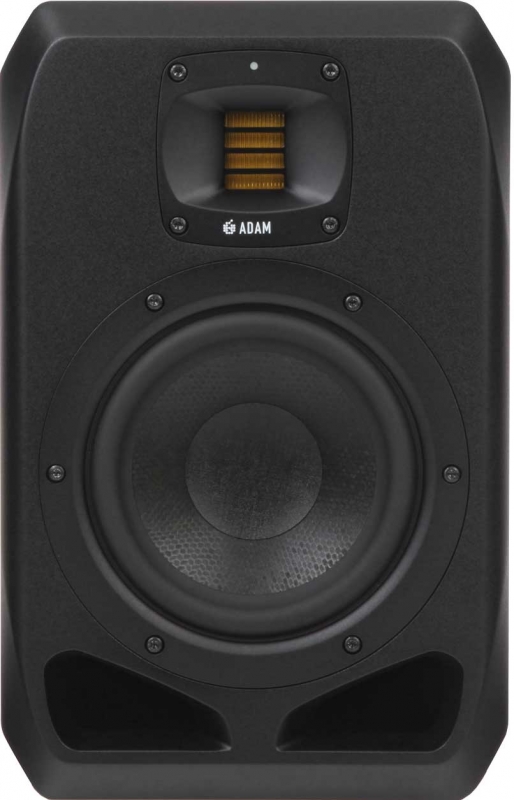

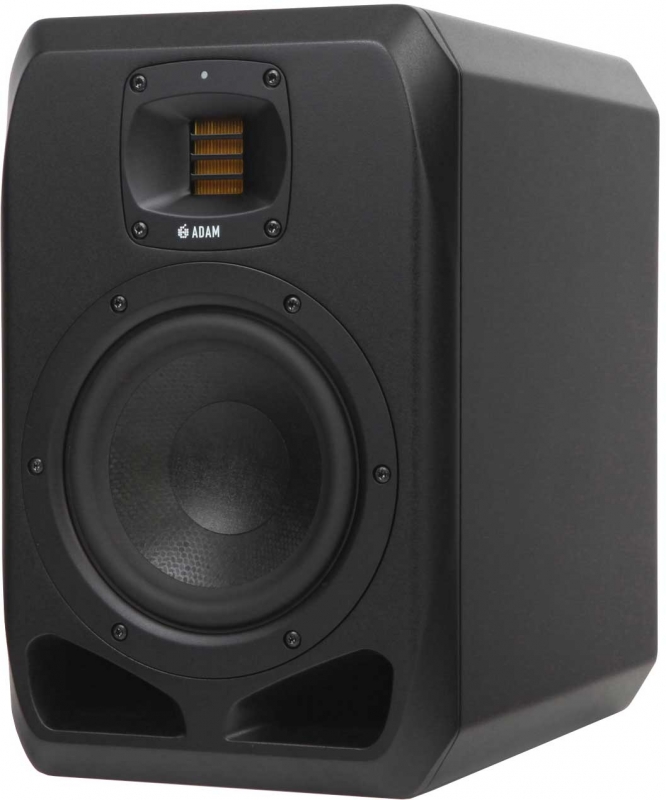

ADAM S2V

The Adam S2V is a classic two-way nearfield monitor designed for use in small-to-medium-sized control rooms

The 7-inch bass driver, newly created from the ground up for the S Series, covers frequencies ranging from 35 Hz to 3 kHz and delivers a powerful, distortion-free low-end with a wide dynamic range. The carefully refined S-ART tweeter, handbuilt as ever at the ADAM Audio factory in Berlin, works seamlessly in tandem with the newly developed HPS waveguide, creating absolutely precise imaging within a generously proportioned sweet spot.

The S2V's compact dimensions belie its impressive power. A 300 W Class D amplifier drives the woofer while a 50 W Class A/B unit handles the S-ART tweeter; the combined output produces SPLs of up to 120dB per pair.

The S Series' custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers' DSP functions via a software front-end.

With its highly accurate frequency response and balanced, razor-sharp imaging, the S2V allows users to pinpoint even the most subtle audio details, making it an ideal choice for use in demanding studio environments.
Specifications
Woofer
Number: 1
Basket Ø: 7" (178 mm)
Voice Coil Ø: 1.5" (39 mm)
Cone Material: HexaCone

Tweeter
Number: 1
Type: S-ART
Diaphragm Area: 4 inch² (2420 mm²)
Equiv. Diaphragm Ø: 2" (56 mm)
Velocity Transform Ratio: 4:1
Diaphragm Weight: 0.17 g
Waveguide: HPS

Built-in Amplifiers
Number: 2
Woofer: 1
Type: PWM
Amp. Power RMS: 300 W
Tweeter: 1
Type: A/B
Amp. Power RMS: 50 W

Control Options
Input Sensivity: Adjustable
Parametric EQs: 6
Room Compensation High-Shelf EQ: 1
Room Compensation Low-Shelf EQ: 1
Preset Memories: 5
Delay: 0 ms to 5 ms

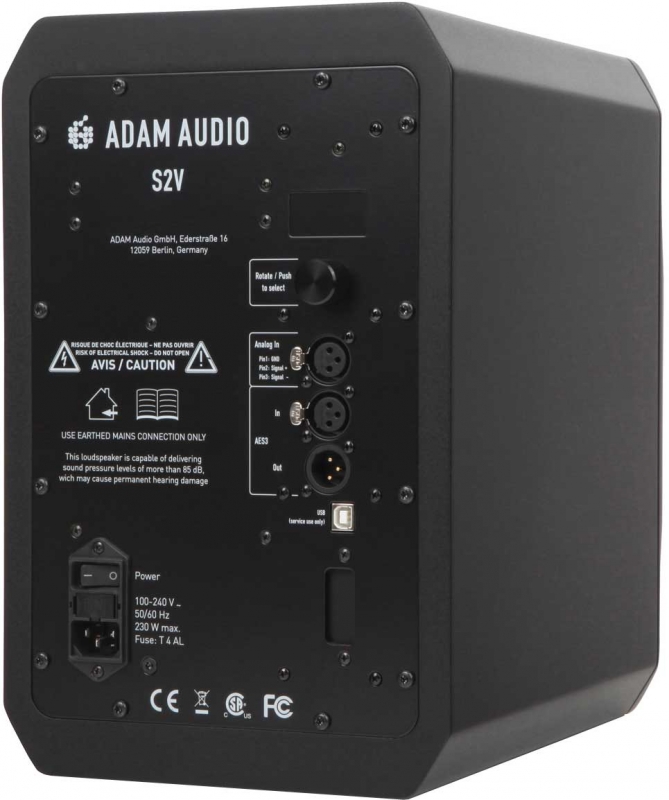

Input Connectors
Analog: XLR
Input Impedance: 48 kOhm
Max. Input Level: +24 dBu
Digital: AES3

General Data
Panel: Rear
Frequency Response: 35 Hz - 50 kHz
THD > 100 Hz: 0.4 %
Max. SPL per pair at 1 m: 120 dB
Crossover Frequencies: 3 kHz
Weight: 24.2 lb (11.0 kg)
Height x Width x Depth: 13,6" (346 mm) x 8,7" (222 mm) x 13,3" (338 mm )
Delivery Contents: Power cord, Manual
Reviews
Price

$2395.00
Free shipping in Canada. Conditions
Additional information
For more information about the S2V, please visit the website of ADAM
