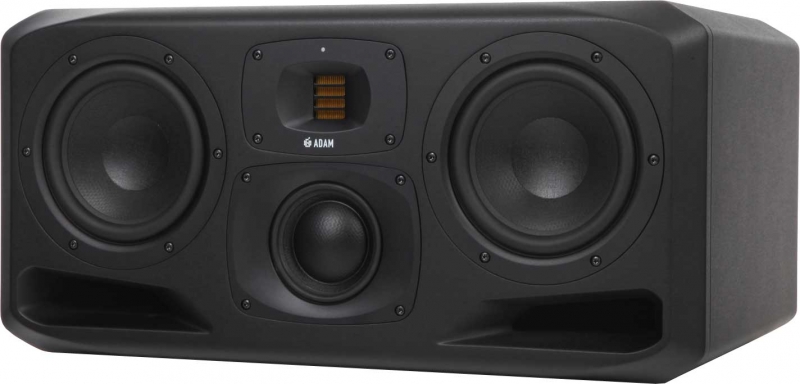

ADAM S3H

The S3H builds on the successes of ADAM Audio's most popular studio monitors, the S3A and S3X-H. Like its predecessors, sets new standards in terms of technical innovation & design

The dual 7-inch bass drivers, each powered by separate 500 W Class D amplifiers, offer flawless reproduction of frequencies all the way down to 32 Hz. ADAM Audio's newly developed DCH, a 4-inch hybrid dome/cone mid-range driver, is powered by a 300 W Class D amplifier and handles audio above 250 Hz and below 3 kHz, its leading-edge hybrid design offering the sonic advantages of both cone and soft-dome drivers in a single, one-piece unit. Frequencies above 3 kHz are routed to the innovative combination of the S-ART treble driver (each handmade at ADAM Audio's Berlin factory), the new precision HPS waveguide, and a 50 W Class A/B amplifier. The result of all this innovation is a beautifully transparent three-dimensional soundscape, with an extensive sweet spot.

The S Series' custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. A unique feature of the S3H's DSP options is a built-in factory EQ preset that emulates the response of ADAM Audio's legendary S3A monitor. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers' DSP functions via a software front-end.

With its massively powerful amplification and three-way design (optimally configured for use horizontally), the S3H was conceived as a midfield monitor, but can be employed equally well in more compact listening environments. As with all ADAM Audio designs, the sound is punchy but musical, with crystal-clear reproduction of the all-important mid-range.

The S3H's wide-ranging frequency response, its power amps' instantly available, plentiful headroom, and the lack of need for additional subwoofers should appeal to any audio professional looking for a stand-alone, full-frequency active solution for their recording studio, one which provides equally detailed audio information at any volume setting, loud or quiet. Whatever your preferred output level, the S3H's vibrant authenticity is a spur to creativity for producers, engineers and musicians everywhere, and its sound remains remarkably unfatiguing, even when working uninterrupted for extended periods.
Features
  • German Handmade Precision S-ART Tweeter with HPS Waveguide
  • 4" Dome / Cone Hybrid (Carbon Composite)
  • 2 x 7" Woofer (Hexacone)
  • Amp. Power RMS: 1350 W
  • Frequency Response: 32 Hz - 50 kHz
  • Max. SPL Per Pair at 1 m: 126 dB
  • AES3 Digital Inputs And Various Expansion Options
  • Specifications
    Woofer
    Number: 2
    Basket Ø: 7" (178 mm)
    Voice Coil Ø: 1.5" (39 mm)
    Cone Material: HexaCone

    Midrange
    Number: 1
    Type: Dome / Cone Hybrid
    Basket Ø: 4" (100 mm)
    Voice Coil Ø: 2.4" (60 mm)
    Cone Material: Carbon Composite

    Tweeter
    Number: 1
    Type: S-ART
    Diaphragm Area: 4 inch² (2420 mm²)
    Equiv. Diaphragm Ø: 2" (56 mm)
    Velocity Transform Ratio: 4:1
    Diaphragm Weight: 0.17 g
    Waveguide: HPS

    Built-in Amplifiers
    Number: 4
    Woofer: 2
    Type: PWM
    Amp. Power RMS: 500 W
    Midrange: 1
    Type: PWM
    Amp. Power RMS: 300 W
    Tweeter: 1
    Type: A/B
    Amp. Power RMS: 50 W

    Control Options
    Input Sensivity: Adjustable
    Parametric EQs: 6
    Room Compensation High-Shelf EQ: 1
    Room Compensation Low-Shelf EQ: 1
    Preset Memories: 5
    Delay: 0 ms to 5 ms

    Input Connectors
    Analog: XLR
    Input Impedance: 48 kOhm
    Max. Input Level: +24 dBu
    Digital: AES3

    General Data

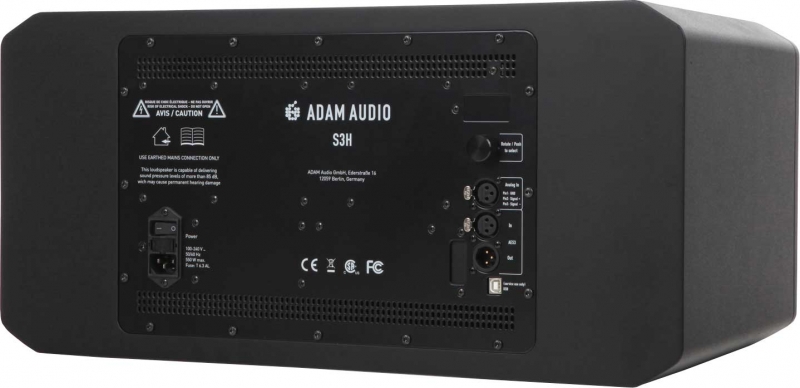

    Panel: Rear
    Frequency Response: 32 Hz - 50 kHz
    THD > 100 Hz: 0.4 %
    Input Sensitivity (for 90 dB SPL at 1m): -5 dBV
    Max. SPL per pair at 1 m: 126 dB
    Crossover Frequencies: 250 Hz / 3 kHz
    Weight: 58.6 lb (26.6 kg)
    Height x Width x Depth: 11.0" (280 mm ) x 23.0" (585 mm) x 15.0" (380 mm )
    Delivery Contents: Power cord, Manual
    Reviews
    Price

    $5495.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the S3H, please visit the website of ADAM
