ADAM Audio subwoofers. Achieving absolute accuracy and an authentic natural sound in the process of music reproduction. The Sub12 is a powerful subwoofer.
This means combining exceptional bass power with precision and clarity in every subwoofer. These elements are the perfect partners to complement the highly acclaimed clarity and transparency of ADAM monitors in the lower and lowest frequencies. All subwoofers feature both balanced (XLR) and unbalanced (RCA) input/output connectors and comprehensive control options that allow for adapting to different room acoustics and requirements.

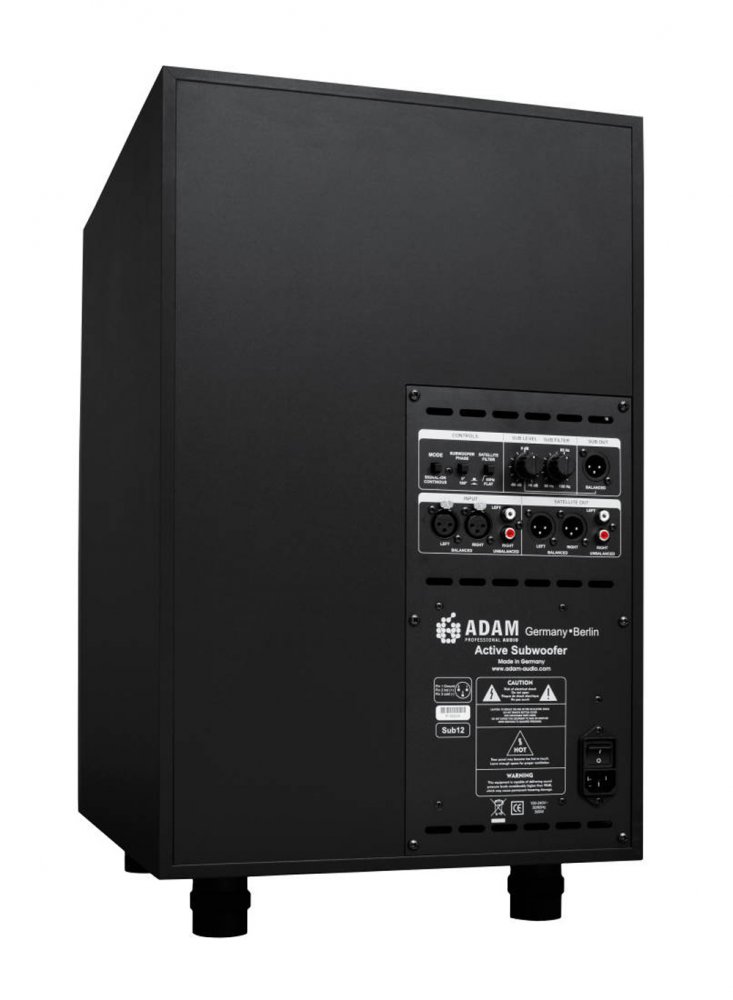

Panel / Controls
All subwoofers feature a level control (-60dB to +6dB), phase switch (180°) and a variable upper frequency control (50-150Hz). For the satellite outputs, an 85Hz high pass filter can be switched in to block frequencies below 85Hz so satellite speakers can meet the Dolby® recommendations for theater sound and also to relieve the satellites from the lower frequencies. In addition, you can either switch on/off the subwoofer manually or use the option of automatically powering up the subwoofer whenever it receives a signal (signal-on/ continuous').

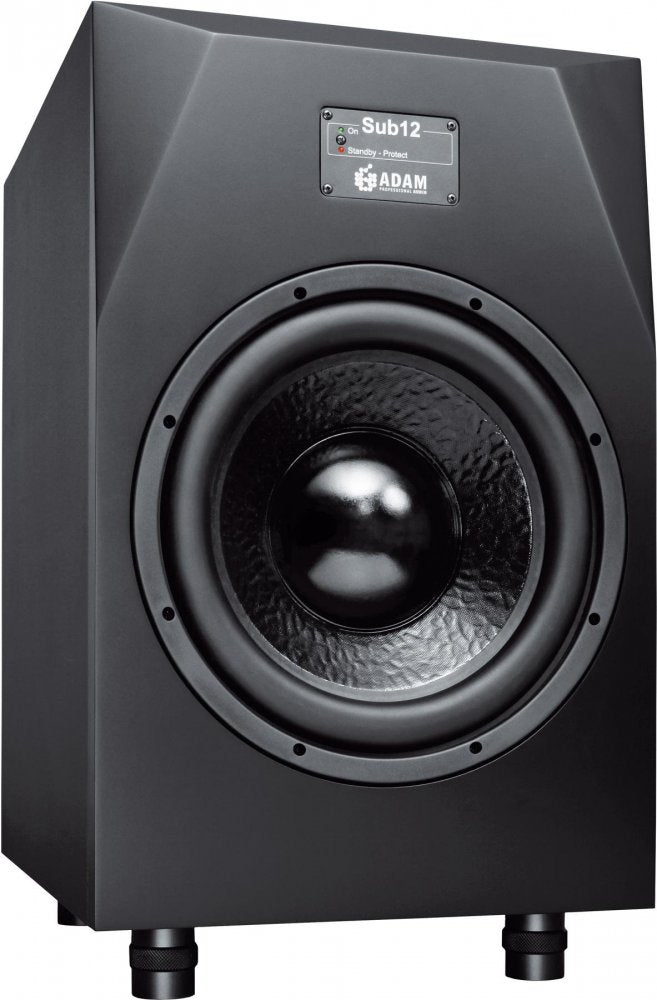

The Sub12 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 22Hz.
A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.
The Sub12 subwoofer provides a precise combination of low cutoff frequency (-3dB at 22Hz) and an undistorted high sound pressure level (115dB SPL at 1m).
Basket Ø: 12" (310 mm)
Voice coil Ø: 2" (50 mm)
Cone material: Paper Built-in Amplifiers
Amp. power RMS / music: 200 W / 300 W Input connectors
Analog: XLR / RCA General data
Frequency response: 22 Hz - 150 Hz
THD > 60 Hz: 1 %
Peak SPL max at 1m: 115 dB
Crossover frequencies: 50 - 150 Hz
Input impedance: 10 KOhm
Weight 57.3 lb (26 kg)
Height x Width x Depth: 23.5" (600 mm) x 14" (360 mm) x 17.5" (450 mm) Delivery contents
Power cord, Manual
