UPC/EAN #652401977612     MPN #TDI

$395.00

Free shipping in Canada. Conditions

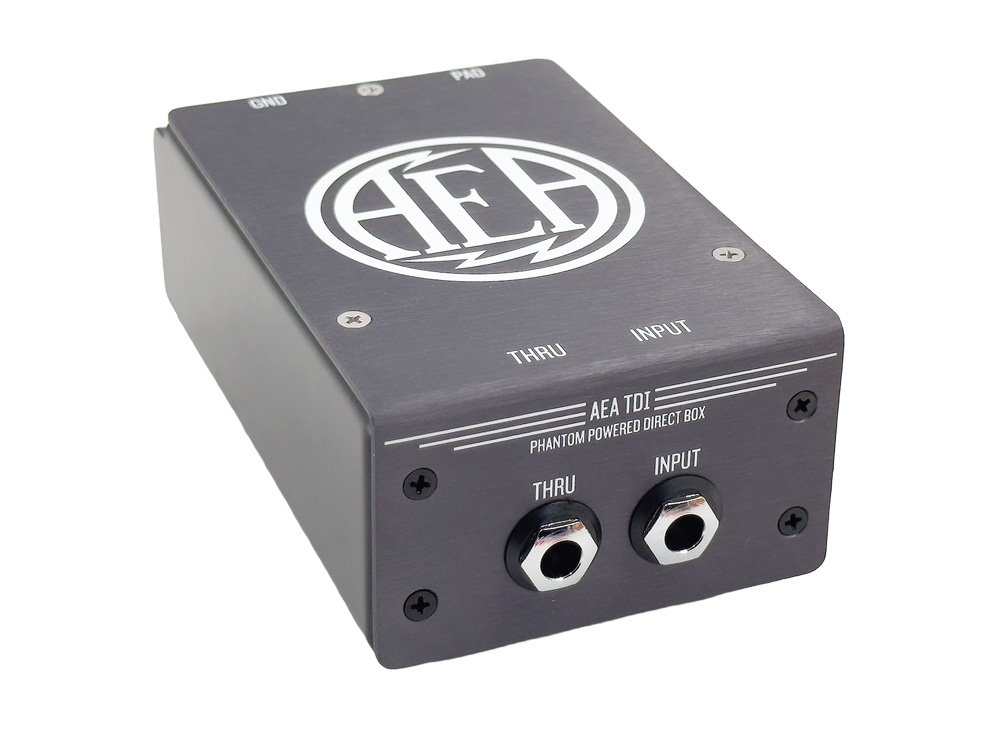

Phantom-Powered-Direct-Box



With a proprietary circuit design by Fred Forssell and a superclean Lehle step-down transformer, the ultra-transparent TDI can capture outstanding sonic performances with minimal distortion, noise interference, and signal loss from long cable runs.
  • Super clean and musical circuit design
  • Compact, road-ready design with rugged durability
  • 20 dB pad, ground lift switch, and paralleled throughput
  • Made in the U.S.A.
  • Noise Floor (22 Hz - 22 kHz, unweighted): Better than -114 dBu
    Frequency Response: -0.5 dB: <10 Hz - 50 kHz, -3 dB: <10 Hz - 120 kHz
    THD+N: (22 Hz - 22 kHz): 1 kHz, 0 dBu input: 0.0020%
    Input Impedance: Instrument: 10 M?, With Pad: 55 k?

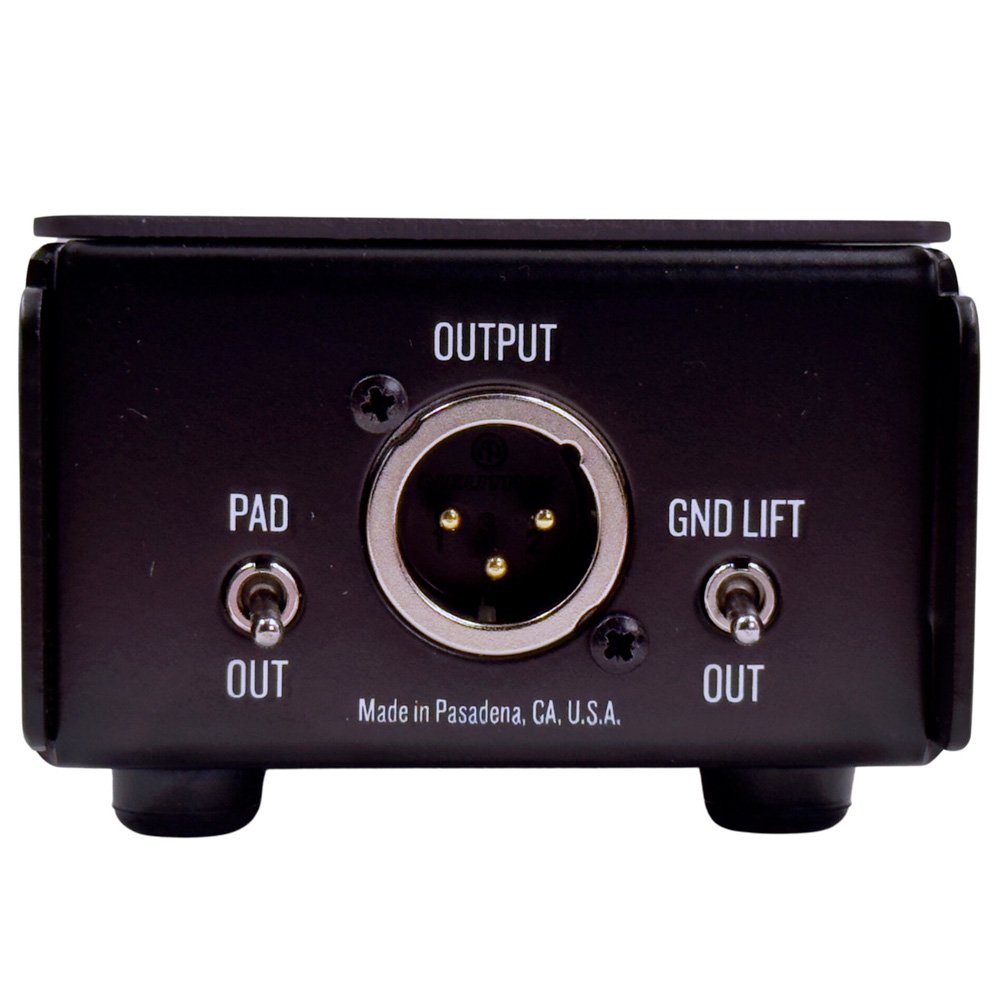

    Balanced XLR Output
    Output Impedance: <50 ? balanced output
    Output level (pad out): Input level minus 20 dB
    Output level (pad in): Input level minus 40 dB
    Pad: -20 dB
    Power Consumption: Phantom Power, +48VDC, less than 8 mA
    Output XLR Polarity:
    Pin 2 high
    Dimensions: 5.1" X 3.0" X 2.0"
    Weight: 1lb 3oz (~539 g)
