The matched pairs consist of two microphones that are within 1 dB to each other in sensitivity and also within 1 dB to each other in the range of 300 Hz to 8,000 Hz of the individual frequency response when used in cardioid mode and are selected from a large quantity of individual microphones using the described criteria by using a proprietary computer program.
Using this matched pair for stereo recordings utilizing various techniques will provide for a good and stable balance without frequency-dependent shifting of the stereo panorama.

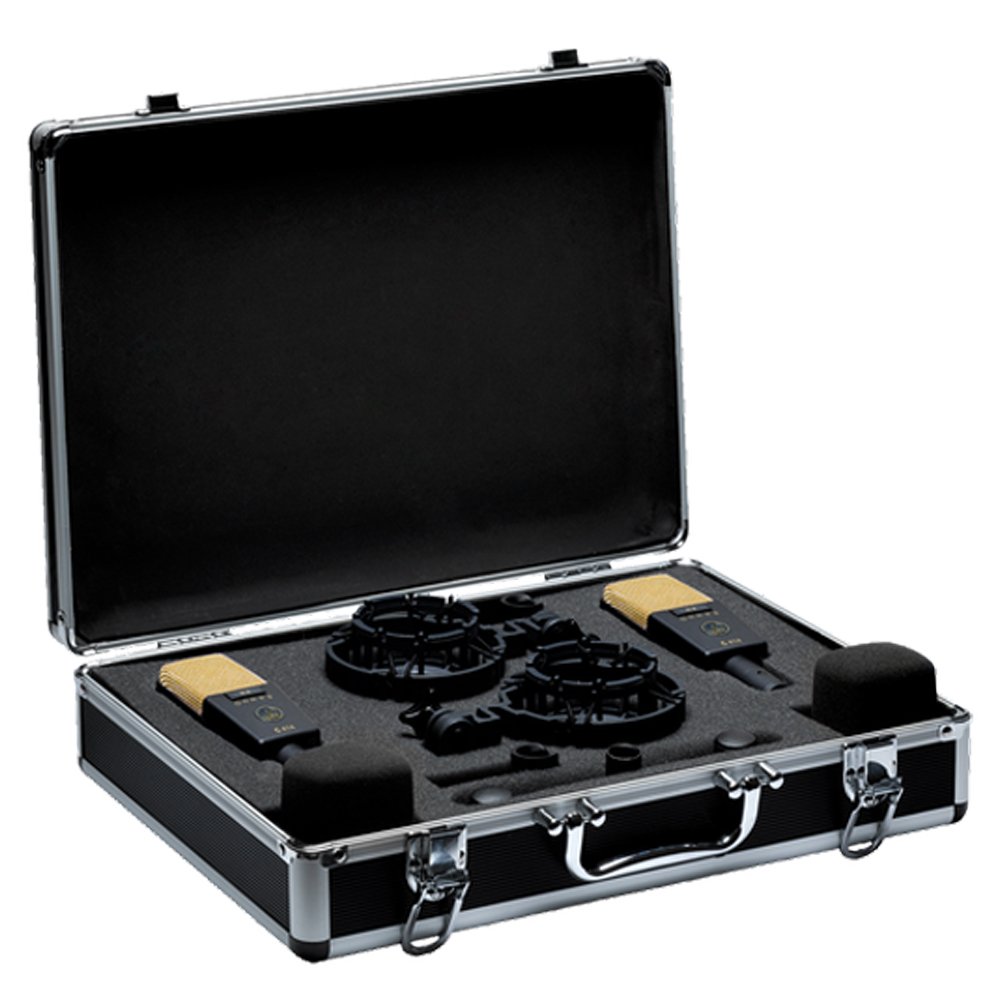

The kit includes all the standard accessories of the deluxe package (excluding the PF 80) along with a stereo bar and proof of performance charts in an attractive carrying case (large Soundtool case).
C 414 B-XL II technical specifications and details
A classic microphone with a distinctive timbre especially designed for recording of solo vocals and solo instruments.
With the introduction of the NeXt Generation C 414 B-XL models, AKG sets new benchmarks for useful features, improved technical specifications, ease of use and available accessories. All of these improvements are answers to requests from ever-demanding recording studios, broadcast stations and concert engineers, but with the basic sonic character of the legendary C 414 unaltered.
High sensitivity and extremely low self noise
Five switchable polar patterns for placement and application flexibility
Two-color LEDs provide quick visual indication of selected polar pattern and output overload
Elastic capsule suspension greatly minimizes structurally-transmitted noise from chassis vibration
H 85 professional shock mount/stand adapter, PF 80 external pop filter and W 414 X external windscreen.
Additional features:
High sound pressure level capability and wide dynamic range
Completely immune to electrostatic and electromagnetic interference from digital gear, computer monitors, etc. thanks to solid metal housing and transformerless output stage
Three switchable bass cut filters and three pre-attenuation pads with LEDs for quick visual indication
All switchable components operate in low impedance circuits for ultra-high reliability even in extremely humid conditions
Optional R 414 remote control unit (under development) offers full control of all switchable parameters via standard microphone cable and 3-pin XLR-type connectors
Type 1-inch large-diaphragm pressure gradient microphone
Polar pattern Omnidirectional, wide cardioid, cardioid, hypercardioid, figure eight
Frequency range 20 to 20,000 Hz (see frequency response traces)
Sensitivity 23 mV/Pa (-33 dBV) ± 0.5 dB
Max. SPL 200/400/800/1600 Pa = 140/146/152/158 dB SPL (0/-6/-12/-18 dB) (for 0.5% THD)
Equivalent noise level (CCIR 468-2) 20 dB (0 dB preattenuation)
Equivalent noise level 6 dB-A (0 dB preattenuation) (DIN 45 412, A-weighted)
Signal/noise ratio (A-weighted) 88 dB
Preattenuation pad -6 dB, -12 dB, -18 dB, switchable
Bass cut filter slope 12 dB/octave at 40 Hz and 80 Hz; 6 dB/octave at 160 Hz
Impedance
