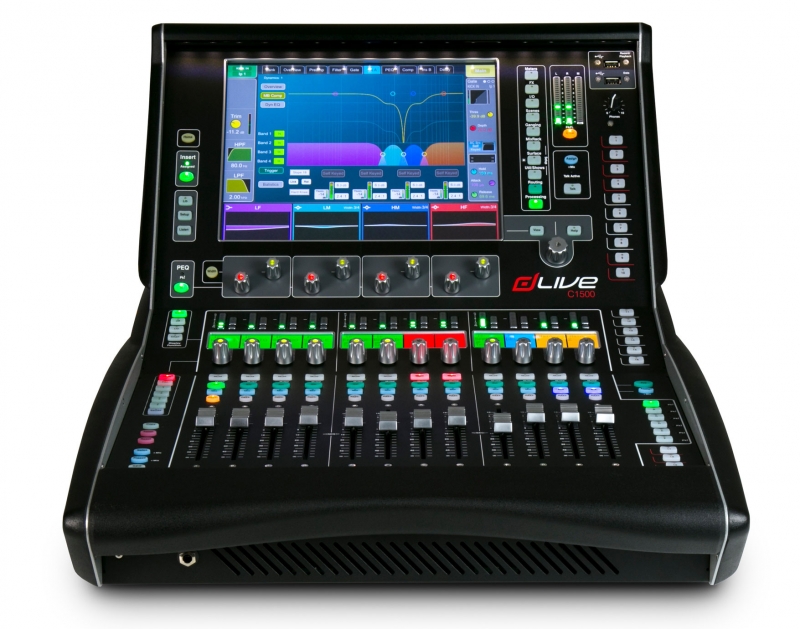

The Allen & Heat C1500 is the first rack-mountable control Surface for the dLive MixRack
Packed in a tiny footprint are 12 faders over 6 layers, built-in audio I/O, an audio networking port, a 12 capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry.
The dLive C Class makes the full power and flexibility of dLive available in an accessible, compact format, making it ideal for corporate AV, houses of worship, regional rental companies and theatres.
12 fadersFully assignable layout - 72 fader stripsHarmony UI integrates screen and wrap-around controls - 12" capacitive touchscreen
- Gesture control - pinch, swipe, drag 'n drop
- Dedicated multi-mode EQ view
- Configurable widget areas for Scenes, meters, FX and more

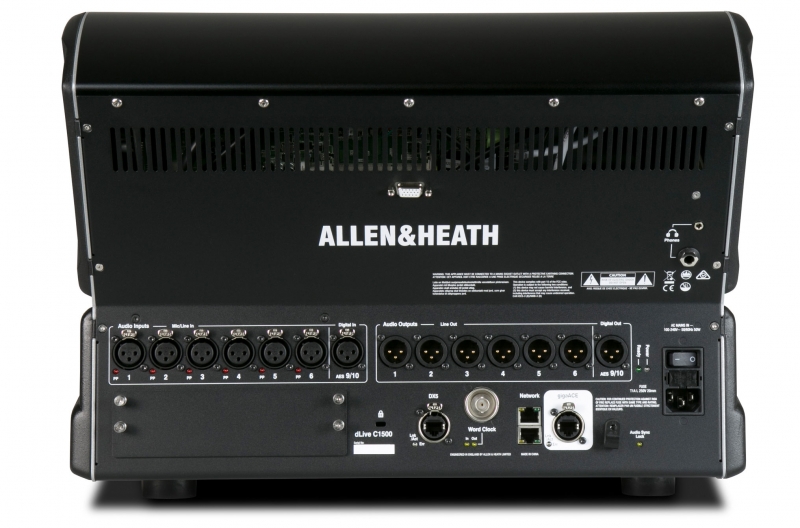

19 assignable SoftKeysEngineer's Wedge and IEM fader stripsComprehensive multipoint meteringDaylight visibilityUSB stereo recording and playback6 XLR mic/line in, 6 XLR line out1 digital st AES3 in, 1 digital st AES3 outConnection hub - GigaACE gigabit link to MixRack
- DX link for I/O expansion
- I/O Port - 128 ch 96 kHz
- 2x Network ports
- Wordclock BNC I/O
- Video output
