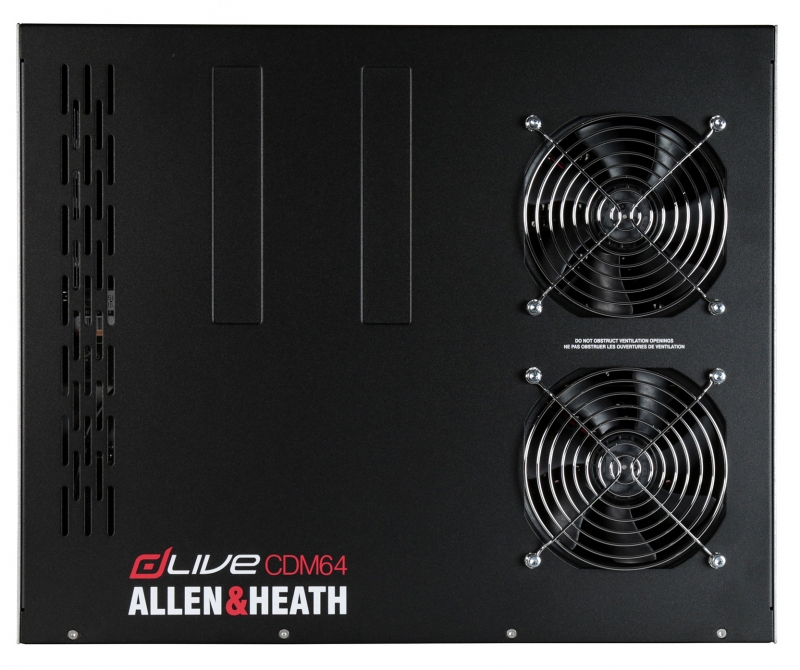

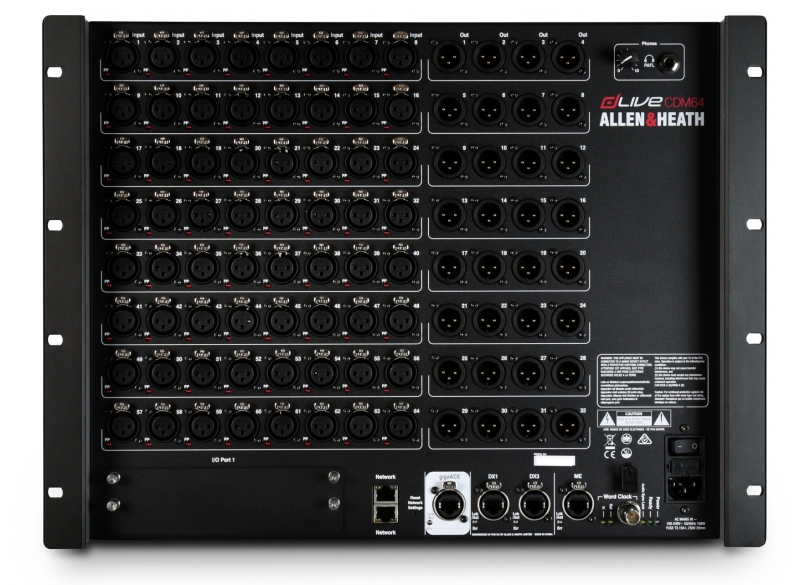

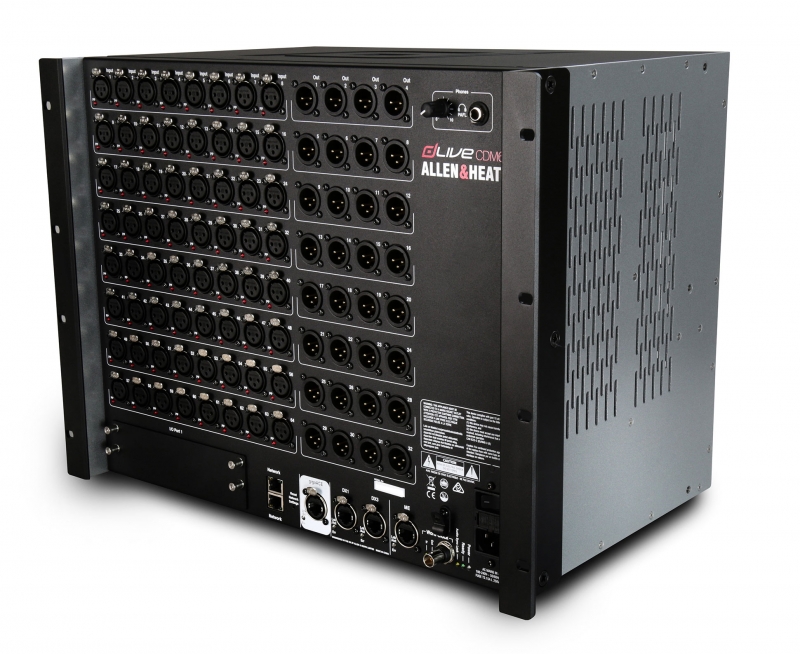

Allen & Heath dLive CDM64 MixRack
MPN #CDM64 MixRack
The CDM64 MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O, control and audio networking ports
It is typically connected to a dLive Surface, but can also be controlled at the same time as or even without a Surface using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP.
There are different sizes of dLive MixRack available. All feature the same mix engine and can work with the full 128 channels by adding DX expanders or digital sources.
The dLive C Class makes the full power and flexibility of dLive available in an accessible, compact format, making it ideal for corporate AV, houses of worship, regional rental companies and theatres.
Features
64 Mic/Line Inputs and 32 Line Outputs: Provides extensive connectivity for various audio sources and outputsXCVI 160x64 FPGA Core: Utilizes a 96kHz processing engine for high-quality audio performance128 Input Channels and 64 Mix Outputs: Offers comprehensive channel and output management for complex audio setupsConfigurable 64-Bus Architecture: Supports flexible routing and mixing configurations to suit various applications16 RackExtra FX with Dedicated Stereo Returns: Includes built-in effects processing for enhanced audio controlUltra-Low Latency of 0.7ms: Ensures real-time audio processing with minimal delayExpandable I/O Port: Supports additional connectivity options, including Dante, Waves, and MADIDedicated ME-1 Port: Allows integration with Allen & Heath's personal monitoring system for customized mixesRemote Control Capability: Can be managed via a laptop, iPad, or third-party controllers over TCP/IP, enabling flexible operation
Specifications
Inputs: 64 mic/line XLR inputs with fully recallable preamps; input sensitivity range: -60 to +15dBu; maximum input level: +30dBu (with PAD engaged)Outputs: 32 balanced XLR line outputs; nominal output level: +4dBu; maximum output level: +22dBuProcessing Core: XCVI 160x64 FPGA core operating at 96kHz sample rate; 128 input channels and 16 stereo FX returns with full processing; configurable 64-bus architecture; ultra-low latency of 0.7ms from MixRack XLR in to XLR outExpansion and Networking: One I/O port supporting 128 channels at 96kHz for audio networking; two DX links for I/O expansion; dedicated ME-1 48kHz port for personal monitoring; gigaACE gigabit link to Surface; wordclock BNC I/O; two network ports for control and third-party integrationPhysical Specifications: Dimensions: 481.6 mm (width) x 309 mm (depth) x 354 mm (height); occupies 8U of rack space; weight: 14 kg (30.9 lbs); operating temperature range: 0C to 35C (32F to 95F); mains power supply: 100-240V AC, 50-60Hz, 175W maxAdditional Features: 16 RackExtra FX slots with dedicated stereo returns; 24 DCAs; built-in signal generator and RTA; new preamp design for enhanced transparency; unique Active PAD circuit for consistent performance with various sources; flush front panel with ultra-quiet fan; reversible rack ears design for flexible installation
