Allen & Heath ME-500
MPN #ME-500
16 input mixer, 2-band EQ, limiter, 8 presets, PoE or PSU powered, USB, dual headphone outs, auto setup, compact 2.4lb design, 3.5mm and 1/4'' jacks
Allen and Heath ME-500 Personal Mixer
The ME-500 is a powerful and easy-to-use digital personal mixer designed to simplify on-stage and studio monitoring. Built for speed and clarity, it offers a walk-up-and-mix interface that musicians can use instantly without any training. With plug-and-play setup and automatic channel mapping, the ME-500 is a major time-saver for audio engineers, especially in fast-moving settings like live shows and worship services.

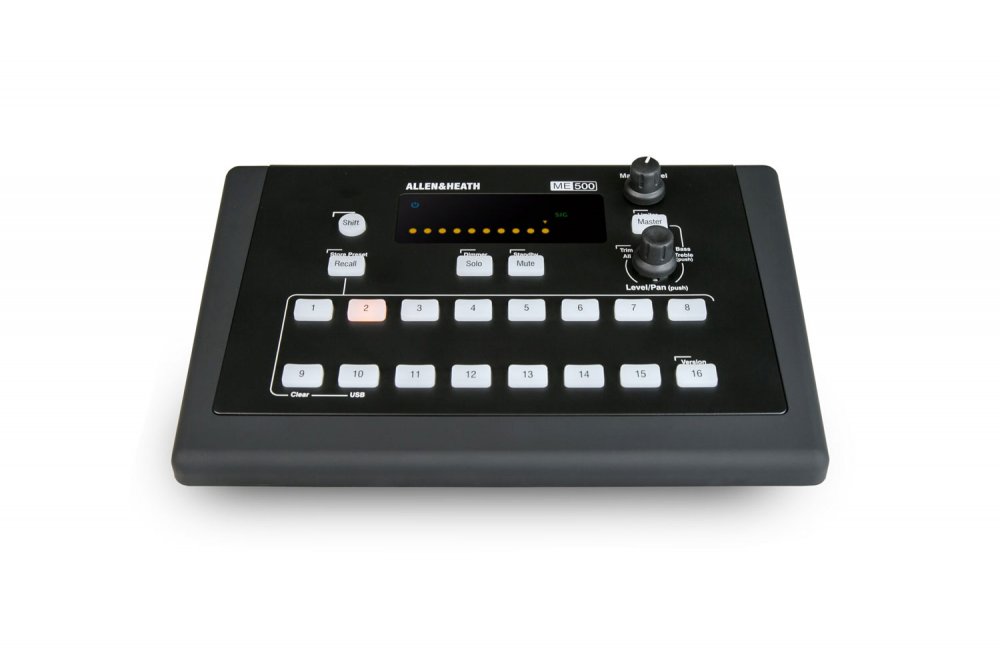

This compact unit provides control over 16 mono or stereo inputs, with dedicated level and pan adjustment for each. Its clear and tactile interface features 21 rubber buttons and a multi-function rotary control, paired with a clean display that shows level, pan, EQ, and limiter settings. Musicians can quickly dial in their mix using eight customizable presets, and a built-in two-band EQ and limiter help shape tone and protect hearing.
Built for Performance
Despite its small size-just 230 x 160 x 70 millimeters and weighing 1.1 kilograms-the ME-500 delivers powerful sound performance. It includes both 1/4 inch and 3.5 millimeter headphone outputs and is capable of driving a wide range of headphones and in-ear monitors. A built-in headphone amplifier provides loud and clear monitoring, while a 1/4 inch mono line out allows connection to additional speakers or amplifiers.
Easy Connectivity
The ME-500 connects through standard Cat5 cables using locking RJ45 connectors and can be powered via Power over Ethernet or with the included 12 volt DC power adapter. It integrates directly with Allen and Heath dLive, GLD, and Qu systems, and supports network formats like Dante, MADI, and EtherSound via the ME-U hub. It is also compatible with Aviom A-Net 16 systems.

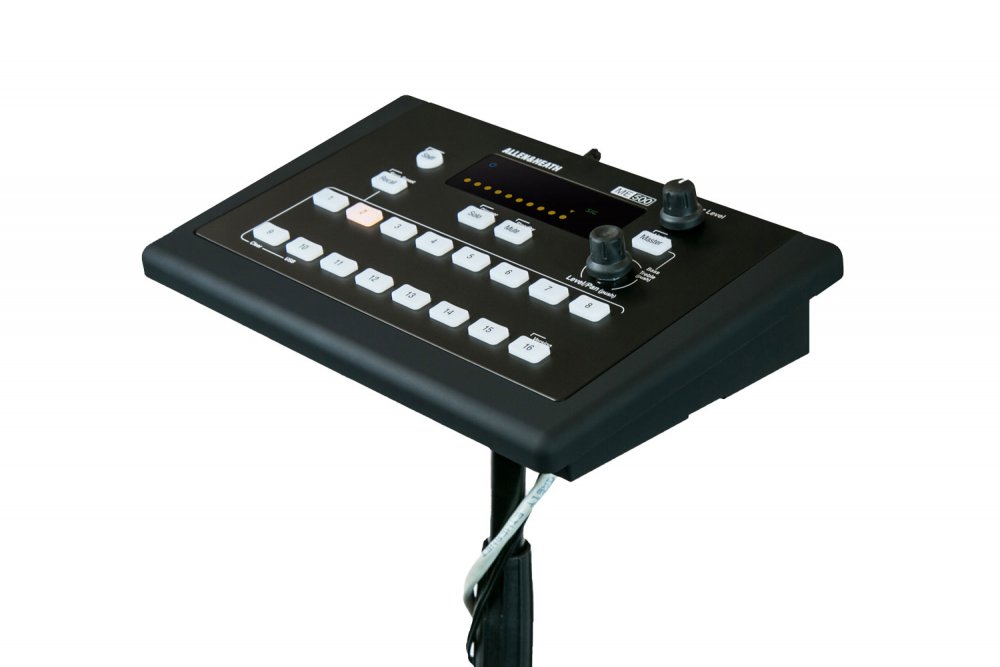

Whether mounted on a mic stand or used on a flat surface, the ME-500 offers musicians full control of their personal mix and gives audio engineers a dependable, low-maintenance solution.
Features
16 Mono or Stereo Inputs: Control up to 16 channels with dedicated level and pan for each.Plug-and-Play Setup: Automatically maps the first 16 channels-no configuration needed.2-Band Master EQ and Limiter: Customize your overall mix tone and protect your hearing.8 User Presets: Store and instantly recall levels, pan, and mute settings. Presets can be saved to USB for transfer.Solo and Mute Functions: Quickly isolate or silence individual channels for precise control.Clear, Powerful Sound: Drives both 3.5mm and 1/4'' headphones with enough power for in-ear or over-ear use.PoE or External Power Supply: Runs via Power over Ethernet or a standard PSU.Multiple System Compatibility: Works directly with Allen & Heath dLive, GLD, and Qu systems, and with ME-U hub for MADI, Dante, EtherSound, and Aviom A-Net 16.USB Port: For preset transfer and firmware updates.Line Output: 1/4'' TRS output allows connection to external amplification or speaker systems.Compact and Lightweight: Only 1.1 kg (2.4 lbs) and sized at 230 - 160 - 70 mm.Mic Stand Mountable: Fits standard mic stands via integrated 3/8" insert or optional bracket.Visual Display: Hidden-until-lit screen shows level, pan, EQ, and limiter settings.
Specifications
General Specifications
Standalone digital personal mixerReceives up to 16 mono or stereo channels over single Cat5 cablePlug-and-play setup with automatic channel mappingCompatible with Allen & Heath dLive, GLD, Qu systemsCompatible via ME-U Hub with MADI, Dante, EtherSoundAviom A-Net 16 compatibleDesigned for mic stand mounting or desktop use
Inputs and Controls
16 channel selection keysLevel and pan control per input8 user presets with USB export/import2-band master EQBuilt-in limiter adjustable from -24 dB to 0 dBMulti-function rotary encoderDedicated Mute and Solo buttonsAudio PerformanceFrequency Response 10 Hz to 20 kHz (+0/-1 dB)AD/DA Conversion 24-bit Delta-Sigma at 48 kHzResidual Output Noise -95 dBu
Output and Connectivity

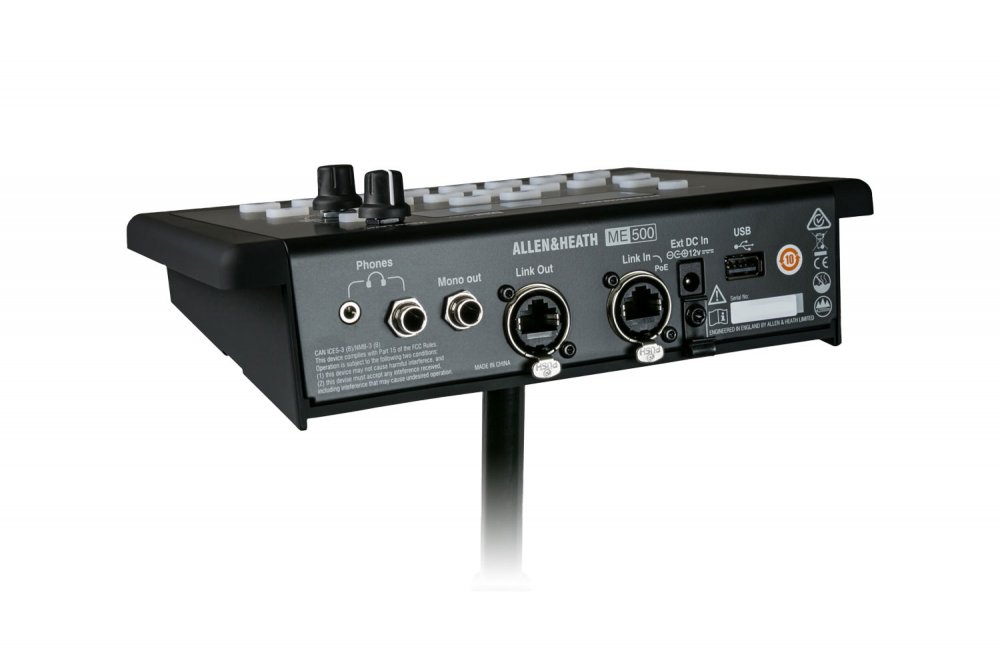

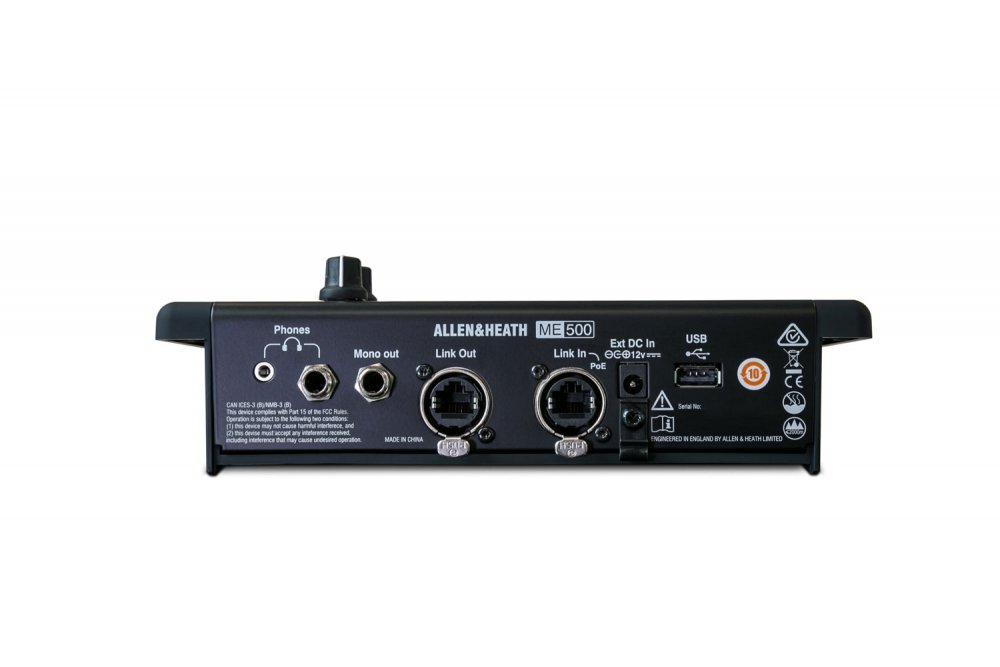

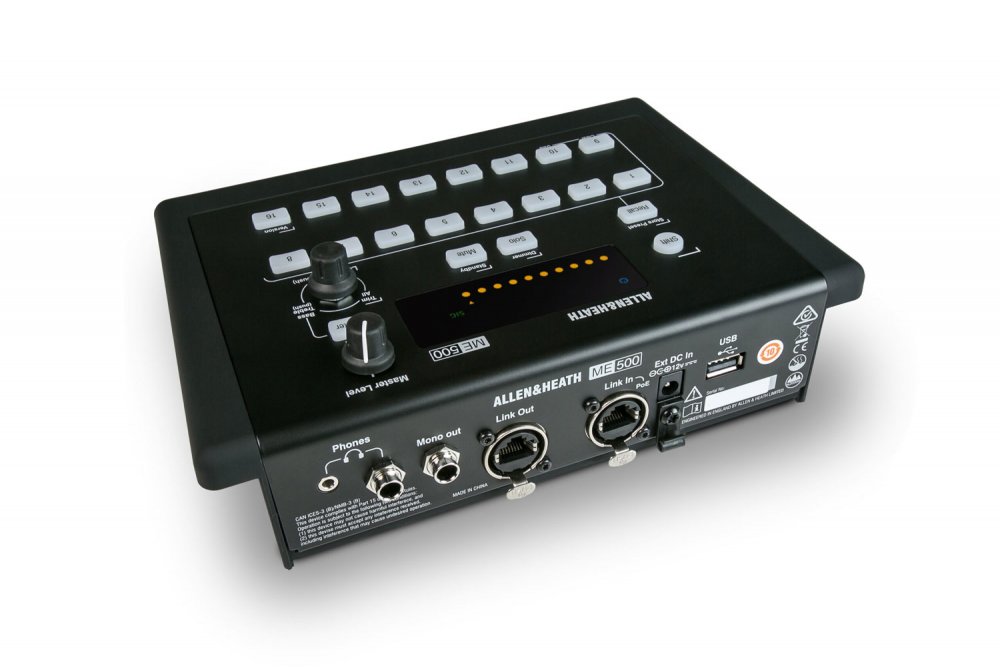

Headphone Outputs: 3.5 mm mini-jack and 1/4" TRS jackLine Output: 1/4" TRS mono jackUSB Type A port for presets and firmware updatesDual locking EtherCON RJ45 network connectors
Power and Compatibility
Powered via included 12V DC external PSU or PoE/PoE+ (IEEE 802.3af or 802.3at)Power consumption: 10 W (requires 15 W PoE source)Operating temperature range: 5 degree C to 35 degree C
Physical Dimensions
Unit Dimensions (W x D x H): 230 x 160 x 70 mm (9" x 6.3" x 2.7")Unit Weight: 1.1 kg (2.4 lbs)Boxed Dimensions (W x D x H): 290 x 350 x 170 mm (11.4" x 13.8" x 6.7")Boxed Weight: 2.5 kg (5.5 lbs)
Additional Accessories
Mic stand bracket and headphone hanger sold separately
