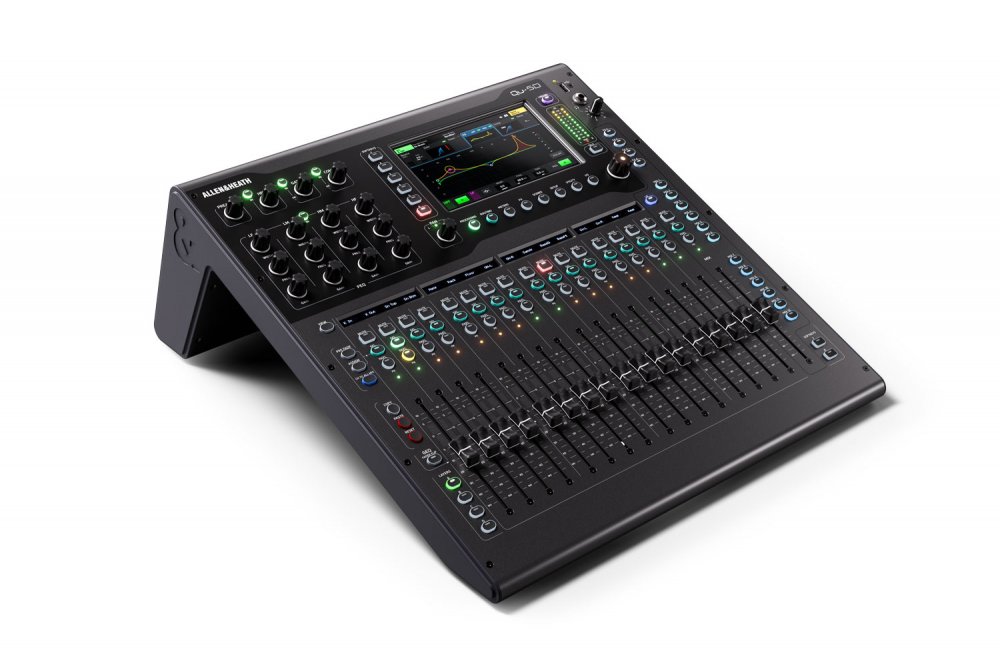

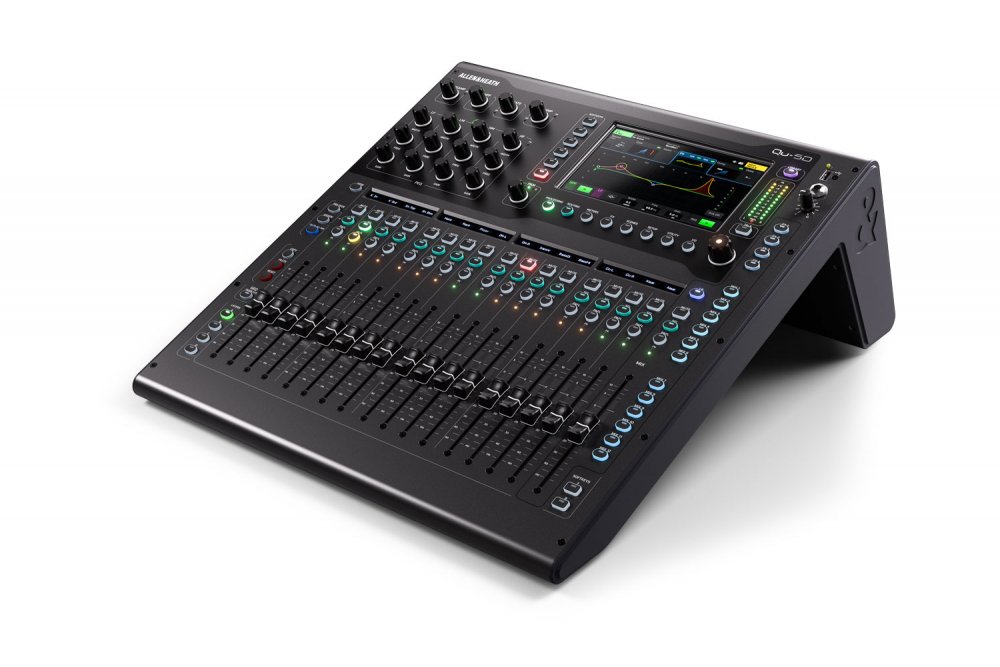

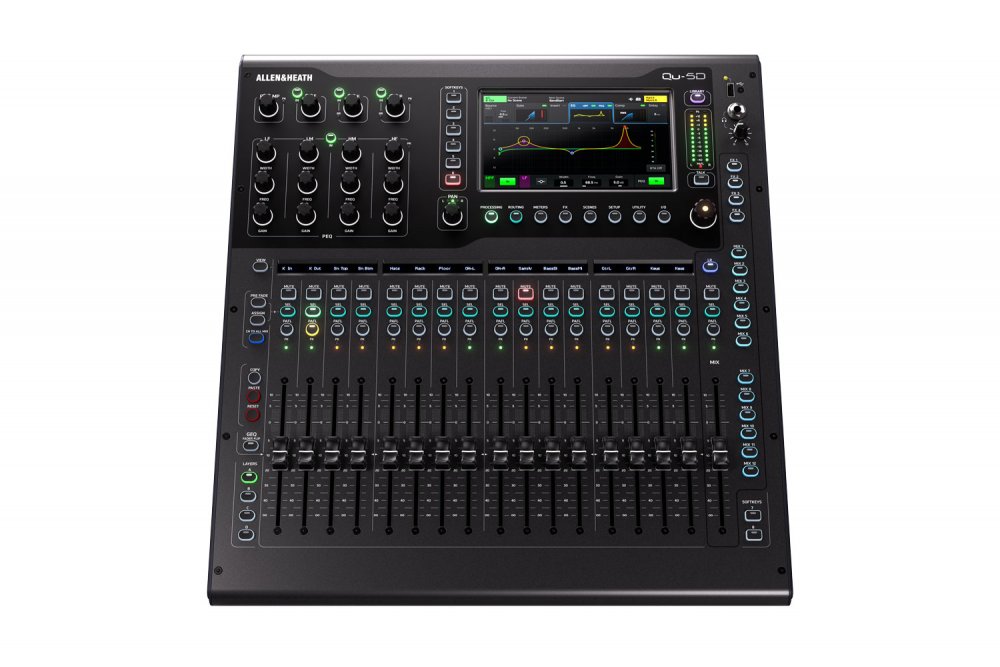

Allen & Heath QU-5D
MPN #QU-5D
$3799.00
Économisez 10%, Prix suggéré $4219.00
Compact 38in/24out 96kHz digital mixer with 16x16 Dante, 16 mic/line inputs, 12 XLR outs, USB-C and SD multitrack, DEEP Processing, 17 motorised faders.
The Allen & Heath Qu-5D takes the trusted design of the Qu-5 and supercharges it with integrated Dante connectivity, making it an ideal choice for professional audio installations and live sound environments that require seamless integration into Dante-enabled networks. It retains the full power of the 96kHz XCVI core and the compact, rack-mountable 19" form factor while expanding its flexibility through a built-in 16-16 Dante interface operating at both 48kHz and 96kHz.
Qu-5D is engineered for effortless control and pristine sound, featuring 17 motorized faders, a 7" capacitive touchscreen, and four fully customizable fader layers. Its 16 mic/line inputs, 12 XLR outputs, and extended I/O options including AES3 and stereo TRS provide ample connectivity for diverse applications. The mixer includes advanced DSP features like DEEP Processing, Automatic Mic Mixing, Feedback and Gain Assistants, and six stereo FX engines with dedicated returns. With its powerful 32x32 USB-C audio interface, SD card multitrack recording, and Dante integration, the Qu-5D is a future-ready solution for modern digital audio workflows.
Caractéristiques
Dante-Enabled for Network Integration: Includes a built-in 16-16 Dante interface at 48kHz or 96kHz for seamless integration into digital audio networks and larger system setups.Premium 96kHz Audio Engine: Powered by a high-performance XCVI core with upgraded mic preamps and 96kHz AD/DA converters for crystal-clear sound.Flexible and Customisable Mixing: 38 input channels, 24 outputs, and 4 fully configurable channel strip layers to create personalized workflows.Motorised Faders & Full Display: 17 motorised 100mm faders with each channel showing name, level, and type for quick visual reference.Enhanced Workflow Tools: Includes Gain Assistant and Feedback Assistant for fast and accurate setup. Automatic Mic Mixing (AMM) is also built-in.Multitrack Recording Options: Record and playback via USB-C (32-32), SD card (up to 32-32 at 48kHz), or stereo USB-A-perfect for any live or studio scenario.Comprehensive Connectivity: Features 16 XLR/jack combo inputs, 2 stereo line ins, 12 XLR outs, talkback mic input, AES3 digital out, and headphone output.Built-in FX and DEEP Processing: 6 internal FX engines with dedicated returns and support for DEEP Processing plug-ins from Allen & Heath's dLive system.Control On-the-Go: 7" touchscreen, 8 SoftKeys, footswitch support, and remote control apps for Windows, macOS, iOS, and Android.Ready for Rack Mounting: Compact 19" form factor with optional rack kit for installations or portable rigs.
Spécifications
General Specifications
compact digital mixer with integrated Dante networking38 input channels to mix32 mono inputs (linkable)3 stereo inputs24 output channels96kHz XCVI processing coreDEEP processing ready for advanced channel strip models7 inch capacitive touchscreen17 motorised 100mm faders4 customisable fader layers8 assignable SoftKeysconfigurable footswitch input (single or dual)updated workflow with improved channel displays and navigation
Input and Output I/O

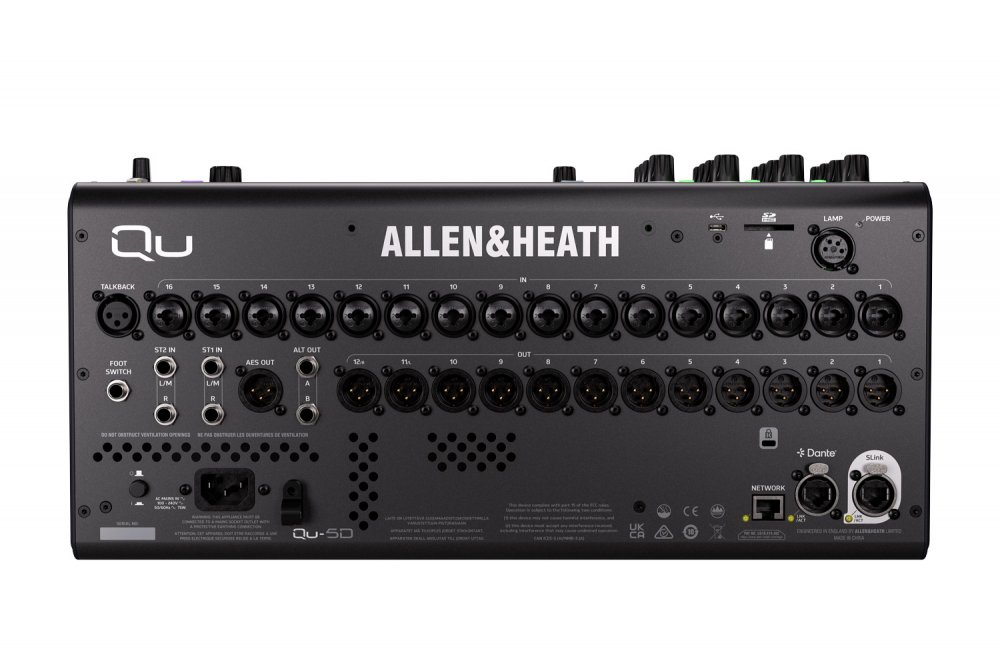

16 XLR/TRS combi mic/line inputs2 stereo line inputs (each with 2x TRS)12 XLR output sockets2 TRS output sockets1 XLR AES3 stereo digital output1 XLR talkback mic inputstereo headphone output12V lamp socket
Mixing Architecture
12 mix outputs6 mono or linkable aux/group6 stereo aux/group4 mono or linkable matrix outputsstereo main LR output6 internal FX engines with dedicated stereo FX returns
Digital Networking and Expansion
built-in 16-16 Dante interface48kHz or 96kHz sample ratededicated locking EtherCon Dante port128-128 SLink port for I/O expansion and remote audiofull patching flexibility across all inputs and outputs
Recording and Playback Capabilities
32-32 USB-C multitrack audio interfaceUSB-A stereo record/playback and data transferSD card multitrack audio support16-16 at 96kHz32-32 at 48kHz
Assistive Tools and Processing
DEEP channel processing supportGain Assistant for automatic input gain calibrationFeedback Assistant with up to 16 filters per outputintegrated 32-channel Automatic Mic Mixer (AMM) with no added latency
Remote Control
compatible with free control apps for Windows, MacOS, iOS, and Androidfull remote access to mix, processing, routing, and recording
Build and Mounting
retains compact Qu series form factoroptional 19 inch rackmount kit availableredesigned user interface for enhanced usabilitychromatic channel meters for quick level monitoringhardware upgrades including improved preamps and converters for pristine 96kHz audio fidelity
