Allen & Heath QU-6D

MPN #QU-6D

$4999.00

Économisez 9.9%, Prix suggéré $5549.00

Financement disponible

Soyez le premier à écrire une évaluation

Livraison gratuite au Canada. Conditions

Compact 38in24out 96kHz mixer with 24 combi micline inputs, 16 XLR outs, 16x16 Dante, 25 motorised faders, USB multitrack, DEEP Processing, AMM, FX.

The Allen & Heath Qu-6D is a cutting-edge digital mixer that merges top-tier sonic performance with advanced networking capabilities, ideal for demanding live sound, installation, and studio environments. At the heart of the Qu-6D lies a 96kHz XCVI processing core, delivering ultra-low latency, pristine audio quality, and access to DEEP processing tools including acclaimed plug-in style dynamics and FX from Allen & Heath's flagship dLive series. Designed to handle complex mixing tasks with ease, the Qu-6D provides 38 inputs to mix and a versatile architecture that includes 12 configurable mixes and 4 matrix outputs.

What sets the Qu-6D apart is its built-in 16-16 Dante interface, allowing seamless integration into Dante-enabled systems at either 48kHz or 96kHz. The console features 25 motorised 100mm faders, 24 combo mic/line inputs, and 16 XLR outputs, supporting sophisticated I/O routing via a 128-128 SLink port. Its intuitive workflow is enhanced by a 7" capacitive touchscreen, 4 customisable fader layers, 8 assignable SoftKeys, and advanced assistive tools like Feedback Assistant and Gain Assistant. The Qu-6D also excels in multitrack capture, offering 32-32 USB-C audio interface, SD card recording/playback, and stereo USB-A support-making it a powerful all-in-one solution for professional audio control and recording.

Caractéristiques

Built-In Dante Audio Networking: Equipped with a 16-16 Dante interface (48/96kHz) for seamless integration into networked audio systems.

Expanded I/O for Larger Setups: Includes 24 mic/line combo inputs and 16 XLR outputs, offering more connectivity for complex events or installations.

High-Resolution 96kHz Audio: Powered by the XCVI processing core with enhanced mic preamps and converters for pristine sound quality.

25 Motorised Faders: Offers responsive, automated control with dedicated meters and channel displays for fast visual reference.

Customisable Workflow: Features 4 user-configurable layers, 8 assignable SoftKeys, and a redesigned 7" touchscreen interface for intuitive operation.

Multitrack Recording & Playback: Record and play back 32 tracks via USB-C, or use the SD card slot and USB-A port for flexible file handling.

Integrated Effects & Processing: Includes 6 internal FX engines with stereo returns and supports Allen & Heath DEEP Processing add-ons.

Assistive Setup Tools: Built-in Gain Assistant and Feedback Assistant help speed up configuration and prevent audio issues.

Automatic Mic Mixing (AMM): Fully integrated 32-channel AMM makes the Qu-6D ideal for speech-focused events like panels or conferences.

Flexible Expansion & Control: Includes an AES digital output, SLink expansion port, headphone output, and compatibility with free remote control apps.

Spécifications

General Specifications

model: Qu 6D

digital mixer with 96kHz XCVI FPGA processing core

DEEP processing ready

total input channels to mix: 38

32 mono (linkable)

3 stereo

total output buses: 24

redesigned capacitive 7 inch touchscreen

25 motorised 100mm faders

4 fully customisable channel strip layers

8 assignable SoftKeys

dual footswitch input (single or dual mode)

chromatic LED channel meter per fader

Audio Performance

updated mic preamps

high performance 96kHz AD/DA conversion

low latency, high headroom signal path

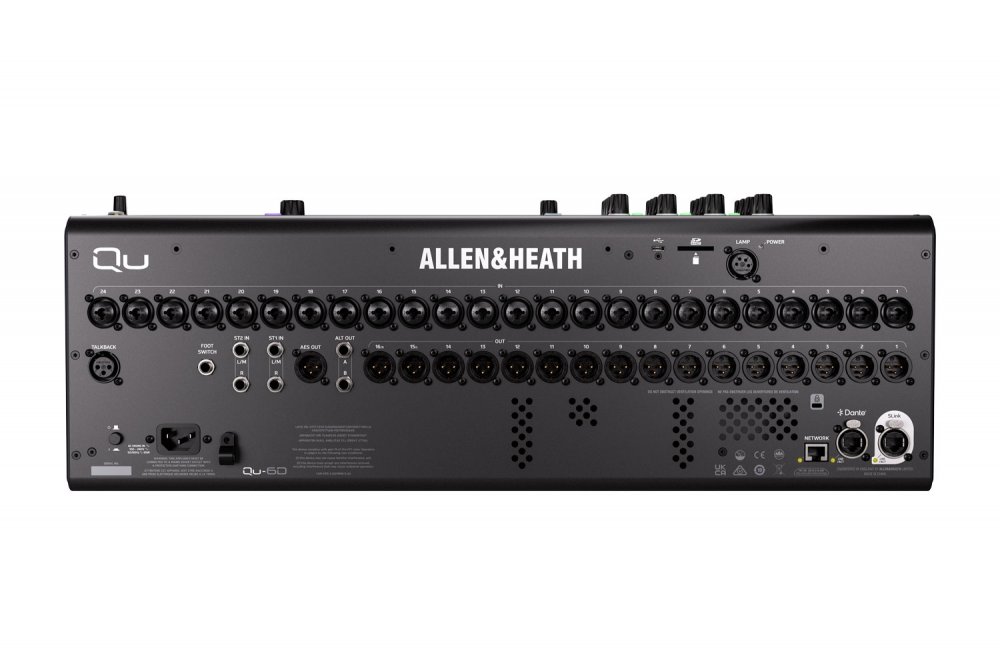

Input and Output I/O

24 XLR/TRS combi mic/line input sockets

2 stereo line input pairs (each 2x TRS)

16 XLR output sockets

2 TRS output sockets

1 XLR AES3 stereo digital output

1 XLR talkback mic input

stereo headphone output

12V lamp socket

Mix Architecture

12 mix outputs

6 mono or linkable aux/group

6 stereo aux/group

4 mono or linkable matrix outputs

stereo main LR output

6 internal multi FX engines with dedicated stereo returns

Digital Expansion and Dante Networking

built-in Dante interface

16x16 channels

supports 48kHz or 96kHz operation

locking EtherCon Dante port

128x128 SLink intelligent port for remote audio and I/O expansion

Recording and Playback Capabilities

USB-C interface for 32x32 multitrack recording and playback

USB-A port for stereo record/playback and file transfer

SD card multitrack support

16x16 channels at 96kHz

32x32 channels at 48kHz

Assistive Tools and DSP Features

Gain Assistant for automated gain staging

Feedback Assistant with up to 16 automatic notch filters per output

32 channel Automatic Mic Mixer (AMM) with integrated DSP and zero added latency

Remote Control and Software

compatible with free remote apps for Windows, MacOS, iOS, Android

supports full mix control, patching, effects, and routing

Chassis and Mounting

19 inch rack mountable with optional kit

compact and rugged design suitable for live, studio, and installation use
