Allen & Heath ZED60-10FX
MPN #ZED60-10FX
Compact mixer with 4 mic/line inputs, 2 Class A FET guitar DI inputs, onboard FX, 60mm faders, USB I/O, 3-band EQ, and Neutrik connectors.

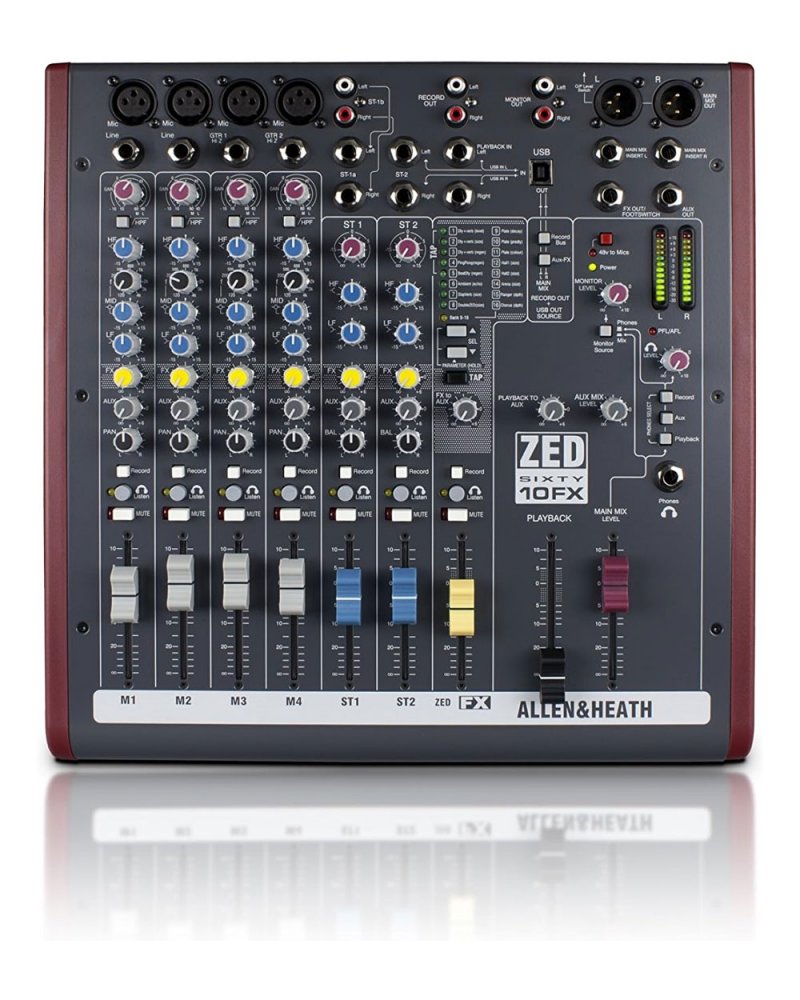

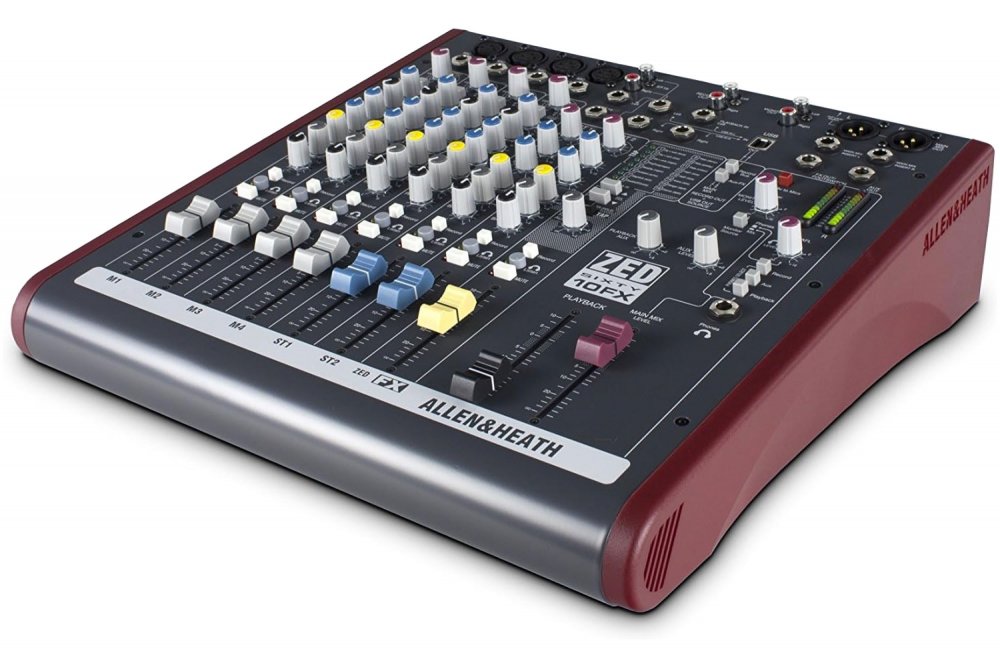

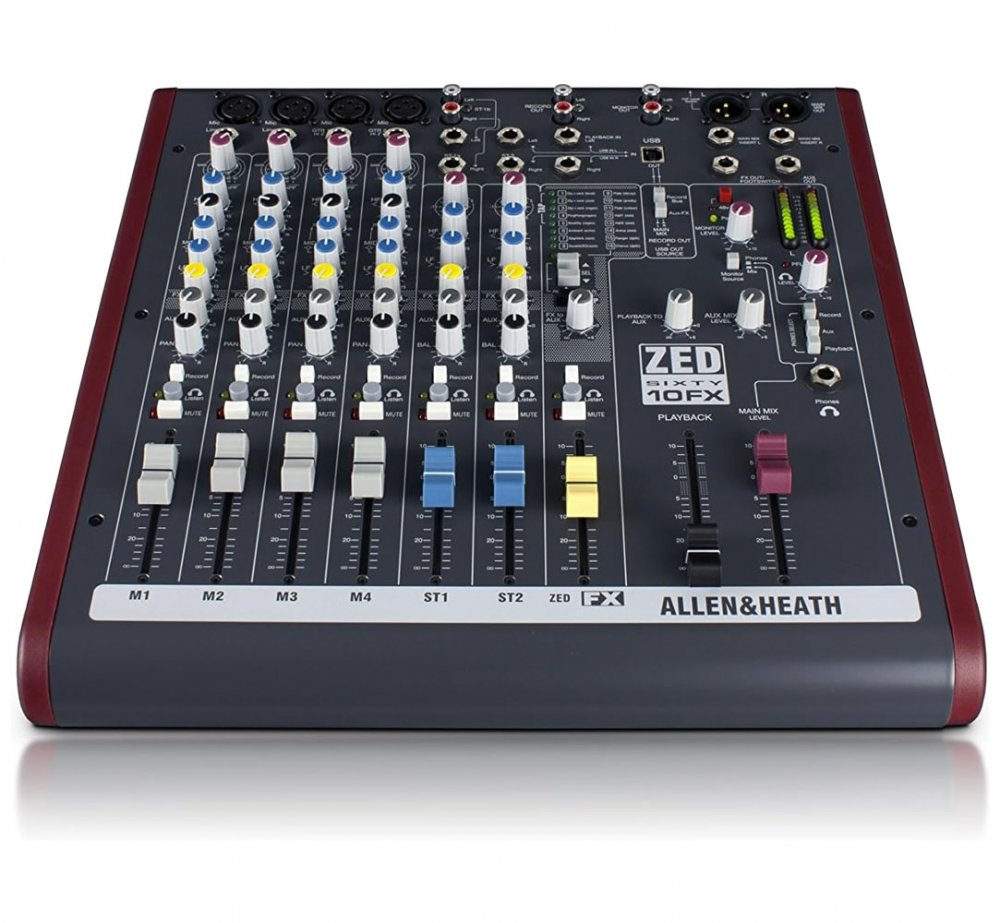

The Allen & Heath ZED60-10FX is a compact, versatile 10-channel mixer designed for small bands, solo performers, and home studio setups. It brings together high-quality analog circuitry with a USB audio interface and onboard digital effects, making it an excellent all-in-one solution for live performances and recording.
At its core are 4 mic/line channels equipped with Allen & Heath's premium GSPre preamps, delivering low noise, high headroom, and a warm, musical tone. Two stereo line inputs support instruments like keyboards or playback devices. For guitarists, two of the mono channels offer high-impedance inputs, allowing direct connection without the need for DI boxes.
The ZED60-10FX also features a USB interface for easy stereo recording and playback with a computer, and a built-in digital FX processor offering studio-quality reverbs, delays, and modulation effects. Each channel includes 3-band EQ and FX send, and the compact form factor ensures portability without compromising on functionality.
This mixer is ideal for performers who need pro-level sound in a small footprint, combining flexibility, excellent sound quality, and intuitive controls.
Features
Compact Mixer with USB I/O: Designed for solo performers, duos, and small bands needing versatile live or studio mixing with recording capabilities.4 Mic/Line Inputs with High-Quality Preamps: Four mic/line channels with responsive preamps offer clean sound for vocals or instruments, plus two with Hi-Z switches for direct guitar input.2 Stereo Line Inputs: Extra stereo channels support keyboards, media players, or line-level gear without adapters.Built-In FX Engine: Includes 16 editable effects such as reverbs, delays, and modulation tailored for vocals and instruments.USB Audio Interface: Record and playback to/from a computer with a single USB connection-ideal for home recording or backing track playback.Professional EQ and Monitoring: 3-band EQ on mono channels, along with flexible aux sends for monitors or FX, provide comprehensive control of sound.Rugged Design for Portability: Road-ready build with a solid chassis and intuitive layout makes it ideal for gigging musicians and engineers on the move.
Specifications
General Specifications
compact analog mixer with 4 mic/line inputs and 2 stereo inputs60mm professional quality fadersinternal 16 digital FX presetsintegrated USB audio interfaceclass A FET high impedance DI inputs on 2 mono channelsNeutrik XLR and 1/4 inch jack connectorsphantom power 48V on mic inputsdedicated stereo record output and stereo playback inputconfigurable USB send and return routingilluminated PFL indicators12 bar stereo level metersDI gain boost switch for high-impedance inputs
EQ and Signal Routing
3 band EQ with sweepable midrange (MusiQ British EQ)1 pre-fade aux send1 post-fade FX sendpan control per channelresponsive EQ for corrective or creative shaping
Inputs
4 mono mic/line channels2 stereo inputs compatible with MP3/CD players or keyboardsUSB input selectable for playback or channel returnguitar inputs with tube emulation and 26dB gain boost
Outputs
main mix left and right on XLRaux and FX sends on 1/4 inch jacksrecord and monitor outputs on RCAstereo monitor out for speaker feed
USB Audio Interface
USB 1.1 compliant16 bit codecsample rates: 32kHz 44.1kHz 48kHzheadroom: 14dB from nominal
FX Section
16 built-in time-delay based effectsdedicated FX send busFX controlled via 3 buttons and 9 segment LED displayeditable via tap tempo and level control
Audio Performance
mic input to main out frequency response 10Hz to 30kHz at 30dB gaintotal harmonic distortion (typical):mic in 10dB gain 0.002 percentmic in 30dB gain 0.01 percentline in 0.003 percentstereo in 0.002 percentguitar input boost off 0.015 percentguitar input boost on 2 percent second harmonicequivalent input noise (EIN): -127dBu @ max gainmix out noise: -96dBu
Physical and Construction
rugged metal chassis with vertically mounted PCBcompact and portable designprofessional touring-grade build quality
