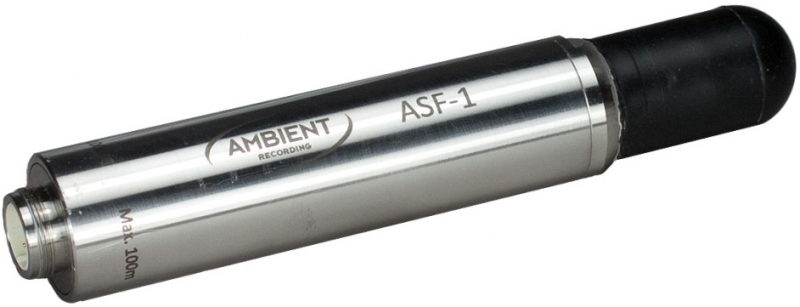

Ambient ASF-1 Hydrophone

The Ambient ASF-1 is a professional hydrophone that captures underwater with very high accuracy.

Crystal clear, low noise audio from infra- to ultrasound
The ASF-1 is completely designed and manufactured by Ambient Recording in response all the requests for an affordable, yet professional hydrophone for working with standard audio gear. The goal was nothing less than to create a very natural sounding, low noise underwater microphone. Well, it took us nearly 3 years but finally we did it.
With the development of the Ambient "Sound Fish" we focused on high audio quality with best handling. Therefore we designed a linear, low distortion microphone preamp offering a linear frequency response from 10Hz- 40kHz.

Waterproof up to 100m
Following our idea to create an underwater microphone for professional sound recordists we worked hard to build a hydrophone which can be fed directly from standard 48V Phantom power. Thus, this microphone works right out of the box with all your existing audio gear without additional adaptors. The ASF-1 is machined out of high quality stainless steel (V4A) and can easily withstand the water pressure of 100m depth.

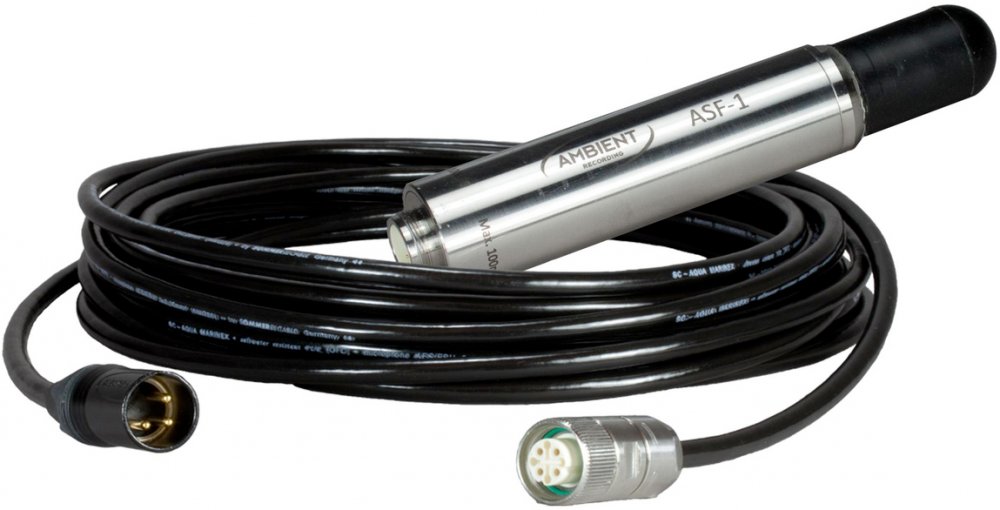

Additionally the used materials (special formulated NBR, V4A polyurethane cable) stand out for their long term resistance against seawater. Within the purchased parts package we included a 10 meter underwater cable with sealed AHS V4a underwater connector. Thus, the AFS-1 can be used right out of the box without additional adaptors or cables. Other cable lengths are available on request.
  • Frequency response: 7Hz- 40kHz (-3dB)
  • Polar Pattern: Omni directional
  • THD: 0,1% (10Hz-40kHz)
  • Dimensions (HxW):180mm x 25mm
  • Max depth: 100m
  • Housing material: V4A stainless steel
  • Encapsulating material: Special formulated NBR
  • Weight (without cable): 270g
  • Power Supply: 48V Phantom
  • Included detachable 10m underwater cable
  • Special designed stainless steel AHS underwater connector
  • Temperature range: -1° C to +70°C
  • Reviews
    Price *
    Free shipping in Canada. Conditions
    Additional information
    For more information about the ASF-1 Hydrophone, please visit the website of Ambient
