Amphion BaseTwo25 system
Powered low-frequency extension system with 2 x subwoofer towers and 2 x 700W amplifier

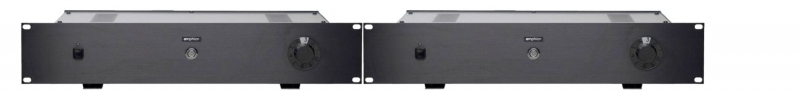

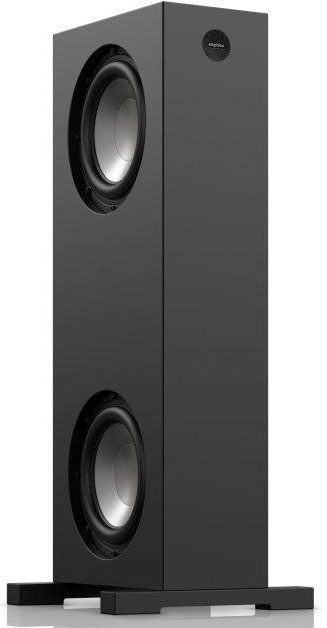

BaseTwo25 is a bass extension system, which transforms a 2-way monitor into a 3-way full range system. The system consists of a 2U crossover/amplifier unit and two identical, double-sided extenders. Each side of the extender has a long-throw 10" woofer at the top and a matching passive radiator below. For the best possible integration, extenders also act as a monitor stand. Due to the benefits of force cancellation, the extenders remain stable even during the most demanding bass tracks.
BaseTwo25 has four possible crossover settings: 40 Hz, 60 Hz, 80 Hz, and 100 Hz.
For optimal integration BaseTwo25 creates an additional crossover point and transforms your 2-way monitor into a cohesive 3-way full range system. BaseTwo25 improves power-handling and reduces the intermodulation distortion of the mid-woofers. The best crossover-setting depends on the monitor and listening level.
The system has a by-pass option for those moments when you want to use your monitors for a narrower midrange view. The by-pass is selectable via foot-switch or a push button on the front plate of the BaseAmp. BaseTwo25 works with all Amphion products, as well as with monitors that have sufficient speed and resolution in the critical upper-bass/lower-mid frequencies.
Operating principle: One way with passive radiator, stereo
4 x 25 cm / 10" aluminum driver
4 x 25 cm / 10" aluminum radiator
selectable @ 40, 60, 80, 100 Hz
Max SPL: 127dB
20 - 100 Hz +/-3dB (low pass)
100 Hz - 200 kHz +/-3dB (high pass)
Measurements (WxHxD): 360 x 958 x 386 mm
Weight: 2 x 32 kg / 2 x 93 lb
Output power: 2 x 700W @ 1% THD, 4 Ohm
THD + noise:
@ 10W: 0,0025%
@ 100W: 0,0015%
Dynamic range: 127dB (A)
Efficiency: 230V / 50 Hz-700W
Measurements (WxHxD): 483 x 88 x 260 mm
Weight: 6 kg / 13 lb
