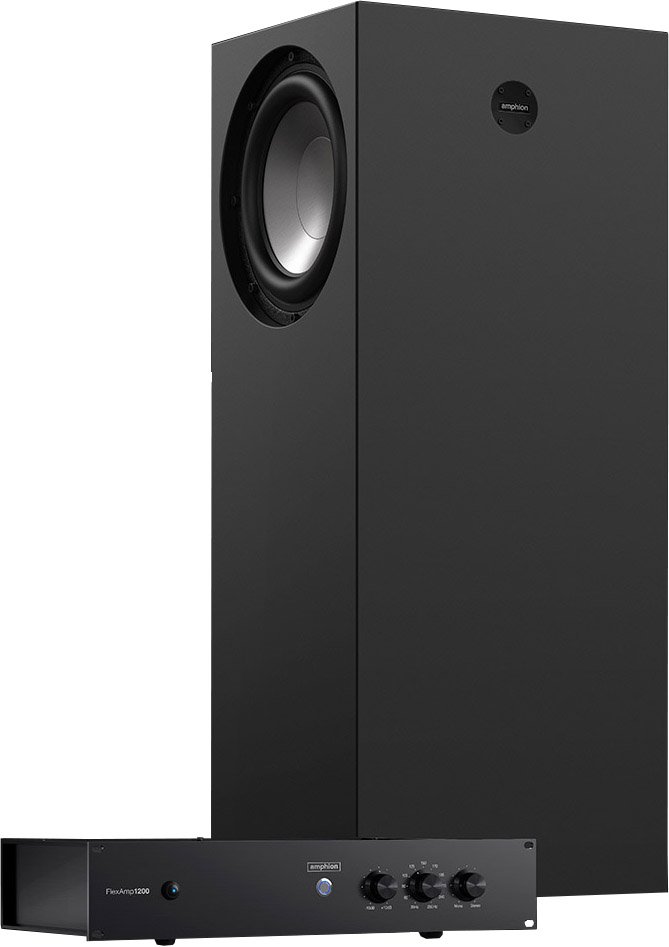

Amphion FlexBase25 system

The FlexBase25 is a stereo bass extension and management system with a separate LFE-channel input.

The crossover frequency is variable between 35-260 Hz, which allows changing the flavour of the system to match the task at hand. The ability to adjust the mono/stereo spread ensures that the system integrates even when higher crossover points are used. Unlike the conventional subwoofers, the system is designed to be easy to set-up and intuitive to use.

The LFE input has +10dB sensitivity compared to the main channels, but no built-in lowpass filtering. The LFE channel can be linked between several units which then allows building 7.1 and upward systems.
Operating principle: One-way

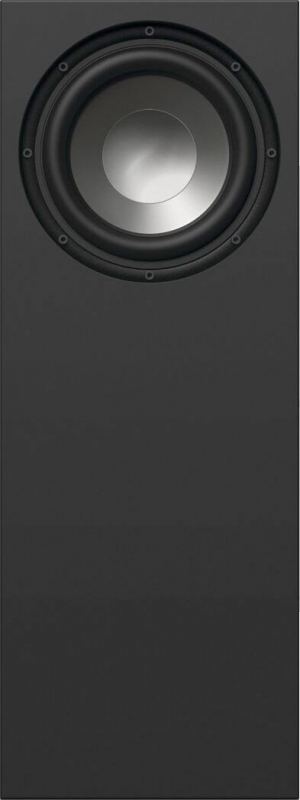

Woofer: 2 x 25 cm / 10" aluminium
Crossover frequency: 35-260Hz
Crossover slopes: 24dB/octave
THD+N @ 0dBu: -100dB
System bandwidth: 6Hz - 200 kHz
Input impedance: 25 kOhm
Output impedance: 100 Ohm
Measurement: (H x W x D) 840 x 342 x 321 mm
Max HPF level: +20dBu
Weight: 44 kg / 97 lb

Output Power: 2X300W RMS into 4 @ 1% THD
Frequency response: 10Hz - 65kHz (-3dB)
Distorsion: @ 1W 0,003% (100 Hz)
Distorsion: @ 100W 0,006% (100 Hz)
Signal to noise ratio: 93dB @ 1W
Efficiency: 85% @ full power (230V operation
Free shipping in Canada. Conditions
Additional information
For more information about the FlexBase25 system, please visit the website of Amphion
