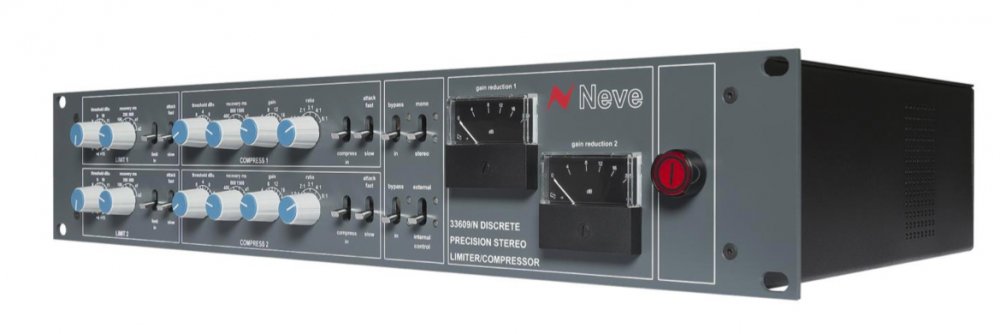

AMS Neve 33609/N
Stereo compressor / limiters in a stand-alone 2U rack-mount unit
The Neve 33609 Stereo Compressor offers comprehensive limiting and compression facilities for music recording, mastering, post production and broadcast applications. The combination of hand-wired transformers and gain reduction circuitry produces a sound quality which is often duplicated, yet seldom achieved by any other compressor / limiter. Coupled with the unit's unparalleled ease of use, this inimitable sound quality has made the 33609 a worldwide studio standard for three decades.
The hallmark 33609 compression sound is very smooth, and extreme settings may be used with the compression or limiting remaining relatively transparent. After several versions of this classic Neve compressor over the years, today's 33609 provides the best of both worlds: original Neve 33609 sound, with enhanced internal and external I/O switching compared to the original model. The 33609 also utilises a discrete output stage like the original model, for a slightly warmer sound that is preferred by many professionals over previous iterations. Multiple units can be easily linked for multi-channel operation.
The 33609 features independent sidechains for the compressor and limiter sections, with similarly independent threshold, recovery and attack controls. The compressor features a selection of ratios from 1.5:1 to 6:1 and a gain make-up control that comes before the limiter. Overall gain reduction is indicated on a moving coil meter.
Much like our classic 1073 and 1081 microphone preamplifiers, the 33609 Stereo Compressor is often cited as a "desert island" compressor - one which a healthy sampling of the world's top engineers and producers would choose above all others.
Classic Stereo Compressor / Limiter designed to exacting 1970's specificationsMade using hand-wired Neve transformers in Burnley, EnglandClassic 2254 feedback compression circuitryBrick Wall LimitingTransparent level controlPerfect for mixing, broadcast, and mastering applicationsHard Limit feature for digital recordingLimit in/out Compress in/outDiscrete output stage for slightly warmer sound
Frequency Response: +/- 0.5dB from 20Hz to 20kHz, measured at 0dBu relative to 1kHzDistortion (80kHz bandwidth): 0.075% maximum (Bypass IN, Compress and Limit OUT, input level at +9dBu, 1kHz)0.2% maximum (Compress IN ratio 6:1, Gain make-up to MAX, Recovery: 800mS, Threshold -18dBu)0.45% maximum (Limit IN, Compress OUT, Recovery 800mS, Input level +22dBu, Threshold -18dBu)Noise: -75dBu with input terminated in 600 Ohms, Bypass IN, Compress and Limit OFF; -55dBu with compress IN and gain make-up at maximum (22Hz to 22kHz bandwidth)Limiter section
Limit Threshold: +4dBu to +15dBuLimiter Ratio: With input level at 10dBu, then increased to +20dBu, the change in output level should be 0.1dB, +/-0.1dBLimiter Attack Time: Slow 4mS, +/-1mS, fast 2mS, +/-1mSLimiter Recovery Time: A1 (auto): 100mS/2seconds, A2 (auto): 50mS/5secondsCompressor section
Compressor Ratio: 1.5:1, 2:1, 3:1, 4:1, 6:1Compressor Attack Time: Slow 6mS +/-1mS, fast 3mS +/-1mSCompressor Recovery Time: 100mS, 400mS, 800mS, 1.5S, and Auto 1 (100mS/2 sec) and Auto 2 (50mS/5 sec) settings.Compressor Gain Make-up: Gain Make-up control provides 0dB to +20dB extra gain in 2dB steps when Compress switched IN.Power
Power Consumption: 5.3VADimensions
Width: 482mm (19 inches)Height: 88mm (3.46 inches)Depth: 255mm (10.03 inches)Weight: 5kg (11lbs)
