AMS Neve 4081
Quad Classic Mic Preamp: powerful control and legendary sound quality for post, studio, OB or live use. Mac/PC control available for DAW users
The 4081 Quad Mic Preamp builds on the incredible success of the 1081 and 1081R modules and provides both powerful control and the legendary Neve sound.
Perfect for vocals, ADR and Foley Recording, the 4081 features make it the Mic Preamp of choice for any studio, OB truck or a live stage environment.
Every function of the 4081 can be controlled directly from the front panel or by remote control using a Mac or Intel based computer with Neve Remote Control software. This provides a simple and elegant solution for users of ProTools, Nuendo, Cubase and similar DAW systems. Multiple 4081 units can be linked together to create up to 64 independent channels of Mic Preamps or Line Level inputs all controlled from a single computer.
An optional Digital card provides a FireWire/AES interface with four channels of A/D conversion to either AES or FireWire. An insert point is available before the A/D converter on each channel to allow external, analogue Outboard equipment to be switched into the signal path. Four channels of AES-to-analogue or FireWire-to-analogue conversion are also available.
And now with Version 2.00 software, metering information is displayed within the Remote Mic Control window, which is passed back from the 4081 unit(s) to the Remote Mic Control software running on the computer being used for remote control.
Like all Neve outboard products, the 4081 Quad Mic Preamp is hand-built and hand-wired by skilled Neve professionals in Burnley, England. Its design delivers vintage Neve sound, and builds on the legacy of the highly sought-after 1081 products.
Remote Control of legendary Neve microphone preamp designFour genuine 1081 Mic preamp channels in a single 9.5" wide unitTwo units can be linked together to provide 8-channels in a 19" unit with optional 19" rack-mount kitRemote control using a Mac or PC with Neve Remote Control softwareXLR Mic input can be switched between Mic and electronically balanced LineSwitchable 48V Phantom power supplyDigital I/O Option: Firewire/AES interface with four channels of A/D conversion to either AES or FireWire and 4 channels of D/A conversion. Analogue Insert (pre A/D converter) per channel.
Performance (per channel):
Input impedance: 1.2kOhm @ 1kHzGain: +20dB to +70dB in 5dB stepsDistortion: not more than 0.07% for 20dBm output from 50Hz to 10kHz @ 60dB gainNoise: (22Hz to 22kHz bandwidth) EIN better than -122dB @60dB gainMicrophone Maximum Input Level with 'Pad' IN: +24dBMax Output: +26dBu into 600 OhmsOutput Impedance: 50 Ohms +/- 5% @ 1kHz balancedConnections:

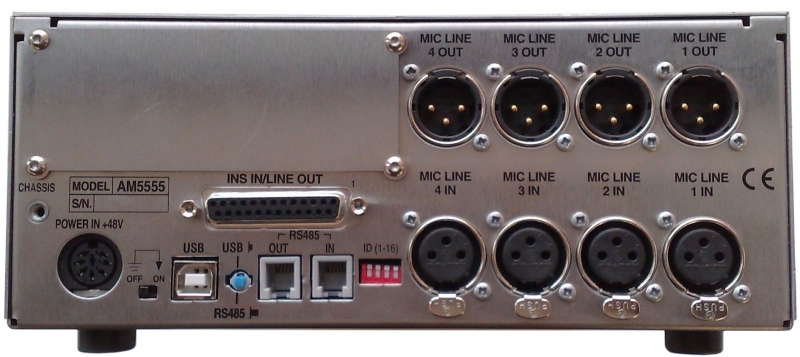

Audio Interface: 1x XLR Mic/Line input & 1x XLR Line output per channel1x 25-way D-type socket for INSert Inputs and Line OutputsControl Interface: 1x USB data port, 1x RS485 in and 1x RS485 out (both RJ9 sockets) to allow control dataDimensions:
Width: 218mm (8.5 inches)Height: 88mm (3 inches) (2U) - not including rubber feet on bottom of unit for use on flat surface/desktop, which are 6mm deep.Depth: 270mm (10.75 inches) excluding front panel controls, front panel 'grab bars' and rear connectorsWeight: 5.5kg (12 lbs)Options:
Digital option: Analogue to Digital & Digital to Analogue converter card, capable of sample rates up to 384kHz can be fitted into the 4081 internally.Comes with AES and FireWire digital interfaces.+26dBu Headroom, Distortion better than 0.005% (at 48kHz) and 0.007% (at 96kHz), Noise <-110dB fs (48kHz)Rack-mount kit: Mounts 1 or 2 4081 units into a 19" rack.
