Goliath HD | Gen is a 364-channel Thunderbolt/USB3/HDX-ready Audio Interface with 136dB DNR AD/DA conversion and integrated FPGA FX



The most powerful audio interface in the world evolved
Goliath HD | Gen 3 is the best Goliath we ever did. With brand-new, state-of-the-art AD/DA converters, this 64-channel Thunderbolt/USB and optional HDX (unlocked separately) beast achieves a stunning 136dB dynamic range on its mastering-grade monitor outputs. Designed to handle even the most demanding studio & live productions, it offers the most comprehensive connectivity out of any audio interface on the market.

The all-purpose I/O includes 16 mic preamps, with accusonic modeling, 2 analog inserts, 4 instruments inputs and additional, 16 analog inputs (over DB25) with 124dB dynamic range, 32 analog outputs (over DB25) with 129dB dynamic range, 2 transformer ReAmp outs, 2 headphone outputs (a total of 38 analog outputs). Digital & networking connectivity is established by industry-standard AES, MADI, ADAT, S/PDIF, Thunderbolt USB and HDX connections for a whopping sum of 346 digital I/O channels!

As no project is complete without audio effects, Goliath HD | Gen 3 includes 36 real-time FPGA FX pulled from the acclaimed Antelope Audio AFX library. Comprehensive software, front panel and touch-screen controls let you wield all of this spectacular power, housed within just 2U rack space.

Goliath HD | Gen 3 comes with 36 FX included (over 3000$ value):
Gyraf Gyratex IX, Stay Levin, FET-A76, VEQ-1A, VMEQ, POWERFFC, Clear Q, Power EX, Auraverb, BA-31, Power Gate, VCA160, x903, VEQ-HLF, 11 Guitar Amps, 11 Guitar Cabinets

TOP-TIER STUDIO SOUND
A 64-channel Thunderbolt/USB/HDX-compatible interface, Goliath HD | Gen 3 achieves a stunning 136dB dynamic range on its mastering-grade monitor outputs. Coupled with our latest 64-bit Acoustically Focused Clocking jitter management system, Class-A microphone preamps and audiophile-grade AD/DA conversion, the device delivers top-tier studio sound quality.
Additionally, our acclaimed digital clocking can be distributed across the rest of your gear via Word Clock BNC outputs and the Antelope Audio 10M/10MX atomic clocks can be used for reference.

REAL-TIME STUDIO EFFECTS
Goliath HD | Gen 3 ships with a suite of 36 FPGA-powered audio effects. This powerful arsenal of lifelike, low-latency effects can be expanded with additional choices from our website.

TACKLE ANY PRODUCTION CHALLENGE
Goliath HD | Gen 3 is cross-platform and works with any DAW, connecting to PC & Mac computers over Thunderbolt, USB and HDX (optional expansion)

FORGET ABOUT LATENCY
An Antelope Audio innovation, the Goliath HD | Gen 3's HDX Delay Compensation method brings any analog or digital input into Pro Tools, fully sample-accurate.
Please note that HDX connectivity is an optional upgrade and must be purchased separately.
We also offer an ultra-fast and custom build Thunderbolt driver for 64 channels of simultaneous playback and recording, at up to sub-millisecond (imperceptible) latency, on both Windows & Mac.
In addition, a latency-free direct monitoring over 4 independent internal mixers with 32 assignable inputs.

BUILT TO LAST

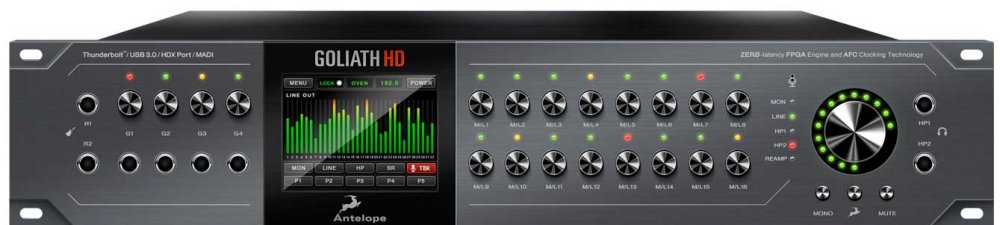

Goliath HD | Gen 3 gets a gorgeous front panel facelift while keeping the convenient monitor and level indicators intact. The full-color touchscreen is still its centerpiece, enabling immediate access to metering, preferences, gain adjustments and mission-critical functionality. Each unit is hand-crafted in Europe with the latest innovations and quality standards in mind.

Features

  • 136dB dynamic range D/A monitor out conversion pushes digital audio to its near-limits
  • . Pro Tools HD-ready audio interface with two HDX ports (locked, optional expansion)
    . 36 integrated real-time studio effects
    . Latency-free monitoring environment
    . Latest 64-bit Antelope Audio Acoustically Focused Clocking jitter management algorithm
    . Proprietary HDX Delay Compensation technology
    . 16 Accusonic mic preamps with mic modeling support (for Antelope Audio Edge & Verge modeling microphones), dedicated controls and meters
    . 2 independently assignable headphone outputs
    . 192 kHz audio over HDX, Thunderbolt, USB 3.0 and MADI (to Dante Bridge)
    . AES, MADI, ADAT, and S/PDIF digital connectivity
    . Integrated Talkback microphone
    . Multi-functional touch-screen display for signal monitoring and function control
    . Cross-platform Thunderbolt & USB connectivity (for Windows & Mac)
    . Hand-made in Europe with superior build quality

    Specifications

    DIGITAL I/O
    REAR PANEL
    1x S/PDIF In on RCA (2 CHs)
    1x S/PDIF Out on RCA (2 CHs)
    4x AES/EBU In on DB25 (8 CHs)
    4x AES/EBU Out on DB25 (8 CHs)
    1x Atomic In on BNC
    1x WC In on BNC
    2x WC Out on double BNC
    2x ADAT In on Fiber optic
    2x ADAT Out on Fiber optic
    2x Optical MADI In and Out on Fiber optic (64 channels on each MADI Port)
    1x USB 3.0
    1x Thunderbolt Gen2
    2x HDX Port (32 CHs I/O on each port)

    FRONT PANEL
    4x DI HiZ/Instrument Inputs
    2x Re-amp Outs
    2x Headphone Outs

    ANALOG CONNECTIONS
    REAR PANEL
    16x Universal Inputs (Mic In/Line In) on XLR
    16x Line In on 2x DB25
    32x Line Out on 4x DB25
    2x AD Inserts on double TRS
    1x Monitor Line Out on 1/4 TRS stereo jacks

    FRONT PANEL
    2x HP Out on 1/4 stereo jack
    4x Instrument In on 1/4 stereo jack (dedicated for instrument / HiZ only)
    2x Reamp Out on 1/4 stereo jack

    FRONT PANEL FEATURES
    1x 3.5 inches high resolution TFT display (262 000 colors) with capacitive touch screen panel
    1x Big knob for all monitor outs or HP volume control (selectable)
    1x LED Ring for visualizing the volume control or mute status on selected output
    16x Knob for gain control of each Mic In (encoders with internal switch for muting)
    16x RGB LEDs at the top of each Mic In knob (indication of input level)
    4x Knob for gain control of each of Front panel's instrument / HiZ inputs (with muting function)
    4x RGB LEDs at the top of each Instrument In knob (indication of input level)
    1x TALKBACK microphone
    1x MUTE button
    1x MONO button
    1x DIM button

    CLOCKING SYSTEM
    4th Generation Acoustically Focused Clocking
    64-bit DDS

    SAMPLE RATES
    32, 44.1, 48, 88.2, 96, 176.4, 192

    OTHER
    Operating Temperature
    0 - 50 °C, 32 - 122 °F

    Weight (approx.): 6.8kg / 15lbs
    Width: 483mm / 19"
    Height: 88mm / 3.5"
    Depth: 279mm / 8.6"

    IN THE BOX
    . Goliath HD | Gen 3 - Thunderbolt/HDX/USB3 AD/DA Interface
    . Quick start guide
    . Warranty Card
    . 1 AEC Power cable
    . 1 USB cable
