UPC/EAN #853744004779     MPN #Orion32+ Gen 3

$3895.00 (Special)

Save $390.00, Regular $4285.00
Financing available
Free shipping in Canada. Conditions

64-channel Thunderbolt and 32-channel USB AD/DA Converter



The world's first 32-channel AD/DA converter just got even better! The Orion 32+'s proven flexibility and exemplary sound quality have been expanded much further with upgraded, industry-leading conversion and a major facelift. Like its predecessor, the Orion 32+ | Gen 3 stands ready to take over studios and live shows across the globe once again.

Explore Vintage Studio Equipment
The Orion 32+ | Gen 3 features a suite of essential effects from Antelope Audio's vast library of FPGA FX models. Customers can purchase additional effects as they deem fit, as well as invest in the AFX2DAW software bridge which lets them use on-board processed, low-latency effects as inserts in their preferred digital audio workstation.

64-CHANNELS OF AUDIO VIA THUNDERBOLT

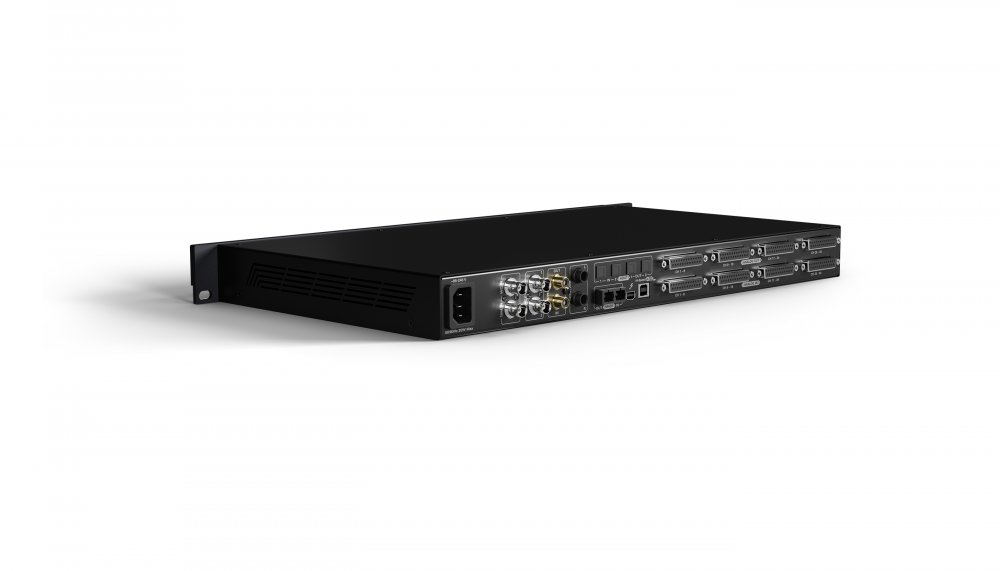

Orion 32+ | Gen 3 provides seamless connectivity to any DAW, with low-latency, simultaneous streaming of 64 channels of 24-bit, 192 kHz audio via ThunderboltTM and 32 channels via USB. The analog I/O are handled by 8 DB25 connectors and a pair of TRS connectors for monitoring. Digital connectivity options are complemented by ADAT and S/PDIF.

EXTENSIVE FLEXIBILITY
Orion 32+ | Gen 3 offers extensive flexibility for excellent productivity. A color-coded software routing matrix with four separate mixers, effects chaining, and zero latency monitoring is provided. The routing matrix, mixers, and control panel are found within an intuitive desktop application for macOS and Windows.

HIGH-END CLOCKING & CONVERSION
Digital clarity meets analog musicality to form the signature Antelope Audio sound.
Our proven clocking accuracy is ensured by Antelope's renowned 64-bit Acoustically Focused Clocking (AFC) jitter management technology. A 10 MHz input enables connectivity to Antelope's legendary 10M Atomic Clock and its successor 10MX. That, and a pair of word clock outputs make the Orion 32+ | Gen 3 a great fit in any setup - not just as an interface, but as a premium master clock as well.

REDESIGNED SOFTWARE PANEL
Control all Orion 32+ | Gen 3 features and functionality from its intuitive desktop app. Both macOS and Windows compatible, it implements Antelope Audio's networking control concept to let you access the interface from multiple computers in the same network. For added convenience and flexibility, the control panels are freely movable and resizable, facilitating multi-screen workflows.

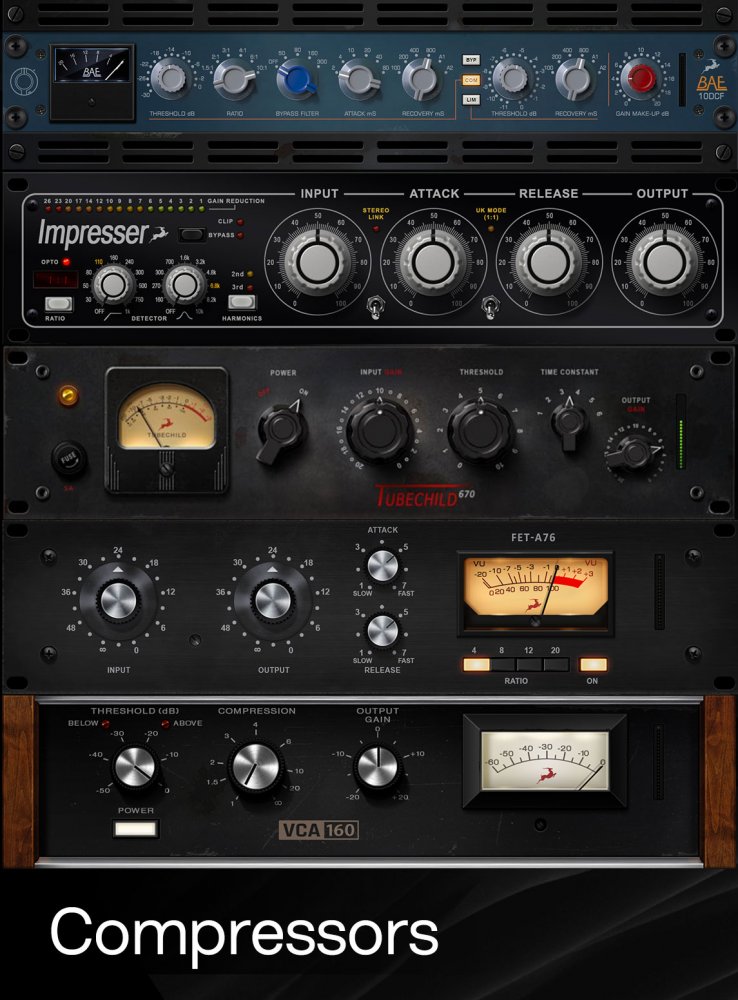

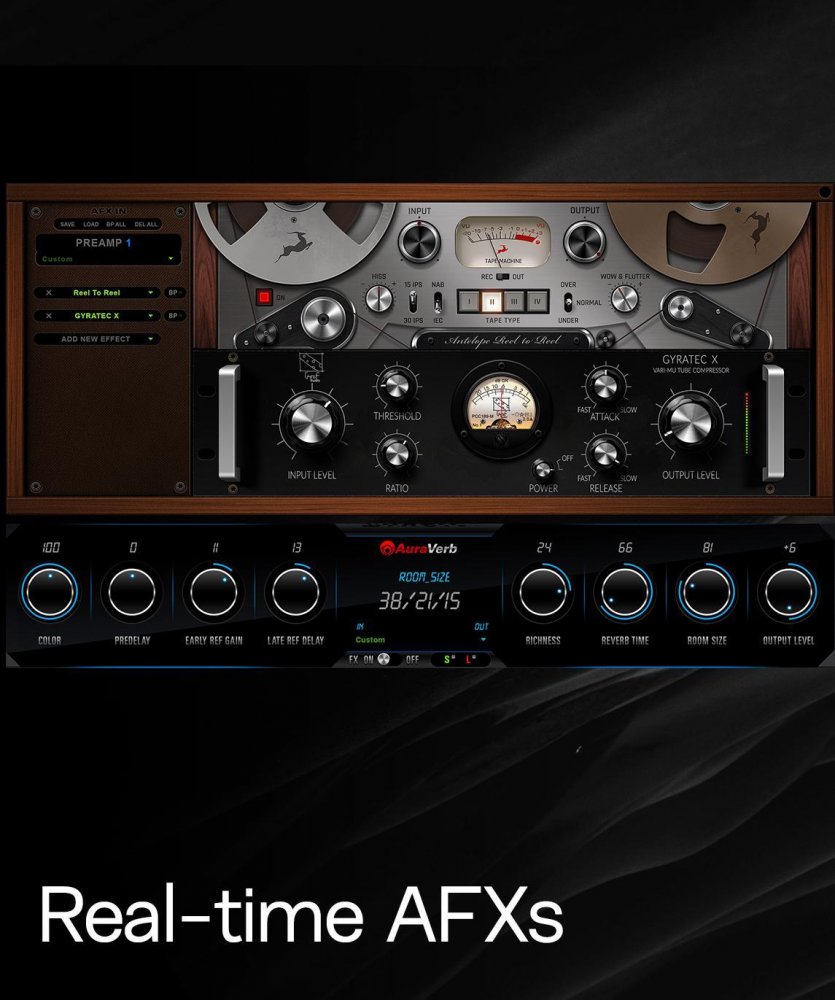

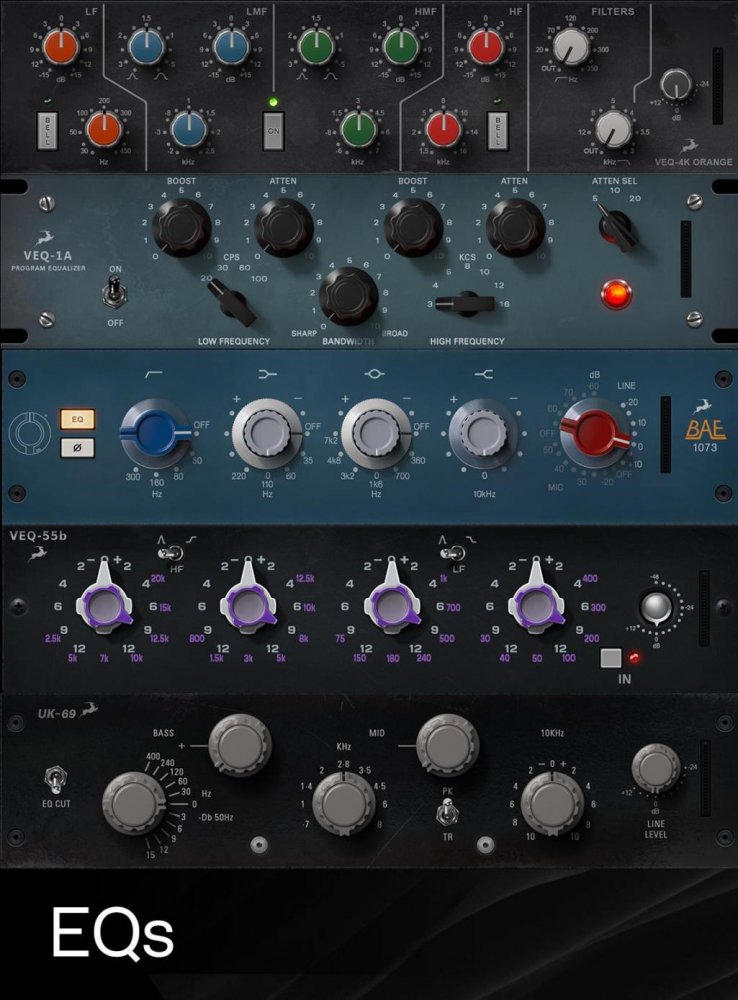

Orion32+ | Gen 3 includes a complimentary suite of superb real-time effects selected from a growing library of Antelope Audio FPGA FX. Additional effects can be purchased to expand your arsenal of FX.

Real-time FX included:
. POWERFFC - Compressor
. Clear Q - EQ
. Power EX - Expander
. Auraverb - Reverb
. Master De Esser
. Power Gate - noise gate tool
  • FPGA-based real-time FX models of iconic studio gear
  • 64 channels of 24-bit, 192 kHz audio via ThunderboltTM / 32 channels via USB
  • ThunderboltTM, MADI, USB, ADAT, S/PDIF, 8x DB25 connectivity
  • Flawless 4th Generation 64-bit clocking and jitter management
  • Networking Control from multiple computers
  • Routing, mixing, and effects chaining via macOS & Windows app
  • ANALOG
    Analog Inputs
    4 x D-SUB 25
    (32 channels total),
    +24 dBu max, 11.2 kOhms

    Analog Outputs
    4 x D-SUB 25
    (32 channels total),
    +24 dBu, 56 Ohms
    2 x Monitor Outs
    on TRS 1/4 Jacks

    D/A Monitor Converter
    Dynamic Range: 129 dB
    THD + N: -108 dB

    A/D Converter
    Dynamic Range: 121 dB
    THD + N: -112 dB

    D/A Converters
    Dynamic Range: 120 dB
    THD + N: -107 dB

    DIGITAL
    Digital Inputs
    1 x Fiber Optic MADI (up to 64CH)
    2 x ADAT (up to 16CH)
    1 x S/PDIF

    Digital Outputs
    1 x Fiber Optic MADI (up to 64CH)
    2 x ADAT (up to 16CH)
    1 x S/PDIF

    USB I/O
    USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
    32 channels I/O, Type B

    Thunderbolt?
    1 x Thunderbolt? (64 channels I/O)

    CLOCKING
    Word Clock Input
    1 x Input @ 75 Ohms 3Vpp on BNC 32 " 192kHz

    Word Clock Outputs
    2 x Outputs @ 75 Ohms 3Vpp on BNC 32 " 192kHz

    Atomic Clock Input
    1 x 10M Input @ 75 Ohms Vpp on BNC

    Clocking System
    4th Generation
    Acoustically Focused Clocking
    64-bit DDS
    Oven Controlled Crystal Oscillator

    Clock Stability
    <+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF

    Clock Aging
    < 1 ppm per year

    Clock Calibration
    < +/-0.001 ppm Sample Rates (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192

    OTHER
    Operating Temperature
    0-50°C, 32-122°F

    Weight (Approx)
    3kg/ 6.6 lbs

    Dimensions (Approx)
    Width: 483 mm / 19?
    Height: 44 mm / 1.75?
    Depth: 220 mm / 8.66?

    Electrical specs
    AC Universal input: ~95-245 V
    Power Consumption: 20 Watts Max

    In the box
  • Orion 32+ | Gen 3
  • Power cable
  • USB cable
  • 4.5
    Nic Trudel
    Granby, QC.
    April 30, 2019
    orion 32+ Gen3
    i'm very happy as a new owner of an Orion 32+ Gen 3. plenty of good features like PRE-record plugins effects. Routing can be a little confusing at first, but very versatile.
