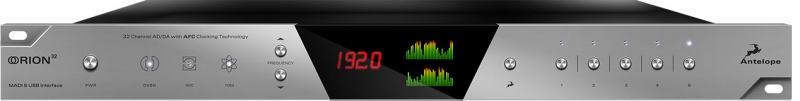

Antelope Audio Orion 32+

Orion32+ connects to any DAW, providing 64 ch. of low-latency I/O in 24-bit, 192 kHz audio (Thunderbolt), 32 channels via (USB), Analog over DB25, and 2x TRS for monitoring

Orion32 + is a successor to the world's first 32-channel AD/DA, now offering a greater variety of interfaces such as Thunderbolt, MADI and USB. The digital connectivity options are complimented also by ADAT and S/PDIF.

STUNNING FLEXIBILITY
Enhanced Routing, Mixing And Monitoring

Orion32 + offers stunning flexibility and great productivity, providing a color-coded routing matrix with four separate mixers, built-in DSP effects and zero latency monitoring. The entire control is gathered in a desktop application available for both OS X and Windows. The control panel is based on the software created initially for Orion32 and further developed for another Antelope Audio leading product, Zen Studio. Orion32+ control panel is an extremely intuitive user-friendly interface, which incorporates both our know-how and customers' feedback.

HIGH-END CLOCKING & CONVERSION
Digital Clarity Meets Analog Detail In Antelope Audio's Signature Sound

The proven clocking accuracy is supported by Antelope's renowned 64-bit Acoustically Focused Clocking (AFC) jitter management technology, the same as with the flagship Trinity Master Clock. The clean, transparent and detailed conversion in Orion32+ is the same as with its predecessor, which has proved its sound quality in a great number of studios and live shows across the Globe. The 10 MHz input, enabling connectivity to Antelope's legendary 10M Atomic Clock and its successor 10MX, makes Orion32+ crystal oscillator remarkably precise, emphasizing the signature Antelope sound. The two word clock outputs make Orion32+ a great fit in any setup, not only as an interface, but a master clock as well.


ORION32+ FEATURES ANTELOPE AUDIO'S HARDWARE-BASED EFFECTS
Orion32+ features all four members of the Antelope EQ Legends bundle including VEQ-1A our emulation of a legendary tube EQ, which's been an inseparable part of every pro studio in the world. VMEQ-5 will make your mid range shine as never before. VEQ-55A will enahnce all details your mix has been missing.Last but not least Orion32+ gives you the chance to explore the great analog sound of the BAE-1073 - a cult and versatile 70's channel module easily found on all your favorite records. AuraVerb creates various ambient colors, or "Auras", using a unique algorithm to provide richness like no other reverb plugin on the market. Producers can easily design thickening effects, washing effects, bright halo type film score effects. AuraVerb comes with reverb presets, exclusively designed by the 5-time Grammy Award winning recording and mixing engineer Brian "Dr. Vibb" Vibberts.
Features
64 CHANNELS I/O
Simultaneous streaming of 64 I/O channels 24-bit, 192 kHz audio via Thunderbolt & 32 channels via USB

POWERFUL FPGA
Custom FPGA for flawless real-time effects processing & integrated AFX

64-BIT ACOUSTICALLY FOCUSED CLOCKING
AD/DA powered by our world-renowned jitter management algorithm

EXTENDED CONNECTIVITY
Thunderbolt, MADI, USB, ADAT, S/PDIF, 8x DB25

SUPREME CLOCKING
Oven Controlled Oscillator, 2 WC Outs, WC In, Atomic Clock In

SOFTWARE CONTROL
Routing, mixing, real-time effects processing via OS X & Windows compatible app
Specifications
ANALOG
Analog Inputs
  • 4 x D-SUB 25 (32 channels total), +20 dBu max, 11.2 kOhms

  • Analog Outputs
  • 4 x D-SUB 25 (32 channels total), +20dBu, 56 Ohms
  • 2 x Monitor Outs on TRS 1/4 Jacks

  • D/A Monitor Converter
  • Dynamic Range: 129 dB
  • THD + N: -108 dB

  • A/D Converter
  • Dynamic Range: 118 dB
  • THD + N: -105 dB

  • D/A Converters
  • Dynamic Range: 118 dB
  • THD + N: -98 dB

  • DIGITAL
    Digital Inputs
  • 1 x Fiber Optic MADI (up to 64CH)
  • 2 x ADAT (up to 16CH)
  • 1 x S/PDIF

  • Digital Outputs
  • 1 x Fiber Optic MADI (up to 64CH)
  • 2 x ADAT (up to 16CH)
  • 1 x S/PDIF

  • USB I/O
  • USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz, 32 channels I/O, Type B

  • Thunderbolt
  • 1 x Thunderbolt (64 channels I/O)

  • CLOCKING
    Word Clock Input
  • 1 x Input @ 75 Ohms 3Vpp on BNC 32 - 192kHz

  • Word Clock Outputs
  • 2 x Outputs @ 75 Ohms 3Vpp on BNC 32 - 192kHz

  • Atomic Clock Input
  • 1 x 10M Input @ 75 Ohms 1Vpp on BNC

  • Clocking System
  • 4th Generation Acoustically Focused Clocking
  • 64-bit DDS
  • Oven Controlled Crystal Oscillator

  • Clock Stability
  • <+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF

  • Clock Aging
  • < 1 ppm per year

  • Clock Calibration
  • < +/-0.001 ppm

  • Sample Rates (kHz)
  • 32, 44.1, 48, 88.2, 96, 176.4, 192

  • OTHER
    Operating Temperature
  • 0-50°C, 32-122°F

  • Weight (Approx)
  • 3kg/ 6.6 lbs

  • Dimensions (Approx)
  • Width: 483 mm / 19"
  • Height: 44 mm / 1.75"
  • Depth: 220 mm / 8.66"

  • Electrical specs
  • AC Universal input: ~95-245 V
  • Power Consumption: 20 Watts Max

  • In the box
  • Orion32+ 32-channel AD/DA Interface with AFC™ Clocking Technology
  • Owner's Manual
  • Warranty Card
  • Power cable
  • USB cable

  • WINDOWS
  • OS: Windows 7/8/8.1/10
  • Disk Space: Minimum 512 MB available disk space
  • USB: 1x USB 2.0 Port
  • Required USB bandwidth: 80%-90%
  • CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
  • Memory (RAM): 4GB Minimum (8GB or more Recommended)

  • MAC
  • OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)
  • Disk Space: Minimum 512 MB available disk space
  • USB: 1x USB 2.0/3.0 Port
  • Thunderbolt: 1x Thunderbolt/USB-C Port
  • Required USB bandwidth: 80%-90%
  • Memory(RAM): 4GB Minimum (8GB or more recommended)
  • CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)
  • Reviews
    2.0
    Cpusername
    Montreal
    January 5, 2019
    Produit peu fiable
    Le produit en tant que tel est excellent, mais sa fiabilité est très mauvaise et le service à la clientèle très négligé de la compagnie me font prendre le temps de dire haut et fort que tout produit d'Antelope audio est un mauvais investissement.
    Price

    $3983.00
    Special
    $3185.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the Orion 32+, please visit the website of Antelope Audio
