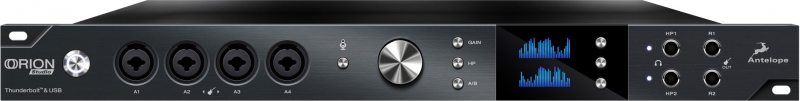

Antelope Audio Orion Studio Rev. 2017

The Orion Studio Rev. 2017 fits Thunderbolt and USB connectivity, 12 mic pres and our renowned clocking in just 1U rack space

Since its release in 2015 Orion Studio has become one of the biggest stars in the Antelope Audio line of ThunderboltTM & USB audio interfaces. And now we made it even better. With 12 Class-A Mic Pres make it's one and only piece of gear you'll need to record a full band and do it like a pro. For 2017 Orion Studio got brand new AD converters, raising its dynamic range to an industry best 124 dB and features superior low latency performance. Now coming in a gorgeous carbon grey faceplate, Orion Studio has a ton of new features inside its powerful Control panel and FPGA engine.

Just like Zen Tour and Goliath, Orion Studio features the full array of real-time FPGA powered vintage FX. This best-selling interface also includes Antelope's traditionally stunning AD/DA conversion, powered by our very own, world-renowned 64-bit Acoustically Focused Clocking (AFC) technology for jitter management.
Features
12 CLASS-A MIC PRES
Hi-Z, mic & line compatible preamps with phantom power

VINTAGE GUITAR FX
Hardware-based, FPGA powered effects for guitar amp modeling

THUNDERBOLT & USB
32 channels via Thunderbolt and 24 on USB for zero-latency audio streaming

64-BIT ACOUSTICALLY FOCUSED CLOCKING
AD/DA enhanced by our world-renowned jitter management algorithm

STUNNING AD/DA
24-bit, 192 kHz audio and Antelope's signature flawless conversion

ADVANCED CONTROL
Control Orion Studio via user-friendly desktop and mobile apps
Specifications
ANALOG
Analog Inputs
  • 4x Mic / Line Instrument on XLR combos on the front
  • 8x Mic / Line on XLR combos on the rear

  • Analog Inserts
  • 2x Inserts on TRS (inputs 1,2)

  • Analog Outputs
  • 16x Lines on 2x DB25 (16 channels Line Out)
  • 2x Stereo Monitor out on TRS (4 channels, only 1 active pair at a time)
  • 2x Stereo Headphone outs on TRS (4 channels)
  • 2x ReAmp outs on TRS (2 channels)

  • D/A Monitor Converter
  • Dynamic Range: 129 dB
  • THD + N: -108 dB

  • A/D Converter
  • Dynamic Range: 124 dB
  • THD + N: -112 dB

  • D/A Converter
  • Dynamic Range: 120 dB
  • THD + N: -107dB

  • Mic Preamp
  • Gain: 0,10 - 65 dB
  • THD + N: -108 dB

  • DIGITAL
    Digital Inputs
  • 2x ADAT (up to 16 depending on the sample rate)
  • 1x S/PDIF

  • Digital Outputs
  • 2x ADAT
  • 1x S/PDIF

  • USB I/O
  • USB 2.0 Hi-Speed;
  • Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B

  • Thunderbolt I/O
  • 1x Thunderbolt, 32 channels I/O

  • CLOCKING
    Word Clock Input
  • 1x Input @ 75 Ohms 3Vpp on BNC 32 - 192kHz

  • Word Clock Outputs
  • 1x Outputs @ 75 Ohms 3Vpp on BNC 32 - 192kHz

  • Clocking System
  • 4th Generation Acoustically Focused Clocking
  • 64-bit DDS
  • Oven Controlled Crystal Oscillator

  • Clocking Stability
  • <+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF

  • Clock Aging
  • < 1 ppm per year

  • Clock Calibration
  • <+/-0.001 ppm

  • Sample Rates
  • 32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

  • OTHER
    Operating Temperature
  • 0-50¢XC, 32-122¢XF

  • Weight
  • 3.1 kg/ 6.83 lbs ( apprx )

  • Dimensions (Approx)
  • Width: 483 mm / 19"
  • Height: 44 mm / 1.7"
  • Depth: 220 mm / 8.6"

  • Electrical specs
  • DC Universal input: 18V
  • Power Consumption: 25 Watts Max

  • In the box
  • Orion Studio - Thunderbolt and USB AD/DA Interface with 12 mic pres
  • Owner's Manual
  • Warranty Card
  • 1 DC Power supply
  • 1 USB cable
  • Reviews
    Price

    $3395.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the Orion Studio Rev. 2017, please visit the website of Antelope Audio
