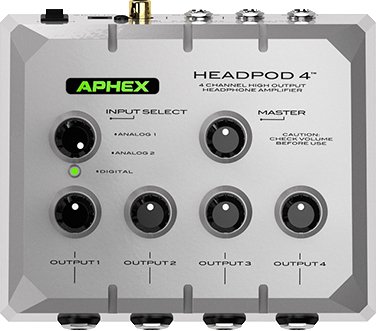

The Aphex Headpod4 is a professional monitoring for ALL headphone types
If the headphone output on your existing gear just isn't loud and clear enough, or you need multiple headphone outputs with independent level controls, the HeadPod 4 delivers.
But the HeadPod 4 gives you more than just volume. It's designed to deliver clean, clear, undistorted sound at any level - ideal for long periods of listening without fatigue.
The input signal can be fed from separate balanced connections; a single extension from your existing headphone output; or digitally via S/PDIF. Since it places no load on your existing headphone output, your audio will actually sound better through the HeadPod 4.
Four fully independent amplifiers ensure maximum efficiency with minimum crosstalk and distortion, even when all four outputs have completely different sets of headphones connected. Housed in a rugged, metal chassis, the HeadPod 4 is ready for any environment from the desktop to the rehearsal room, with its optional mic stand bracket.
Whether you're a musician, audio engineer, broadcaster or just over old, tired headphone outputs, the HeadPod 4 is for you.
- 4 independent stereo power amplifiers for ultra low crosstalk and efficiency
- Doesn't load down existing headphone outputs, improving their sound
- Durable metal construction, sleek design and small size
- Analog and digital inputs with top panel selector
Professional Monitoring for ALL headphone typesIndividual volume controlsHigh headroom (no clipping at high headphone levels)Durable metal jacksUltra low distortion & wide frequency responseMaster volume to match source levelUltra low crosstalkWorks from any analog sourceS/PDIF InputTop panel input selectionListen longer with less fatigueOvercomes limitations of typical headphone outputsFour independent stereo power amplifiersSmall size travels easily
Input Z: Bal: 20kW / Unbal: 10kW
Output Z: 10W
Max Input Level: +24dBu
Frequency Response: 10Hz - 120kHz +/- 1 dB
SNR (Typical): 100 dB
Crosstalk dB: -80 @ 1kHz, -70 @ 10kHz
Max Gain: 35 dB
THD+N, 1kHz: <.001%, 100mW into 25W
SMPTE IMD: <.001%, 100mW into 25W
Weight: 16 oz. (0.45kg)
Dimensions: 5.5" W x 1.9" H x 4.5" D / 13.8cm W x 4.8cm H x 11.4cm D
12 VDC, 1000mA
5.5mm x 2.1mm Power Jack
Manufacturer Part Number : Headpod4
