Like the console-based API 205L, the API 505-DI is specifically designed to accept a guitar, bass or keyboard direct input while minimizing any loading effect on Hi-Z instrument pickups.
Additionally, the 505-DI's Gain Control is used to normalize an instrument's input level, up to a +4 dBu output level. API's unique TONE control reduces potential low end "mud" in the signal, while turning on the BRIGHT switch adds additional clarity if desired. The various combinations of TONE and BRIGHT controls can eliminate the need for any EQ on the instrument while recording, keeping the signal path short and pure.
This minimal signal path eliminates the need to use a standard direct box, which many times still requires a mic input, equalizer, and a fader to get the signal to a recordable level. The 505-DI is capable of boosting any instrument to a hefty line level without additional amplifiers. Use of the 100K / 400K LOAD switch allows the tone of the pickup to be altered slightly, alternately brightening or darkening the high frequency content. When inserting an instrument with an internal preamp or a line level instrument such as a sampler or a keyboard, the 505-DI offers a 20 dB PAD switch to drop the level without loading, thereby retaining the integrity of the incoming signal.

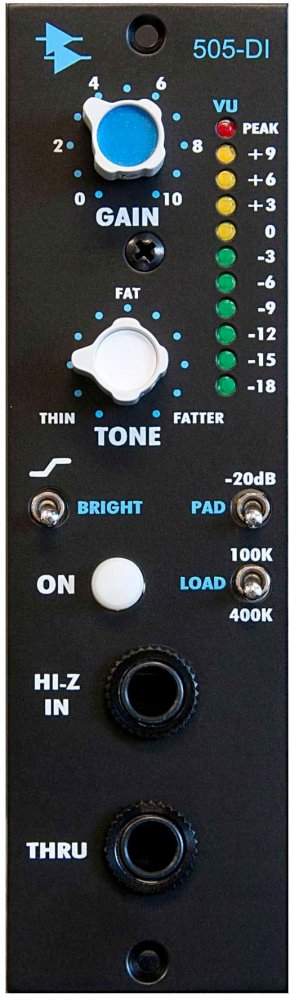

Wide Range Gain Control with 55dB of gainFront Panel Hi-Z InputFront Panel Thru routingTONE Control helps customize your soundBRIGHT Switch boosts clarity and presence10 segment LED VU meter for monitoring output levelPeak Output LED Indicator20 dB pad switch, applies to mic/line/instrument100K / 400K Switchable LoadTraditional API fully discrete circuit designUses the famous API 2520 and 2510 Op-Amps
Number of Bands: Two
Filter Type: Passive Shelf
Filter Frequency Centers
Low: 150 HzHigh: 8 kHz
Input Impedance: >380 K Ohms, Un-Balanced
Output Impedance: 75 Ohms, Transformer coupled, Balanced
Nominal Levels: -40 dBu to +20 dBu
Clipping Level: +30 dBu
Frequency Response: 0, -.4, 30 to 20 kHz
Noise: 98 dB below +10 dBm output, unweighted. 20-20 kHz
Distortion: THD: .01% (+4 dB @ 2 K)
Connector: 15 position .156 sp edge connector
Power Consumption: ±16 Volts DC, 130mA max at +24 dBu out
Manufacturer Part Number : 505-DI
