API 565

$750.00

Save 4.9%, MSRP $789.00
Free shipping in Canada. Conditions
Rental
Price/Day
1 Day
$30.00
3 Days
$20.00
5 Days
$15.00
12 Days
$10.00
28 Days
$6.50

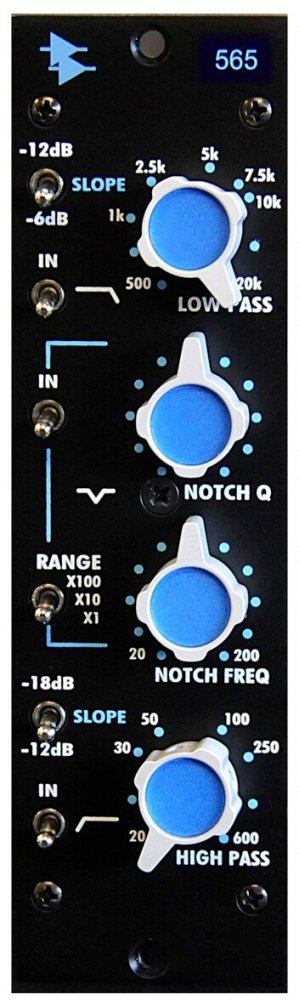

The 565 Filter Bank module has circuits that are true to the musical filters of the famed 215 module found in large format API consoles.



  • Sweepable low-pass filter (500Hz to 20kHz, -6 or -12dB slope)
  • Sweepable high-pass filter (20Hz to 400Hz, -12 or -18dB slope)
  • Variable notch filter with adjustable Q (fully sweepable between 20Hz and 20kHz)
  • Individual bypass switches for each filter section
  • Transformer Balanced Output to +28 dBu
  • Traditional API fully discrete circuit design
  • Uses API 2520 and 2510 Op-Amps as well as the same discrete transistor buffers used in the famous 550 series equalizers
  • Specifications

  • Number of Bands: Three
  • Filter Types: Sweepable Shelf Low Pass
  • Sweepable Shelf High Pass
  • Adjustable Active Twin-T Notch
  • Filter Frequencies: Low Pass: 500Hz to 20kHz
  • High Pass: 20Hz to 600Hz
  • Notch: 20Hz to 20kHz (3 selectable ranges)
  • Notch Filter Q: Variable from 0.95 to 15.3
  • Notch Filter Cut: > 40dB at minimum Q setting
  • Input Impedance: > 20K Ohms, Balanced
  • Output Impedance: 75 Ohms, Transformer Coupled, Balanced
  • Nominal Levels: -15dBu to +15dBu
  • Clipping Level: +28dBu
  • Frequency Response: +.2, -.4, 20Hz to 20kHz
  • THD+N: 0.02% (+4dBu output @ 2kHz)
  • Connector: 15 position .156" sp. edge connector
  • Power Consumption: +/-16VDC, 100mA max at +24dBu out
  • Size: 1.5" x 5.25" x 6.75" Deep
  • Manufacturer Part Number : 565
