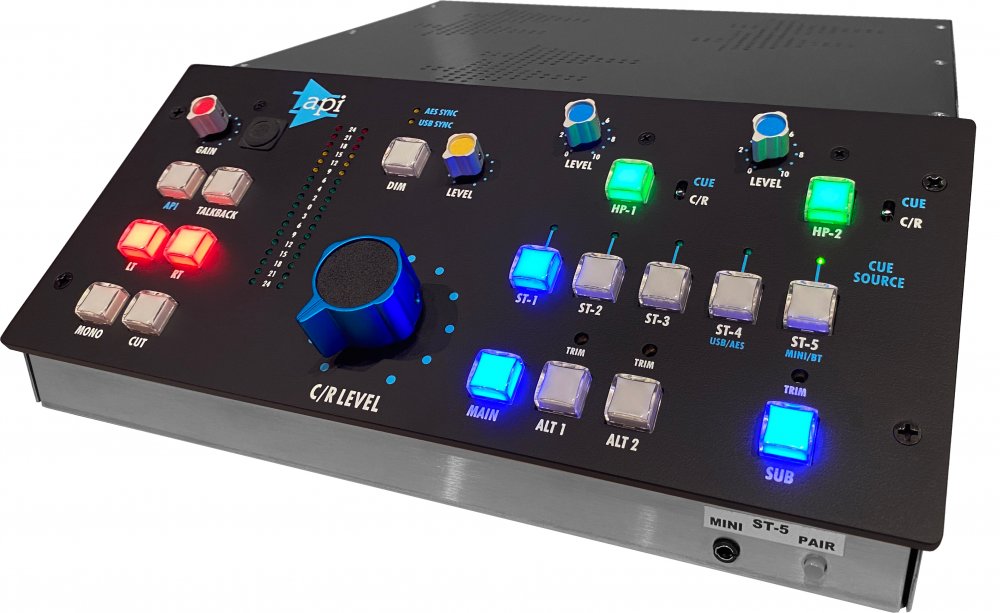

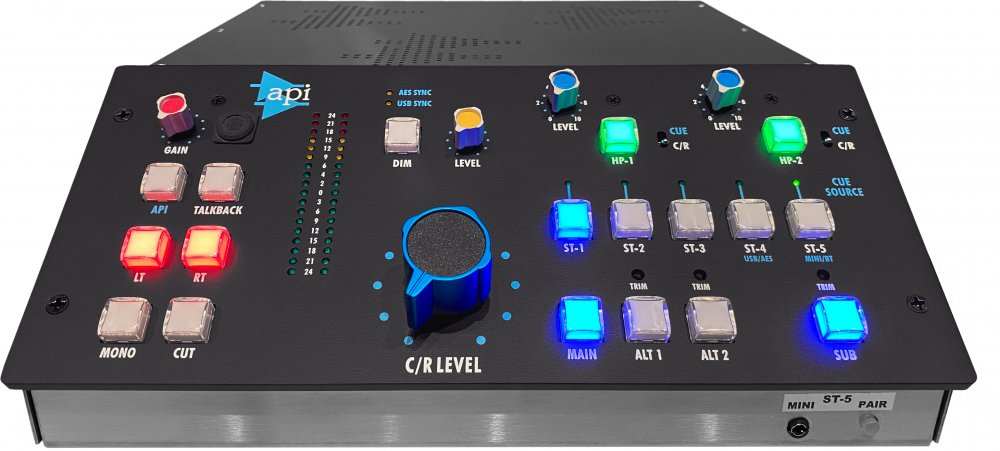

API MC531 Monitor Controller
Desktop Monitor Controller featuring one main and two altenate stereo outputs, seven selectable stereo input sources, plus built-in Talkback mic.
Building on its rich heritage of manufacturing the highest quality mixing and recording consoles, API proudly introduces the new MC531 Monitor Controller. Featuring the same level of craftsmanship found throughout API?s entire product line, the MC531 offers a stand-alone version of the monitoring functionality built into the center section of API?s legendary analog consoles. Specifically designed to include fully-featured monitor control for DAW workflows, the MC531 can integrate seamlessly into any audio production environment where functionality, ease of use and an accurate reference of each audio source is required.
Drawing inspiration from the monitor control modules of all API consoles, the MC531 features a Main and two Alternate stereo outputs, the latter having individual trims for speaker level matching. Programmable subwoofer integration allows the user to link the Sub with the Main and/or either of the Alternate outputs. With a total of seven selectable stereo input sources (three analog line-level inputs, AES, USB, plus 3.5mm and Bluetooth), the MC531 can meet the monitoring needs of almost any studio setup. Two independent Headphone outputs and a built-in Talkback mic complement the feature set. Of course, the classic API 41-detent Control Room Knob is right at your fingertips.

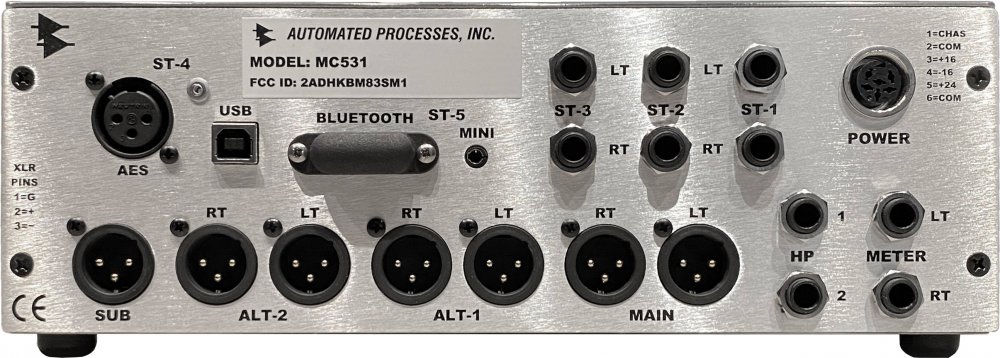

ST-1, ST-2, ST-3: 1/4" Balanced Analog, 30K Ohm Input ImpedanceST-4: Digital Input, USB Type-B, XLR female AES3ST-5: Bluetooth, Mini Jack front and rear in parallelOutput Connections:
Control Room Outputs: XLR, selectable electronic or transformer balanced, 75 OhmsMeter Output: 1/4" BalancedHeadphone: 1/4" StereoMaximum Input Level: +28dBu
Maximum Output Level: +28dBu
Frequency Response: +/- 0.5dB 20Hz to 50KHz
Signal to Noise Ration: 115db
Power Consumption: 16 Watts
Unit Size: 11.0? x 12.75? x 4.0? Shipping Size: 14.5" x 13.5" x 8.5"
Unit Weight: 8.5 lbsShipping Weight: 12 lbs
