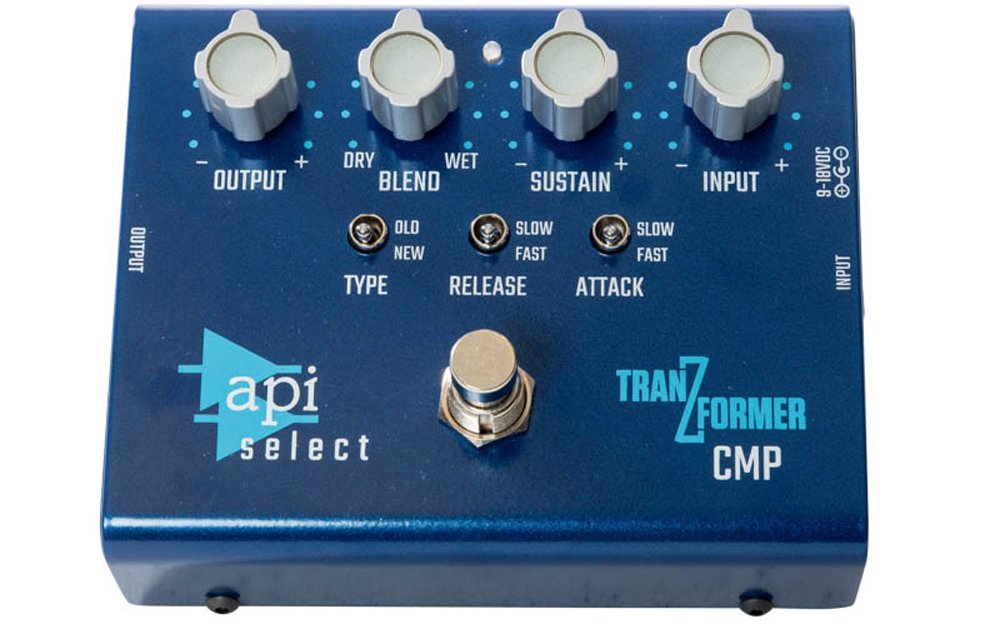

API Select TranZformer CMP
MPN #TranZformer CMP
Compressor Pedal with proprietary API 2510 opamp and signature API output transformer
The API Select TranZformer CMP provides unsurpassed sonic sculpting by incorporating key elements of a
legendary API 527 VCA-type compressor circuit into a versatile and robust guitar effects pedal. Features
include a buffered bypass in/out footswitch, adjustable attack and release times, wet/dry blend control,
selectable "feedback" and "feedforward" compressor styles, transformer output, and of course the classic
Proprietary API 2510 OpAmpSignature API output transformerAdjustable attack and release timesWet/dry blend controlSelectable feedback/feedforward compressor stylesBuffered bypass
Input connection: 1/4" Hi-Z unbalanced instrument input
Input Impedance: 1M
Bypass: Yes, buffered, 0dB
Output connections: 1/4" Hi-Z unbalanced output
Output Impedance: Hi-Z output: Less than 1k
Input Gain Control: 9dB - 30dB, Variable
Output Level Control: -inf. to 0dB, Variable
Maximum output level before clipping: +15dBu (9VDC), +22dBu (18VDC)
Frequency Response: +0dB, -1dB, 20-20kHz
Ratio (Sustain): Varies from 1:1 to 20:1 depending on compressor control setting. Attack (switched): FAST (1ms) or SLOW (10ms) Release (switched): FAST (300ms) or SLOW (1s)
TYPE (switched): New (Feed-forward), OLD (Feed-back)
Power Supply: 9-18VDC @ 100mA
Size: 4.6" x 3.8" x 3"
Size (Boxed for Shipping): 6" x 4.5" x 4.5"
Actual Weight: 1.5 lbs.
Shipping Weight: 2 lbs.
