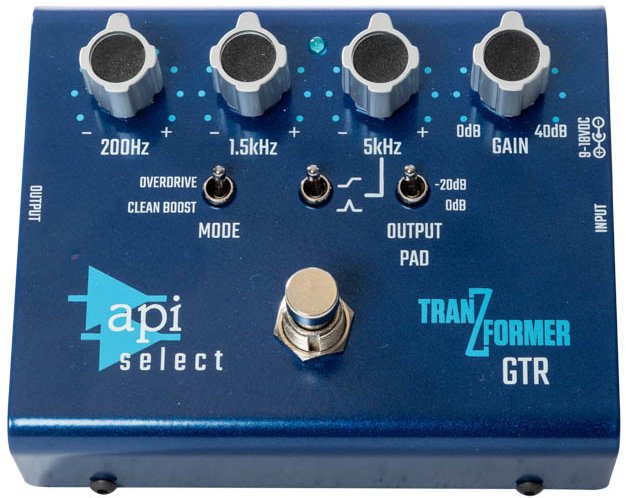

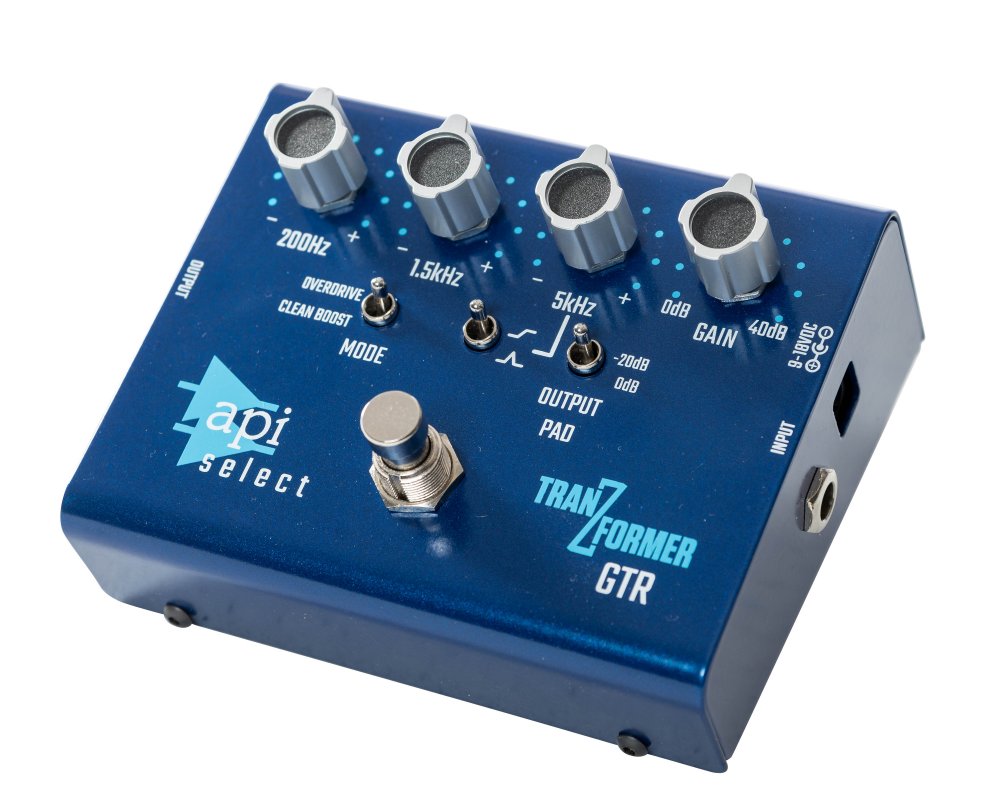

API Select TranZformer GTR
MPN #TranZformer GTR
EQ, Boost and overdrive pedal with proprietary API 2510 opamp and signature API output transformer
The API Select TranZformer GTR incorporates API's legendary EQ circuit into a versatile and compact guitar effects pedal. Designed to easily fit into your pedal board and engineered to run on standard 9V power supplies, the GTR offers +/- 15dB of gain on 3 specific frequencies. Additionally, the gain stage can be switched from Clean Boost to Overdrive mode to drive the input OpAmp and add even more tones to your arsenal. Other features include a buffered bypass, -20dB output pad, selectable peak/shelf for upper frequency range, transformer output, and of course the classic API sound.
Proprietary API 2510 OpAmpSignature API output transformer3-band EQ each with +/-15 dB of gainOpAmp overdrive circuit40 dB of gain-20 dB output padBuffered bypass
Input connection: 1/4" Hi-Z unbalanced instrument input
Input Impedance: 1M?
Bypass: Yes, buffered, 0dB
Output connections: 1/4" Hi-Z unbalanced output
Output Impedance: Hi-Z output: Less than 1k?
Input Gain Control: 0dB - 40dB, Variable
Output Pad: 0dB to -20dB, Switched
Maximum output level before clipping: +15dBu (9VDC)
Frequency Response: +0dB, -1dB, 20-20kHz (tone controls at center detent)
Tone Control: 200Hz & 1500Hz Peaking, 5kHz Shelving/Peaking (w/switch), continuously-variable boost/cut, +/-15dB range. API 2510 amplifier overdrive (Switched) placed before tone controls. Clean boost amplifies the signal with no added distortion.
Power Supply: 9-18VDC @ 100mA
Size: 4.6" x 3.8" x 3"
Size (Boxed for Shipping): 6" x 4.5" x 4.5"
Actual Weight: 1.5 lbs.
Shipping Weight: 2 lbs.
