MPN #JAM-X

$249.00

Free shipping in Canada. Conditions

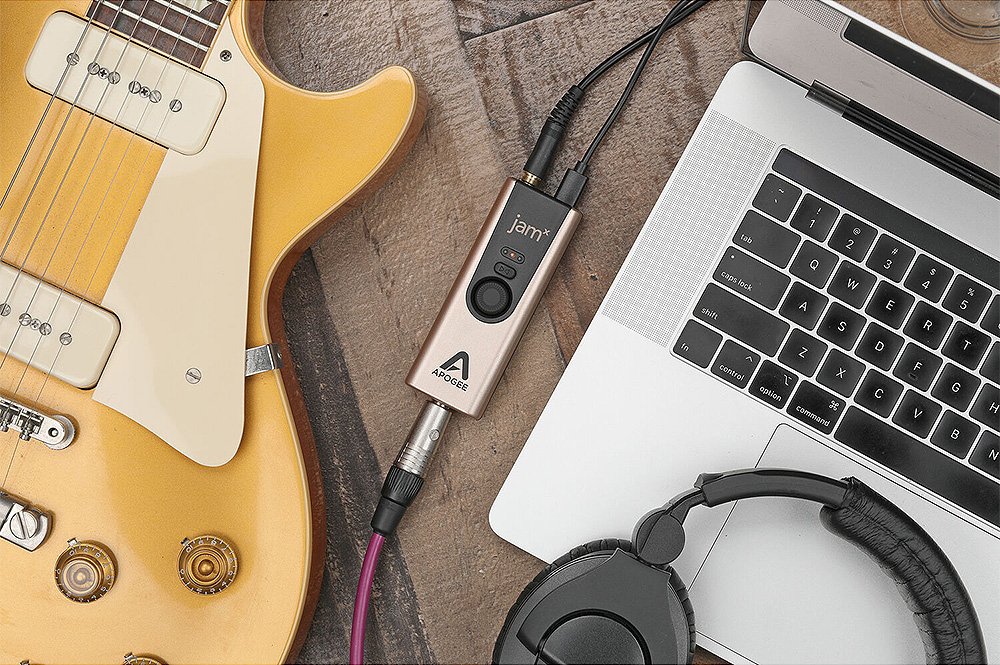

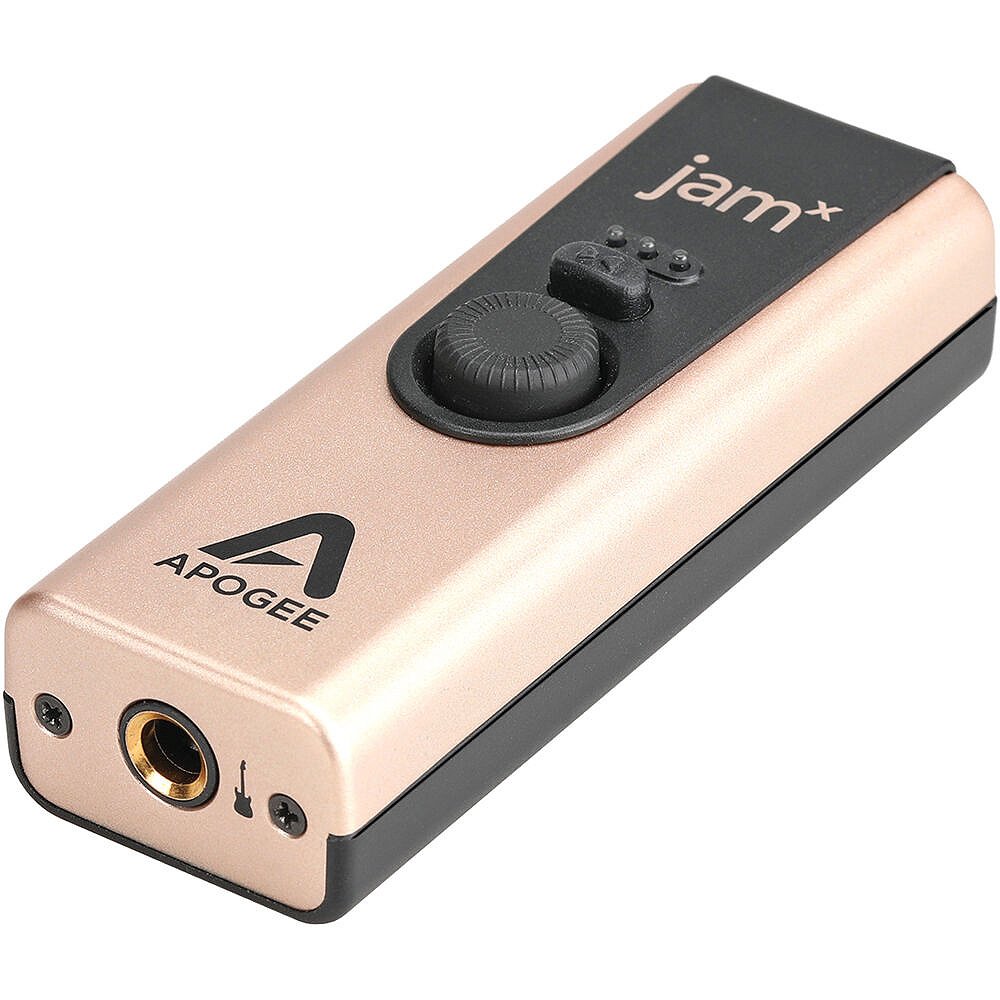

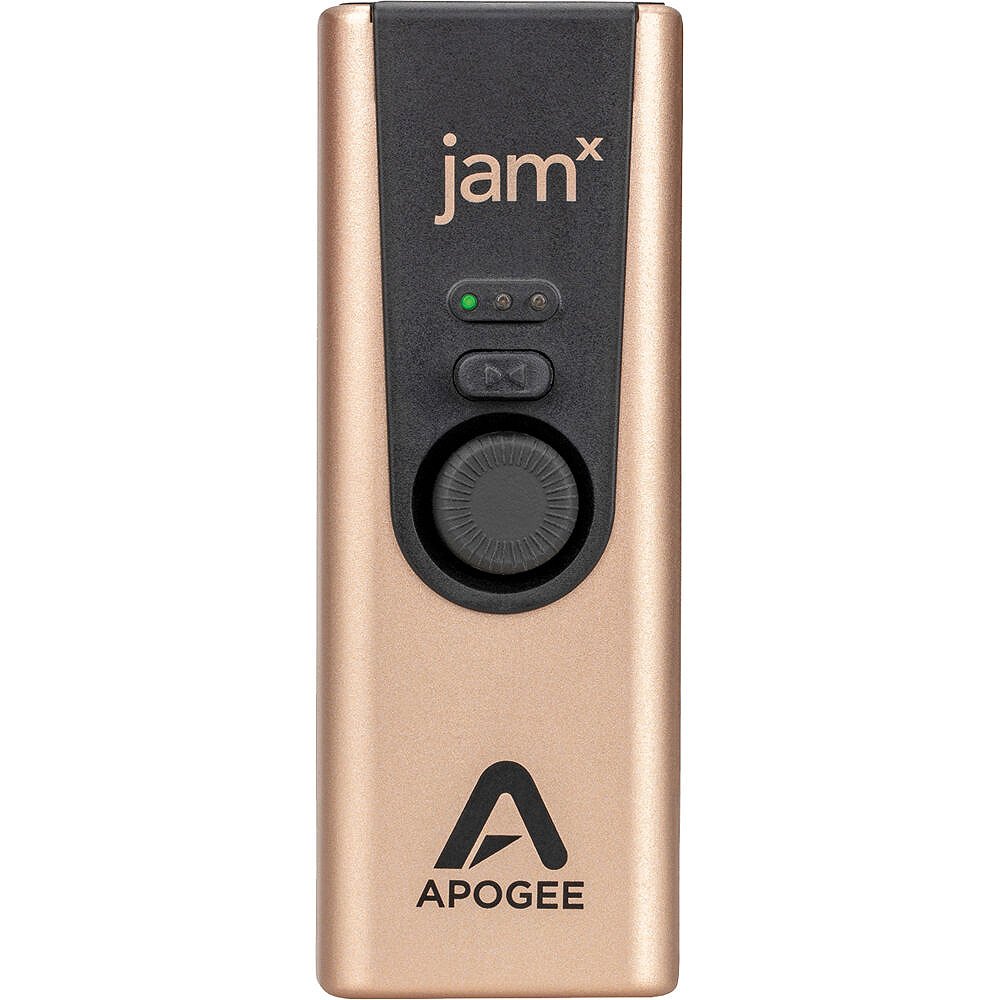

Instrument Interface for Mac, Windows and iOS



Jam X stands out as the perfect interface for capturing your finest performances anywhere, offering unparalleled simplicity and portability. Connect your headphones or monitors effortlessly to the 3.5mm output and benefit from the Blend mode for seamless low-latency monitoring during recording sessions. With its plug-and-play functionality, Jam X requires no setup"just connect it to any audio recording app on Mac, Windows, or iOS platforms. Included are USB-C and USB-A cables for added convenience.
  • Single-Channel USB Interface
  • For Instrument-Level Sources
  • 1/4" Instrument In, 3.5mm Headphone Out
  • 24-Bit / 96 kHz Recording
  • Analog Compression Circuit
  • Includes 3 Presets
  • No Configuration Needed
  • Output Blend for Zero-Latency Monitoring
  • For Mac, Windows, and iOS
  • Apogee's PureDIGITAL connection for pristine sound quality
  • Works with guitar, bass, keyboards, synths, or any acoustic instrument with a pickup
  • Makes virtual amps and effects sound more realistic
  • Stereo output connects to headphones or powered speakers
  • Blend mode minimizes delay in headphones while recording
  • No configuration, just plug in and play with any audio recording app
  • 24-bit / 96 kHz high resolution audio
  • Rugged metal body with soft touch base
  • Connect to Mac and Windows computers
  • Connect to iPad Pro with Type C port
  • Channels of I/O: 1 Input / 1 Output
    Maximum Sampling Rate: 96 kHz / 24-Bit (PCM)
    Number of Microphone Inputs: No
    Analog Audio I/O:

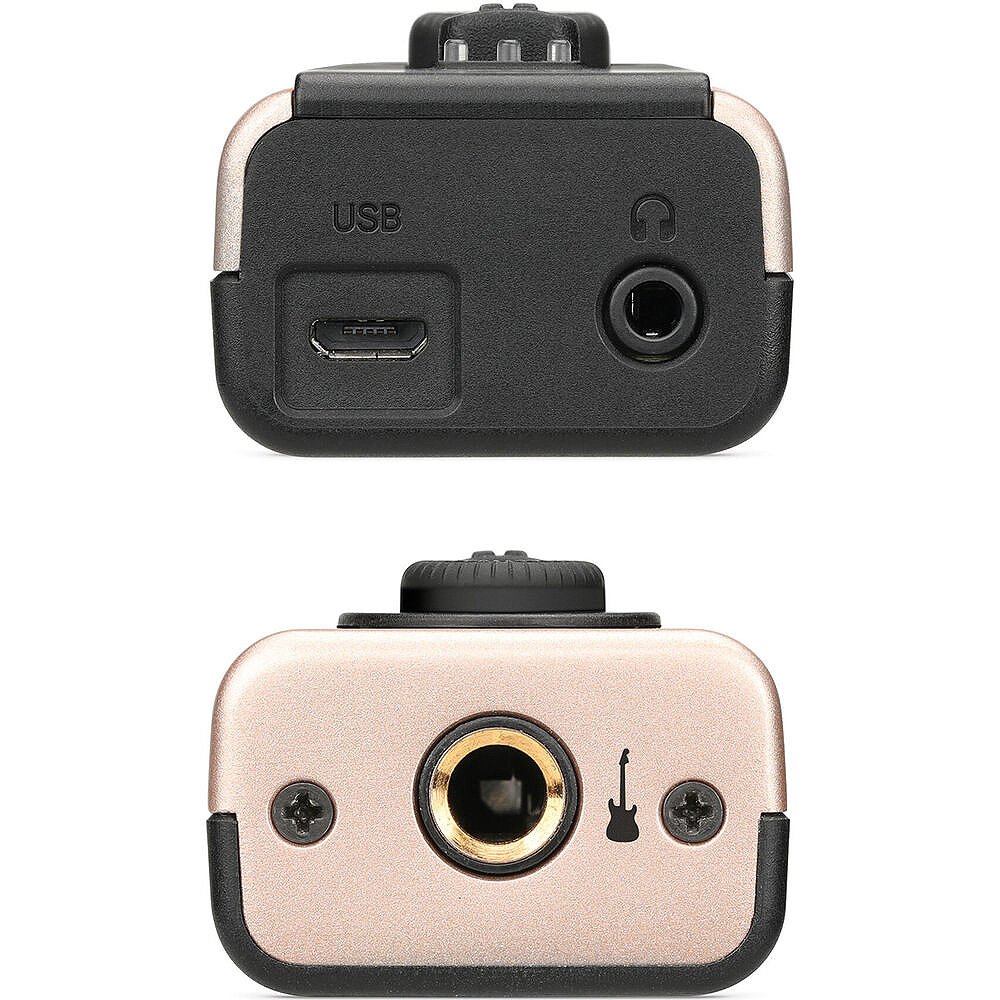

  • 1x 1/4" TS Hi-Z Input
  • 1x 1/8" / 3.5 mm TRS Headphone/Monitor Output

  • Digital Audio I/O: No
    Host Connection: 1x Micro-USB
    OS Compatibility:
  • iOS 9 or Later
  • macOS 10.14 or Later
  • Windows 10 or Later

  • Power Requirements: USB Bus Power

    Signal Processing
    Built-In DSP: No
    Maximum Sampling Rate: 96 kHz / 24-Bit (PCM)
    Number of Microphone Inputs: No
    Built-In Microphone: No
    Input Level Adjustment: 1x Knob
    Expansion Slots: No

    Connectivity
    Analog Audio I/O:
    1x 1/4" TS Hi-Z Input
    1x 1/8" / 3.5 mm TRS Headphone/Monitor Output

    Phantom Power: No
    Digital Audio I/O: No
    Host Connection: 1x Micro-USB
    Host Connection Protocol: Not Specified by Manufacturer
    USB (Non-Host): No
    Sync I/O: No
    Network I/O: No
    MIDI I/O: No

    Performance
    Maximum Input Level: +18 dBu
    Headphone Output Power:
  • 1/8" / 3.5 mm
  • 100 mW per Channel into 32 Ohms (Max)
  • Digital Audio
  • Sample Rates: 96 kHz
  • Sample Rate Conversion: No
  • Bit Depths: 24-Bit
  • Sync Sources: No

  • Audio Storage & Playback
    Media/Memory Card Slot: No

    Compatibility
    OS Compatibility:
    iOS 9 or Later
    macOS 10.14 or Later
    Windows 10 or Later

    RAM Requirements: 2 GB
    Mobile App Compatible: No
    Required Hardware: Available USB-A Port

    Power
    Power Requirements: USB Bus Power

    Physical
    Dimensions: 4 x 1.5 x 0.95" / 10.16 x 3.81 x 2.41 cm
    Weight: 0.2 lb / 0.1 kg

    Packaging Info
    Package Weight: 0.505 lb
    Box Dimensions (LxWxH): 8.3 x 5 x 2.3"
