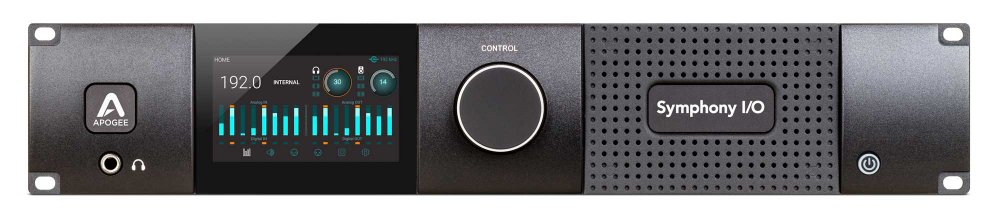

Symphony I/O Mk II | Dante + PTHD Ultimate Sound Quality Meets the Most Popular Audio-Over-IP Network
Symphony I/O Mk II is a multi-channel audio interface featuring Apogee's flagship AD/DA conversion, modular, configurable I/O (up to 32 inputs and outputs), intuitive touchscreen display and optional world-class microphone preamps. Designed to deliver professional sound quality for audio recording, mixing and mastering, Symphony I/O Mk II is the ultimate music production centerpiece for any modern studio. And now, with the Symphony I/O Mk II Dante option card and a simple ethernet cable, Symphony I/O Mk II can be easily connected and shared across post production, broadcast, live sound or recording studio networks, unleashing legendary sound quality on the world's most popular audio-over-IP solution. The Symphony I/O Mk II Dante option card also includes Pro Tools HD connectivity for integration of Pro Tools HD systems into a Dante network environment. No other Dante-enabled audio interface offers this level of quality, flexibility and modularity.
Modular and Configurable
The Symphony I/O Mk II Dante option card uses Audinate's Brooklyn II module which features plug-and-play media networking for up to 32 bidirectional channels at 96kHz and 16 bidirectional channels up to 192k. The system can be configured with a number of custom options ranging from 8-32 analog I/O channels. Symphony I/O MK II Dante allows up to 32 channels with ProTools and redundant Dante connectivity to be fitted into a single two space rack device providing the smallest footprint available with this feature set.
Pro Tools HD Over IP Made Easy
With the included Pro Tools HD peripheral port, Symphony I/O Mk II lets you route audio between your Pro Tools session, the Dante network and Symphony I/O modules, no need for an additional, stand-alone box. Apogee Network Control Software Symphony I/O Mk II features Apogee Network Control Software. Apogee Network Control gives you remote, software access to all Symphony I/O Mk II settings. From your computer you can calibrate all channels, set output monitor levels, select analog level type, adjust mic-pre gain and more. Drag and drop setup and color coding let you create custom view that let you see up to 6 devices in a single window. Apogee Network Control works on macOS and Windows 10 computers and is compatible with the Apogee Control hardware remote.
Developed by Audinate, Dante enables digital audio distribution over standard Ethernet networks. Dante allows audio, control, and all other data to coexist on the same network in an ultra-low latency environment and with near-perfect synchronization. The Dante Controller software and network management features make even the most complex network configuration quick and easy.
Control all Symphony I/O Mk II settings from calibration to monitors to mic preampsEasy drag-and-drop setup and color coding organization featuresView up to 6 devices in one windowView up to 32 inputs and outputs per device simultaneouslyView up to 192 inputs and 192 outputs per tab simultaneouslySee critical network and system status information at a glancemacOS and Windows 10 compatible
The Superior Sound Solution for any Audio-Over-IP Application
Post ProductionLive SoundBroadcastHouse of WorshipRecording StudioEducation
Analog to Digital:
THD+N: -115dB @ 22dBu (0.00020%) unweightedDynamic range: 122dB A weighted
Maximum input levels
+4dB setting: +24dBu-10dB setting: +6dBV
Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)Input impedance: 10K
Digital to Analog:
THD+N: -119dB @ 21dBu (0.00014%) unweightedDynamic Range: 126dB A weightedMax output levels - to +24dBuFrequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)Output impedance: 50 OhmOutputs are balanced through Apogee's proprietary Perfect Symmetry Circuitry (PSC)
1 stereo 1/4 headphone output on front panel
-110dB @19dBu into 600 Ohm (=80mW)-101dB @14dBu into 32 Ohm (=470mW)
Dynamic Range: 121db A weightedOutput: Apogee's proprietary Constant Current Drive provides smooth frequency response with any headphones
90-240VAC, 50-60Hz, 150W
Thunderbolt: Mac OS only 10.10 and aboveHD: Any Mac or PC running Pro Tools HD 9 or greater
Thunderbolt: Logic Pro or any Core Audio compatible application on Mac OS XHD: Pro Tools HD 9 or greater
Symphony I/O Mk II InterfacePower CableQuick Start GuideWarranty Booklet
Symphony I/O Mk II Dimensions:
Inches: 17.75 (19 with Rack Ears) x 11.5 x 3.5Centimeters: 45 (48.26 with Rack Ears) x 29.2 x 8.9
Symphony I/O Chassis BoxInches: 22.875 x 17.75 x 9.25Centimeters: 58.1 x 45.1 x 23.5I/O Module BoxInches: 13.75 x 12.25 x 3.25Centimeters: 34.9 x 31.1 x 8.3
GTIN (UPC/EAN) : 805676302249
Manufacturer Part Number : SYM2-24X24S2-DANTE
