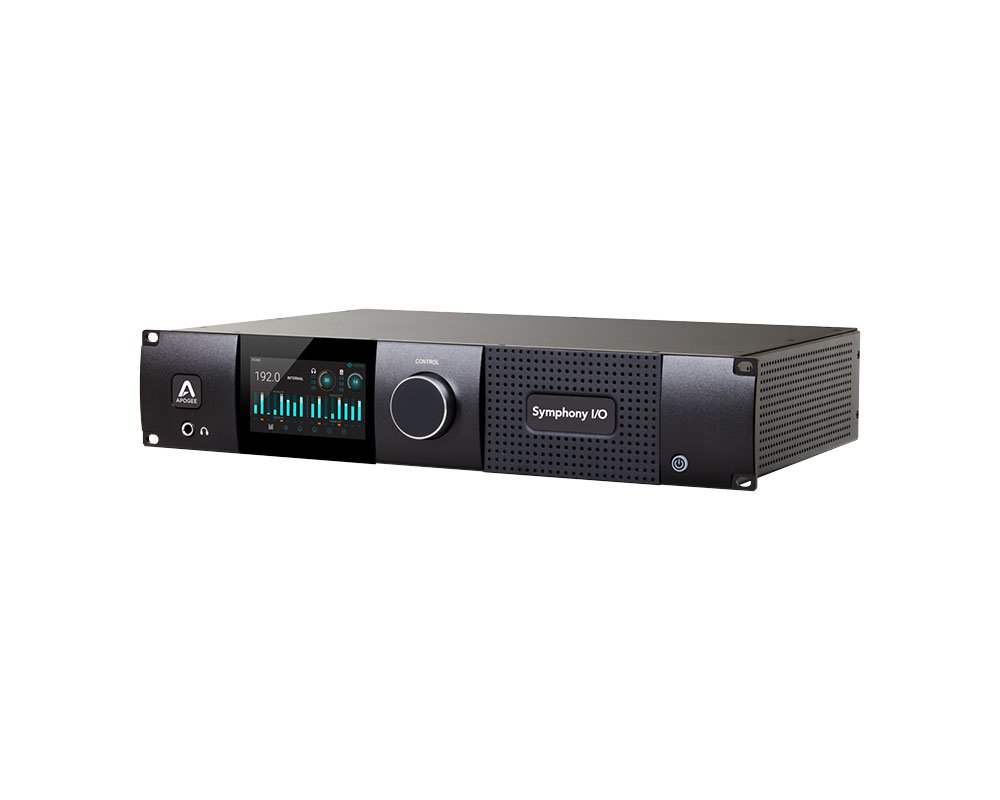

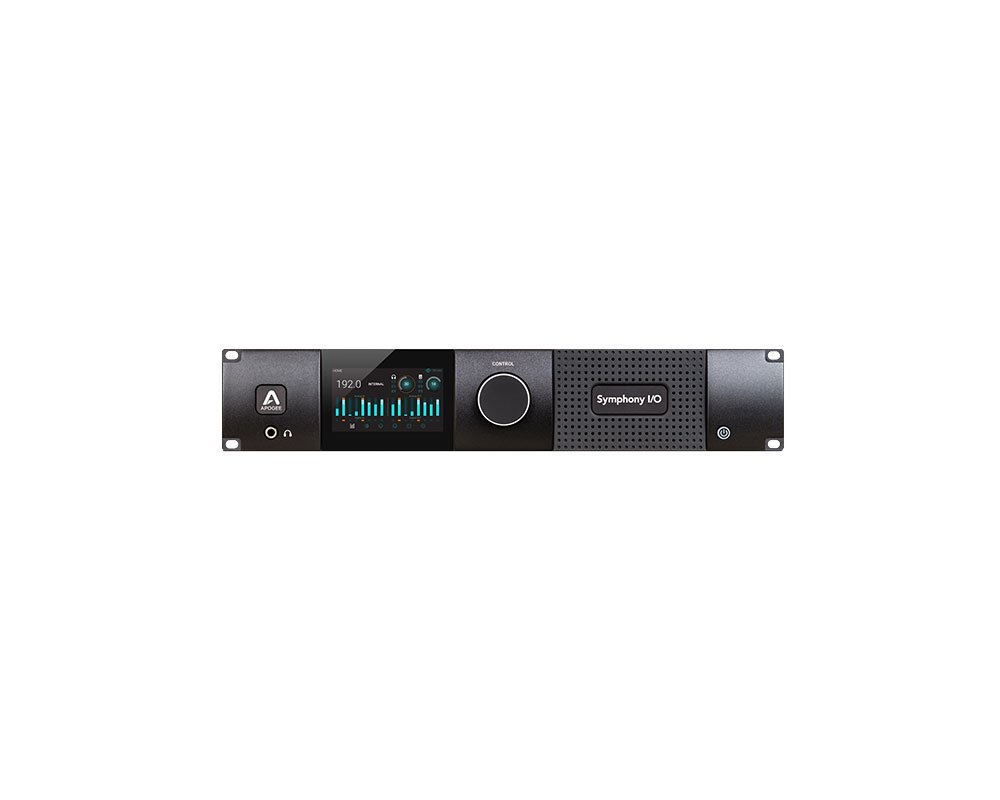

Apogee Symphony I/O MkII 8X8MP-8X8MP-PT
UPC/EAN #805676303079
MPN #SYM2-8X8MP-8X8MP-PT
16 mic/line, 16 line out, AES optical SPDIF coax, Pro Tools HD Plus, modular I/O, Dolby Atmos ready, premium AD/DA, touchscreen, ultra-low latency
The Symphony I/O MkII 8X8MP-8X8MP-PT is a top-tier audio interface configured for Pro Tools HD systems, featuring two 8-8MP mic/line I/O modules for a total of 16 microphone or line-level inputs and 16 analog outputs. With DB25 connectors and integrated AES, optical, and S/PDIF digital formats, this unit is a powerful solution for professional studios demanding flexible I/O and pristine audio performance.
Engineered with Apogee's flagship AD/DA conversion and Pro Tools HD Plus connectivity, this model delivers the fidelity, speed, and integration necessary for demanding multitrack workflows, including Dolby Atmos and other immersive formats. Its modular design, intuitive touchscreen control, and support for up to 32 channels make it a future-proof choice for high-end recording, mixing, and mastering environments.
Features
Includes 16 premium mic/line combo inputs with built-in preamps.Offers 16 balanced line outputs for flexible routing and monitoring.Equipped with AES, optical, and SPDIF coaxial digital I/O.Designed for seamless integration with Pro Tools HD systems.Dolby Atmos ready, with up to 32 speaker output configuration support.Modular design with dual 8x8 mic/line I/O cards and intuitive touchscreen.Delivers industry-leading AD/DA conversion for high-end audio fidelity.Supports ultra-low latency and professional multitrack workflows.Built in the USA and optimized for top-tier studio environments.
Specifications
General Specifications:
Product: Apogee Symphony Mk IIModel: Symphony I O MkII 8X8MP 8X8MP PTConfiguration: 16 Mic Line Inputs, 16 Line Outputs, AES Optical S PDIF Coaxial I OConnectivity: Pro Tools HD PlusDisplay: Intuitive touchscreen interfaceModular Design: Two 8x8 Mic Line I O ModulesDolby Atmos Ready: Compatible with immersive audio workflowsPower: 90 to 240 VAC, 50 to 60 Hz, 150 WBuild: Designed and built in the USA
Analog to Digital Conversion:
THD plus N: minus 115 dB at 22 dBu unweightedDynamic Range: 122 dB A weightedMax Input Levels: plus 24 dBu at plus 4 dB setting, plus 6 dBV at minus 10 dB settingFrequency Response: 44.1 kHz to 20 kHz plus minus 0.05 dBInput Impedance: 10 kilo Ohm
Digital to Analog Conversion:
THD plus N: minus 119 dB at 21 dBu unweightedDynamic Range: 126 dB A weightedMax Output Levels: infinity to plus 24 dBuFrequency Response: DC to 20 kHz plus minus 0.05 dBOutput Impedance: 50 OhmBalanced Outputs: Apogee Perfect Symmetry Circuitry
Headphone Output:
Connector: 1 stereo quarter inch front panelTHD plus N: minus 110 dB at 19 dBu into 600 Ohm, minus 101 dB at 14 dBu into 32 OhmDynamic Range: 121 dB A weightedOutput Design: Apogee Constant Current Drive
I O Module Details:

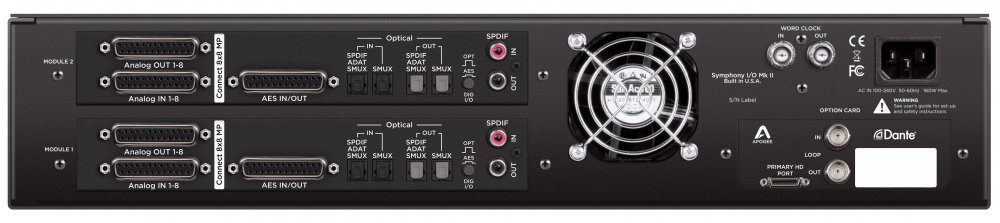

Each 8x8MP Module: 8 Mic Line Inputs and 8 Line Outputs via 2 DB25 connectorsDigital I O per Module: AES, Optical, and S PDIF Coaxial connectionsTotal I O: 16 Mic Line Inputs, 16 Line Outputs
Platform Options:
Connectivity: Pro Tools HD PlusThunderbolt and SoundGrid available on other models
Immersive Audio Support:
Monitor Workflows: Up to 32 speaker outputsCompatibility: Dolby Atmos and Sony 360 Reality Audio
Operating System Compatibility:
Pro Tools HD HDX: Mac or PC with Pro Tools HD 9 or greaterSymphony Mk II Dante: Also PC compatible
SKU and Configuration:
SKU 1: SYM2 CONNECT 8SKU 2: CONNECT 8 PTHD PLUSTotal Configuration: Pro Tools HD Plus interface with two 8x8 Mic Line I O ModulesDolby Atmos Ready Configuration
