Aputure amaran F22c (A-Mount)
A 2'x2' RGBWW LED flexible fabric light with passive cooling for silent operation, 0-100% dimming, 15 lighting effects, on-board, DMX and bluetooth control
FULL-COLOR FLEXIBLE MAT

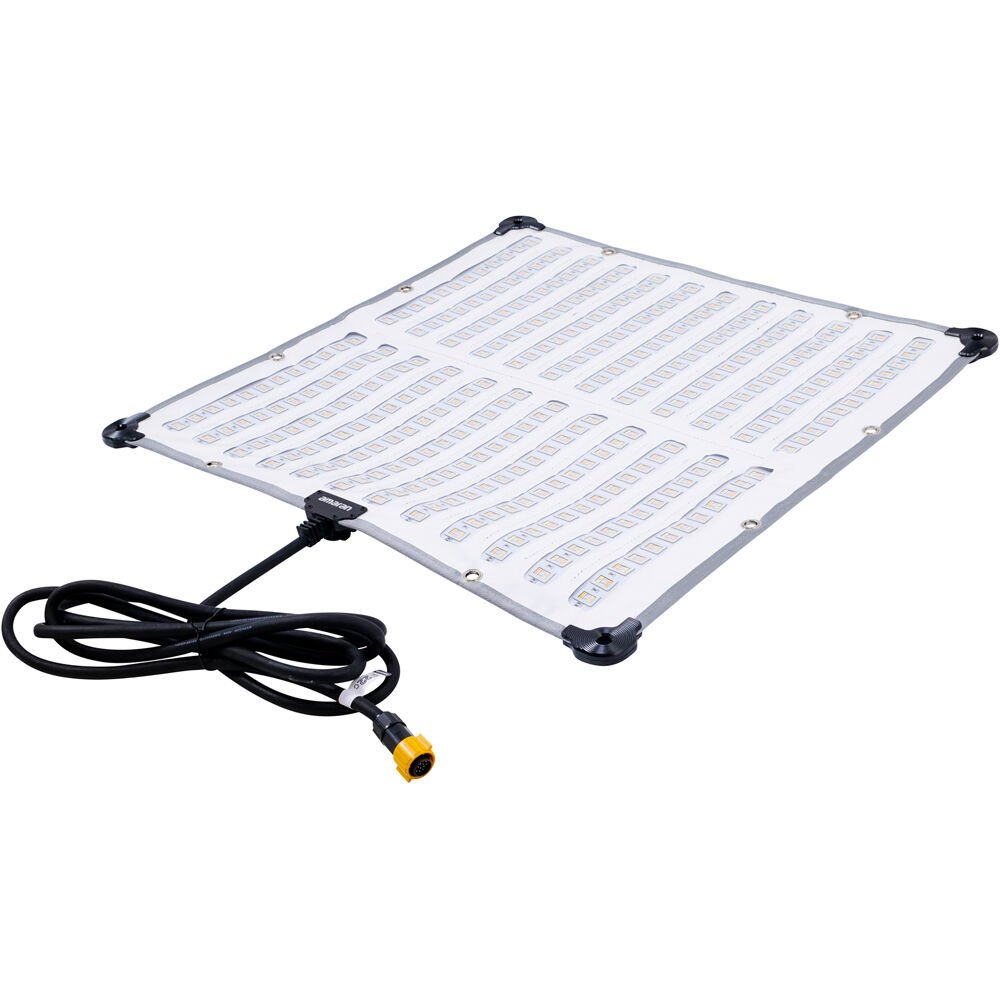

The amaran F22c is a 2?x2? ultra-lightweight flexible LED mat that offers outstanding light output and color rendering for indie filmmakers, videographers, content creators, and photographers who need a versatile and flexible lighting solution or want to add a splash of color to their scene.
2X2 FORM FACTOR
As an ultra-light, ultra-thin fabric light, the F22c is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a simple, soft light that can fold compactly, it is the perfect close-up key light. Its traditional 2?x2? form factor allows the F22c to provide ample surface area for an innately soft light, while still producing enough intensity to impact the scene.
FULL COLOR CONTROL
With its integrated RGBWW chipset, the F22c flexible panel grants you full control over creative lighting decisions, or adding a splash of color to your scene through its tunable CCT from 2,500K to 7,500K with green-magenta adjustment, 360º HSI control, 46 color gel presets, 15 built-in lighting effects, and 4 user-configurable preset buttons.

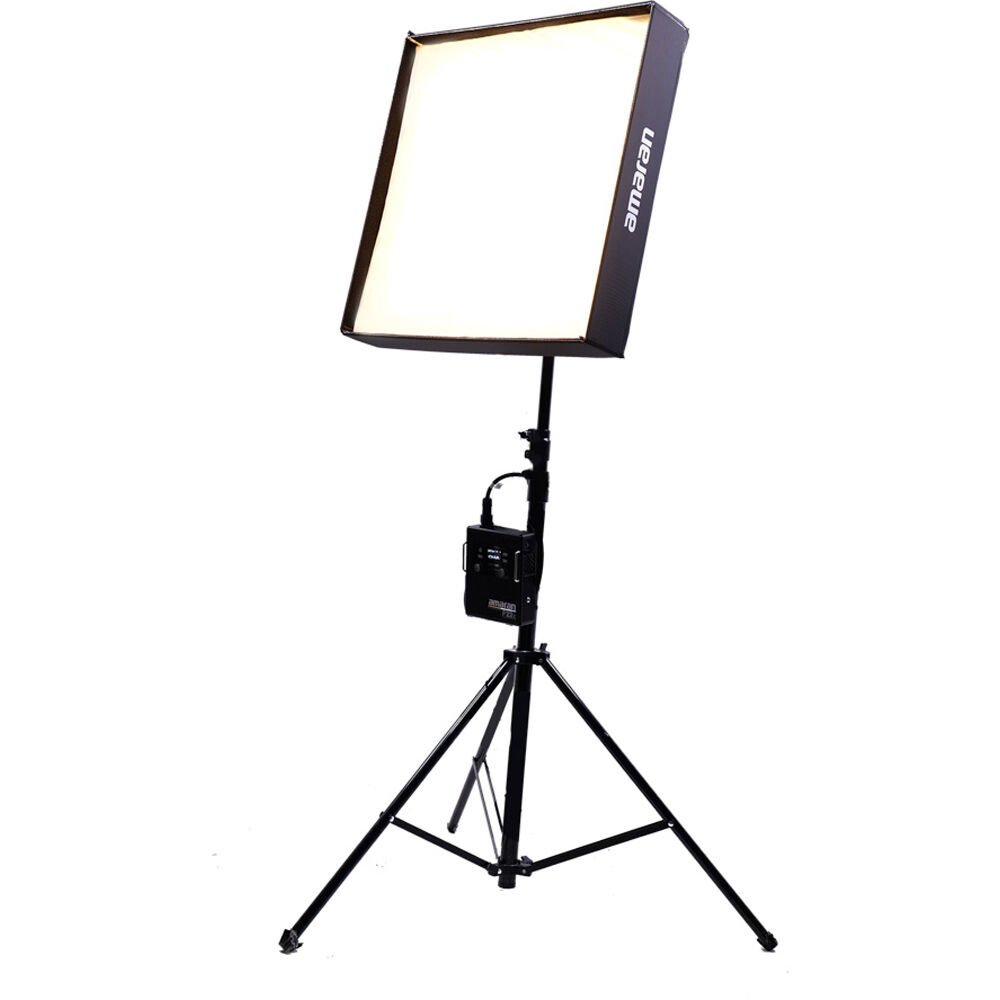

The F22c and its compact setup design is ideal for all types of filmmakers and creators. The F22c includes a compact, folding X-Frame to quickly build the F21c into a rigid panel with ease. This frame can be attached directly to a C-Stand grip head using the Straight Baby Pin adapter, or onto any standard light stand with the included Right Angle Baby Pin and tilting stand mount.

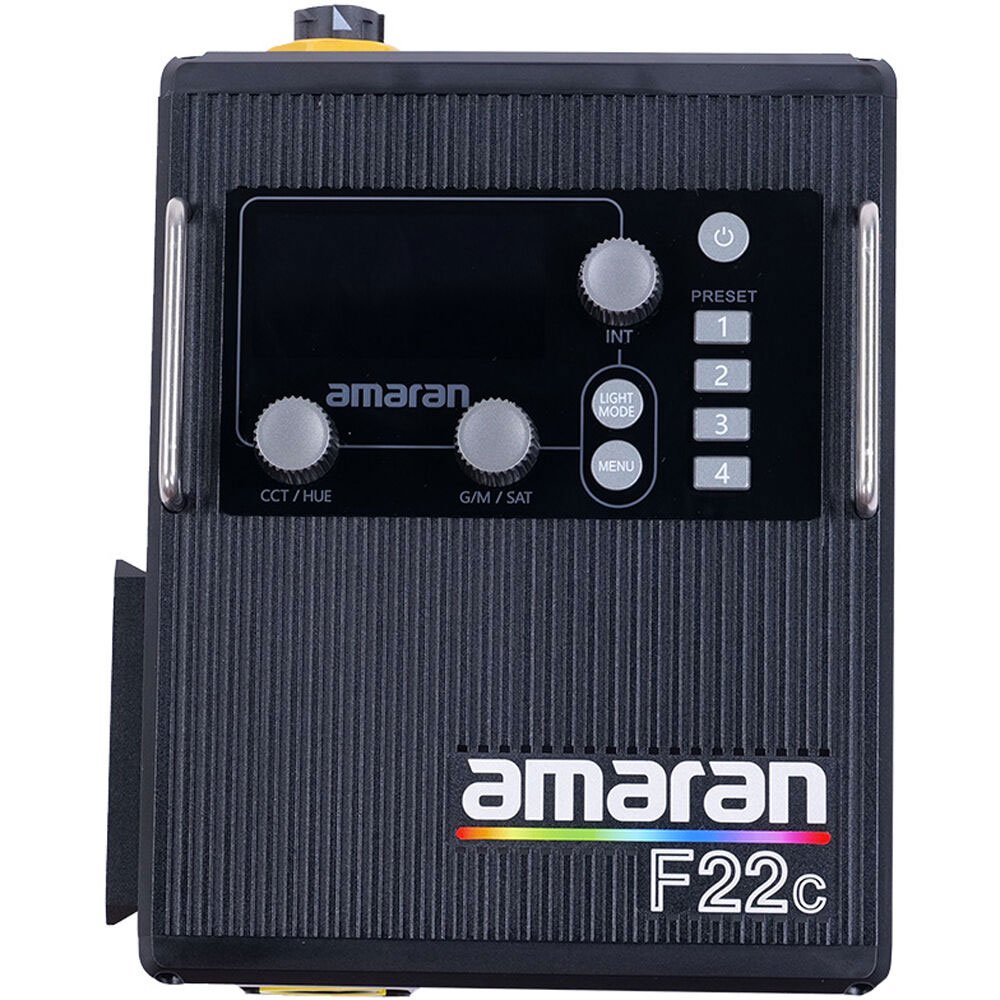

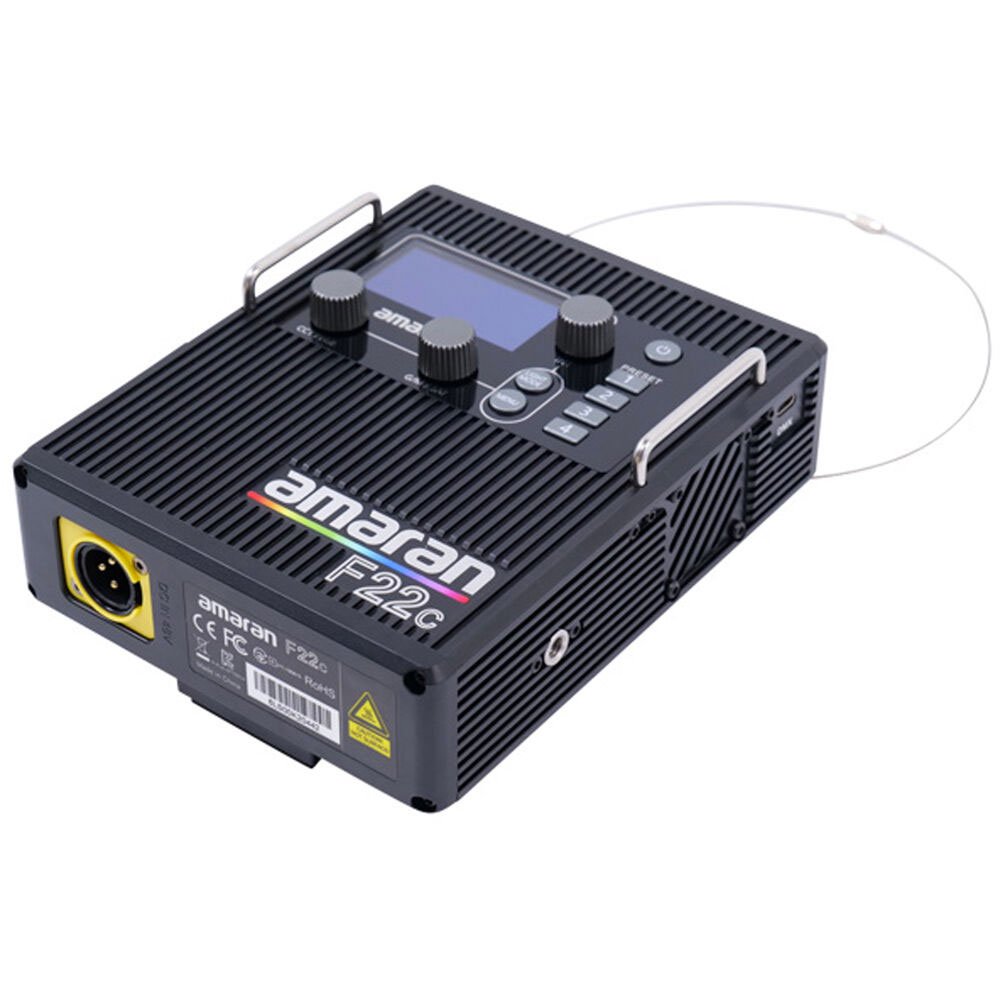

For creators looking for a compact and portable lighting solution with a seamless user experience, the F22c control box features a multi-voltage V-Mount or Gold-Mount battery plate compatible with 14.4V/26V/28.8V/48V batteries. Full output can also be achieved using the AC power supply.
REDEFINED SOFT SOURCE

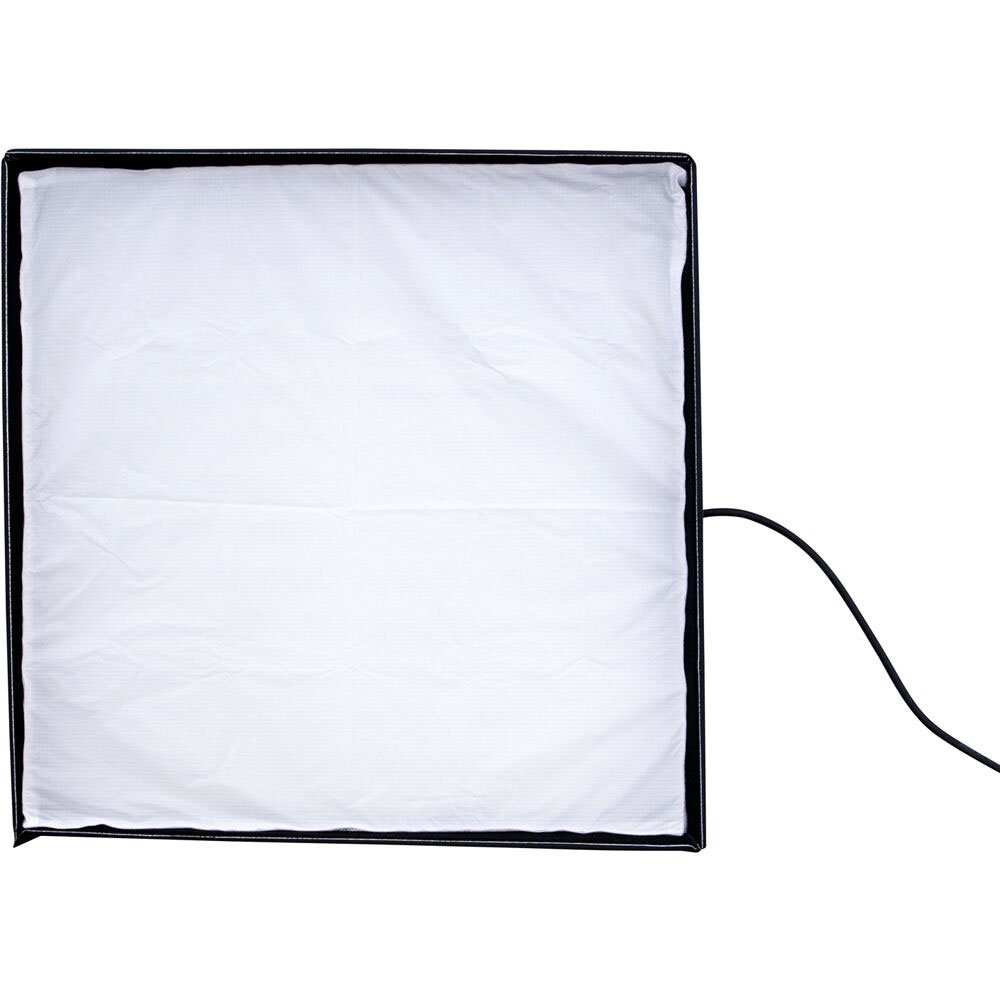

To add a beautifully controlled soft light to your scene, attach the included softbox, one of two strengths of diffusion cloths, or the included light control grid using the integrated hook-and-loop fabric to further finesse your lighting design. The F22c can also be combined with the amaran F22 Lantern with light control skirt to extend the fixture as a volumetric lantern or pancake light.
SIDUS LINK APP
For content creators who prefer wireless controls to spend more time behind or in front of the camera, the Sidus Link app will allow you to utilize tools unique to the Aputure and amaran ecosystems to control the F22c. With the Source Match, Color Picker, Gel Control and Custom FX functions all in the palm of your hand, choosing the perfect color for the scene has never been easier.
In addition to controlling your lighting design from Sidus Link, the F21c can be controlled externally via wired DMX with the USB-C to 5-Pin DMX512 In & Out Adapter*, adding professional-level control to your favorite flexible light mat.
Output: 6420 Lux at 3.3' (5600K)2500-7500K CCT; HSI Color Control2 x 2' Mat; AC/DC OperationCRI 95 | TLCI 98 | CQS 96On-Board, DMX, and Bluetooth ControlPassive Cooling for Silent Operation0-100% Dimming, 15 Lighting EffectsMulti-Voltage AC, Gold Mount BatteryIncludes Softbox Frame, Diffusers & Grid
CCT: 2500K~7500KCRI: ?95TLCI: ?97CQS: ?96TM-30 RF (Average): 94TM-30 RG (Average): 102SSI (Tungsten): ?83SSI (D56): ?74Color Chipset: Red, Green, Blue, Warm White, Cool WhiteBeam Angle (Control Grid): 45°Max Power Output: ?200WMax Power Consumption: ?240WOperating Current: 5AAC Power Supply: 48V DCD-Tap Battery: 12-28.8V DCBattery Compatibility: 16.8V, 26V, 28.8VDC Input: (3m) DC Self-lockingAC Power Cable: Self-locking IEC C13 AC Power Cable (4m)Operating Temperature: -10°C ~ 40°C / -4°F ~ 113°FControl Methods: On-board, Sidus Link App, DMXConnectivity: Bluetooth 5.0 (Sidus Mesh)Bluetooth Operating Range: ?80m / 262.5ftFirmware Upgradeable: Sidus Link OTADisplay Type: OLEDFixture Cooling Method: Natural DissipationControl Box Cooling Method: Natural DissipationUmbrella Holder: YesSoft Box: YesMounting: 1/4-20in * 3, Tilting Support ColumnEstimated LED Lifetime (L70): 50,000 HoursEstimated Color Shift Over Lifetime (CCT): 2% over 6,000 HoursCertifications: CE, FCC, cTUVus, KC, NCC, ROHS
180° at 3200K: 534 fc / 5750 Lux at 3.3' / 1 m*, 65 fc / 703 Lux at 9.8' / 3 m180° at 5600K: 596 fc / 6420 Lux at 3.3' / 1 m*, 73 fc / 790 Lux at 9.8' / 3 m180° at 7500K: 657 fc / 7080 Lux at 3.3' / 1 m*' 80 fc / 870 Lux at 9.8' / 3 m
Fixture (No Accessory): 60 x 60 x 0.5cm / 23.6 x 23.6 x .2inFixture (With Softbox): 62.5 x 62.5 x 10.5cm / 24.6 x 24.6 x 4.13inAperture: 52 x 51cm / 20.4 x 20inControl Box: 19 x 15 x 7cm / 7.4 x 5.9 x 2.7inCarrying Case: 66 x 35 x 10.5cm / 25.9 x 13.7 x 4.1in
Fixture (No Accessory):0.88kg / 1.9lbsFixture (With Softbox): 2.83kg / 6.25lbsControl Grid: 116g / 0.26lbsControl Box: 1.2kg / 2.6lbsPower Supply: 1.1kg / 2.4lbsMounting Bracket: 0.66kg / 1.4lbsTotal w/ Case: 7.92kg / 17.45lbs
