UPC/EAN #6971842185122     MPN #AP10012A10


Free shipping in Canada. Conditions

1-foot RGBWW battery-powered LED pixel tube with OnBoard, DMX and Bluetooth control, 0 - 100% dimmind, 16 lighting effects and passive cooling for silent operation

The amaran PT1c is an ultra-portable 1-foot battery-powered pixel tube for creators and filmmakers. As amaran's first-ever pixelated tube light, it features multiple pixels, RGBWW color quality, Sidus Link app control, and no-hassle mounting solutions, allowing you to unleash new creative possibilities.

The PT1c shines as an effects, fill, eye light, and so much more. Whether used for practical lighting backgrounds, producing unique lighting effects for long-exposure photography, creating linear reflections over intricate sets for product cinematography, or adding visual interest to stylized music videos and commercials, the PT1c grants you the freedom to get creative and bring your lighting designs to life.

With 4 lighting zones that can be independently controlled, the PT1c's pixel capabilities introduce new and exciting avenues to the amaran family and outshine other lights with a new layer of effects. Use its 7 pre-programmed Pixel FX to create some truly unique and dynamic pixelated effects across its multiple pixels and take your creations to the next level.

amaran consistently delivers stellar color quality with its RGBWW LED chipset, and the Pixel Tubes are no different. Adjust the hue, saturation, and intensity of your pixel light with white point CCT tunability from 2,700K to 10,000K with full plus/minus green controls. And with a CRI of 95, TLCI of 98, and Tungsten SSI of 85, you can be sure that the Pixel Tubes will elevate your productions with accurate colors.

The PT1c is powered by a removable 9.6Wh Lithium-ion battery for up to 70 minutes of run time, and can be charged via USB-C for absolute ease of use. Unlike the high-capacity battery grips of the amaran T2c and amaran T4c, the integrated batteries can improve your workflow on-set by granting you the flexibility of placing or hiding the LED Pixel Tubes virtually anywhere.

For enhanced versatility, the PT1c's rotatable end caps can be independently swiveled with 180 degrees of rotation to ensure that it is always in the perfect position. And with built-in magnets and integrated 3/8-16in screw threads on each end cap, creating interesting visuals and set pieces have never been easier.

With the power of the Sidus Link Bluetooth app, you can control all of your Aputure and amaran lights in a scene, activate stunning lighting effects, and ensure that the Pixel Tubes are always up to date. For more advanced console controls, the new amaran USB-C to DMX Adapter* unlocks DMX control while simultaneously charging your pixelated tube light, making your workflow even more efficient and seamless.

For creators who want an extra touch of lighting control and to eliminate spill from the PT1c, you can attach a collapsible 45º light control grid* via hook-and-loop straps to hone the quality of the light to perfection. The Pixel Tubes can also be left bare with its wide 180° beam angle, giving you more coverage in your shot design.
  • Output: 95 Lux at 3.3' (5600K, 180°)
  • 2700 to 10000K; CCT RGB Control
  • Onboard, DMX, and Bluetooth Control
  • CRI 95 | TLCI 98 | CQS 96 | SSI 75
  • 0 to 100% Dimming, 16 Lighting Effects
  • 1' Length; Li-Ion Battery Operation
  • Passive Cooling for Silent Operation
  • Fully Green-Magenta Tunable
  • Includes Carry Case
  • CCT: 2,700K - 10,000K
  • CRI (@5,600K): 95
  • TLCI (@5,600K): 98
  • CQS (@5,600K): 96
  • SSI (D56): 75
  • SSI (Tungsten): 85
  • TM-30 RF (@5,600K): 92
  • TM-30 RG (@5,600K): 100
  • Max Power Output: 6W
  • Max Power Draw: 8W
  • Pixel Mapping: 4 Pixels
  • Lumens: 370lm
  • Beam Angle: 180º
  • Charging Input: USB Type-C
  • Battery Voltage: 3.7V
  • Battery Capacity: 2600mAh, 9.6Wh - Approx.
  • Battery Runtime: Approx. 70 Mins @ 100% Output, Approx. 95 Mins @ 75% Output, Approx. 139 Mins @ 50% Output, Approx. 369 Mins @ 10% Output
  • Charge Time: Approx. 110 Mins (5V/2A)
  • Operating Temperature: -10ºC ~ 40ºC / 14ºF ~ 104ºF
  • Firmware Upgradeable: Sidus Link
  • Wireless Operating Range (Bluetooth): ?80m / ?262.5ft
  • Screen Type: TFT
  • IP Rating: IP20
  • Cooling Method: Passive Cooling

  • Photometrics
  • 180° at 2700K: 8 fc / 87 Lux at 3.3' / 1 m*
  • 180° at 3200K: 8 fc / 88 Lux at 3.3' / 1 m*
  • 180° at 4300K: 8 fc / 91 Lux at 3.3' / 1 m*
  • 180° at 5600K: 8 fc / 95 Lux at 3.3' / 1 m*
  • 180° at 6500K: 8 fc / 94 Lux at 3.3' / 1 m*
  • 180° at 7500K: 8 fc / 89 Lux at 3.3' / 1 m*
  • 180° at 10000K: 7 fc / 83 Lux at 3.3' / 1 m*

  • Fixture : ?42 x 300mm / ?1.65 x 11.81in
  • USB-C Charging Cable Length: 1.1m / 43.31in

  • Fixture 315g / 0.69lbs

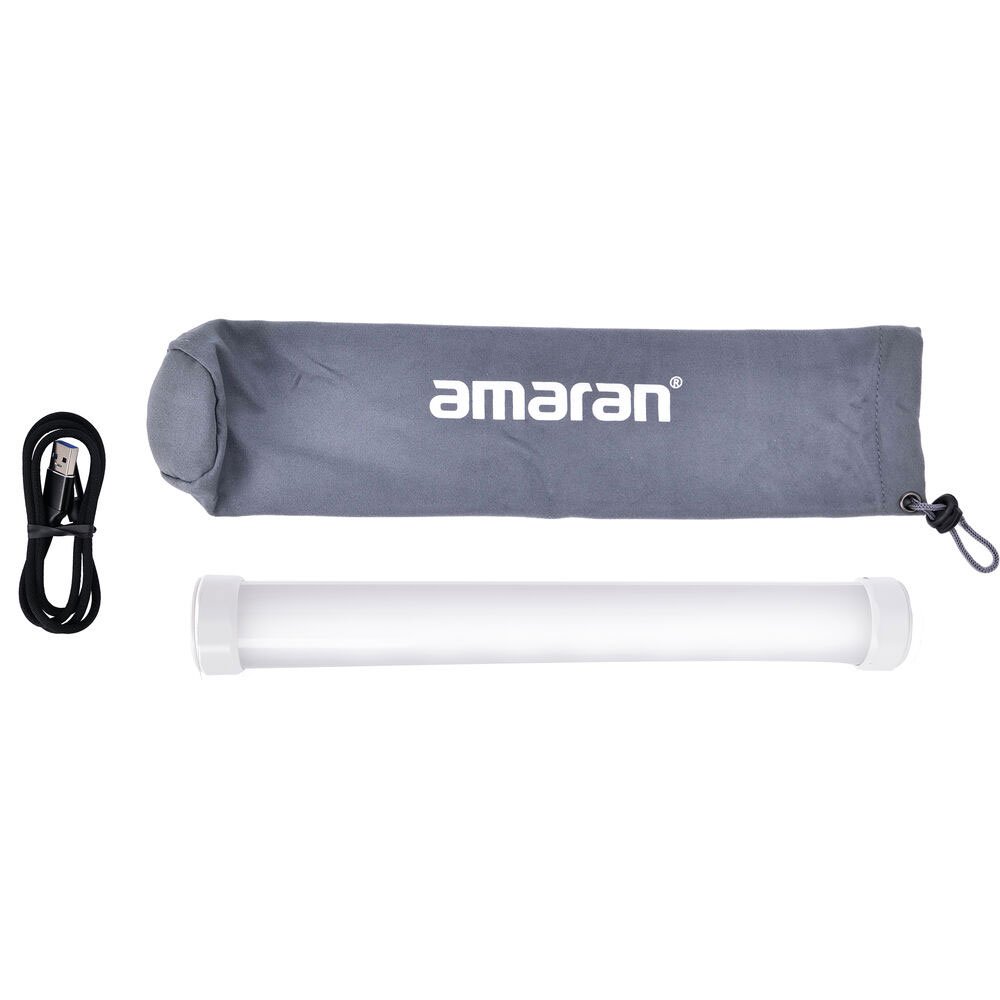

  • amaran PT1c
  • USB Type-C Charging Cable (1.1m)
  • Carrying Pouch
