The AudioFuse is the revolutionary next-gen pro audio interface that sets a new standard in sonic quality, creative production, and value. Space grey color
You told us what you wanted, and we listened. Whether you work at home or are on the road recording and gigging, you want the sound a professional studio delivers. Now you can have it.
We put the same meticulous craftsmanship into AudioFuse as our award-winning software reincarnations of the world's greatest synths. AudioFuse is built on a fully symmetrical audio chain, with every stage carefully designed to culminate in unrivaled sonic purity. The two custom designed DiscretePRO® microphone preamps combine the best of yesterday's vintage consoles with today's cutting-edge technology, giving you and your music superior audio performance. Next-generation analog-to-digital converters deliver over-the-top audio quality with amazing transparency that reveals every nuance in your music.
Designed with your creative process in mind.

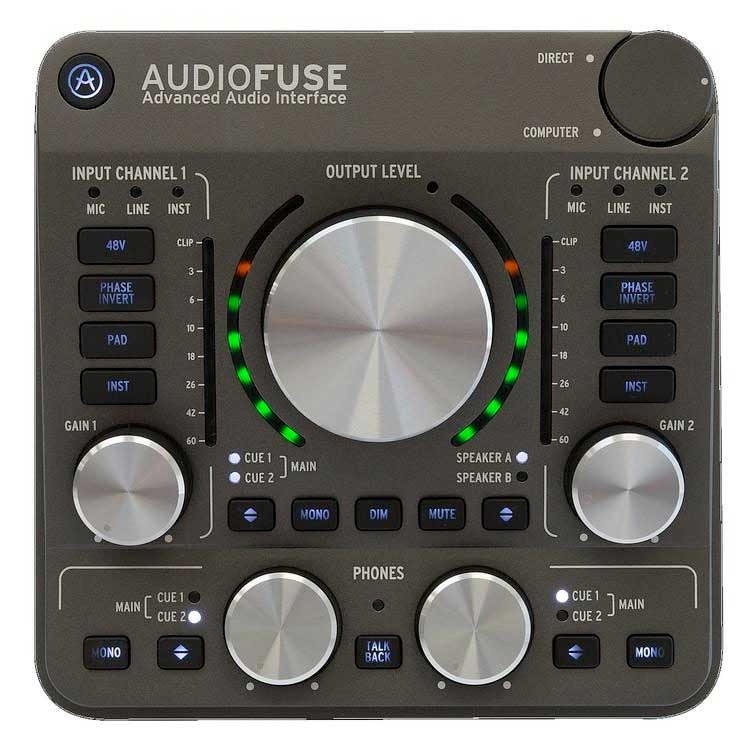

Want to adjust the gain on channel 1 Turn the dedicated knob. Need to switch monitors Press a button. Want more level in one of the headphones Just turn up that dedicated knob. There are no menus in AudioFuse. Nothing is buried, so every control is always at your fingertips without any speed bumps. There's nothing in the way of your creative flow.
What do you want to connect No problem!
AudioFuse connects with virtually everything: mics, instruments, turntables, studio equipment, Mac, PC, Linux, tablets, even iOS and Android phones. It all happens with a round-trip latency as low as 3 milliseconds so you'll feel right in the groove every time.
Capture the moment-at home, in the studio, on the road, or wherever creativity strikes.
AudioFuse has a super-solid aluminum chassis you can trust, complete with a hard cover to protect it from damage in your bag-or even just dust on your desktop. The build quality goes far beyond a great-looking exterior, as well. Your unit has to pass rigorous testing before it can be packed and shipped. It even comes with a test specification printout of your exact unit. Meet your new highly-reliable best friend.
2 DiscretePRO microphone preamps2 RIAA phono preamps4 analog inputs: 2x Mic/Instrument/Line (XLR / 1/4" TRS), 2x Phono/Line (RCA / 1/4" TRS)4 analog outputs (1/4" TRS)2 analog inserts (1/4" TRS)ADAT in/outS/PDIF in/outWord clock in/outMIDI in/out24-bit next-generation A-D/D-A converters at up to 192kHz sampling rateAnalog soft-clipping optionTalkback with dedicated built-in microphoneA/B speaker switchingDirect monitoringSeparate master and monitor mix channelsUSB interface with PC, Mac, iOS, Android and Linux compatibility3-port USB hub3 models: Classic Silver, Space Grey, Deep BlackAluminum chassis, hard leather-covered top coverDiscretePRO® Technology
Input impedance: 20k (symmetric), 10k (asymmetric)Maximum input level: +24dBuGain range: from -15dB to 36dBPad mode: -20dBFrequency response 20Hz to 20kHz: < +/- 0,08 dBDynamic range: 117dB (A-weighted)THD+N: -106dB (A-weighted)
Input impedance: 1.1M asymmetricMaximum input level: +18dBuGain range: from -15dB to 36dBPad mode: -20dBFrequency response 20Hz to 20kHz: < +/- 0,08 dBDynamic range: 117dB (A-weighted)THD+N: -104dB (A-weighted)
Input impedance: 20k (symmetric), 10k (asymmetric)Maximum input level: +24dBuPad mode: -20dBFrequency response 20Hz to 20kHz: < +/- 0,08 dBDynamic range: 118dB (A-weighted)THD+N: -104dB (A-weighted)
Input impedance: 3.4kMaximum input level: +11dBuGain range: from 3dB to 76dBBoost mode : +10dB ; Pad mode : -20dBFrequency response 20Hz to 20kHz: < +/- 0,08 dBEquivalent Input Noise (EIN): -131.5dBu typical (A-weighted)THD+N: -104dB (A-weighted)
Output impedance: 33Input impedance: 10kDynamic range: 119dB (A-weighted)Maximum output level: +18dBuMaximum Input level: +18dBuTHD+N: -104dB (A-weighted)
Output impedance: 120Maximum output level: +24dBuDynamic range: 119dB (A-weighted)THD+N: -104dB (A-weighted)
Output impedance: 33Maximum output level: +10dBuDynamic range: 102dB (A-weighted)THD+N: -87dB (A-weighted)
Windows: Win 7+ PC: 4 GB RAM; Intel i5 CPU or faster.1GB free hard disk spaceOpenGL 2.0 compatible GPUApple: 10.8+: 4 GB RAM; Intel i5 CPU or faster.1GB free hard disk spaceOpenGL 2.0 compatible GPU
GTIN (UPC/EAN) : 3760033530888
Manufacturer Part Number : AF-SPACE-GRAY
