HomepageMonitoringPower Amps › Ashly KLR-2000
Ashly KLR-2000

The Ashly KLR-2000 delivers performance with the best signal/noise ratios of any amp in it's category. High quality power amplifier.

The two-channel power amplifier shall incorporate the latest amplifier technology to deliver a minimum power of 1,000 Watts per channel into 2 Ohm loads, 600 Watts RMS per channel into 4 Ohm loads, or 350 Watts RMS per channel into 8 Ohm loads with both channels operating. The amplifier shall have rear panel switching for parallel mono and bridging modes. When switched into bridged-mono mode, the amplifier shall deliver 2,000 Watts into a 4 Ohm load.The amplifier protection shall include output over-current, DC output, chassis temperature, and a mains circuit-breaker. Frequency response shall be 20Hz-20kHz (1W @ 8 Ohms). The Signal-to-Noise Ratio shall be greater than 108dB at rated power into 8 Ohms (unweighted). THD shall be less than 0.05% into 4 Ohms, 20Hz-20kHz and 10dB below rated power. The amplifier shall have a channel attenuator for each input on the front panel and input sensitivity select switch, a high-pass filter switch and limiter enable switch on the rear panel. The inputs shall be of balanced bridging type with XLR, ¼" TRS, and 3-pin Euroblock connectors. The outputs shall be four pin SpeakON type connectors. LED type indicators shall be employed to show the relative power level of each channel, clip/protect and power on/off. Self contained forced air cooling (front in) shall be used with front panel mounted, removable dust filters. The power amplifier shall weigh 26.2lbs/11.9kg net and mount in a standard 19 inch rack using two spaces (3.5 inches high). The power requirement shall be 120VAC or 240VAC ±10%, 50-60Hz, factory set. The power amplifier shall be the Ashly KLR-2000.
Features
  • Rated for 2 Ohms operation
  • Balanced inputs via 3-pin Euroblock
  • Combo XLR/TRS connectors
  • Neutrik speakON® type output connectors
  • Switch-mode power supply with extensive protection circuitry
  • On/off limiter switch
  • Forced-air cooled (front-in, rear-out)
  • Removable dust filters, easy to clean
  • Front-mounted attenuators
  • Removable amp handles for permanent installation
  • Optional locking front panel volume knobs
  • Safety/Compliance: cCSAus, CE, FCC, RoHS
  • Specifications
    Specifications : Note: 0dBu = 0.775 VRMS
    Frequency Response (1W @ 8 Ohms) : 20Hz-20kHz (+0.3dB) 5Hz-70kHz (-3dB down point)
    Damping Factor: >380 (100Hz @ rated power @ 8 Ohms)
    THD (20Hz-20kHz): 10dB below rated output @ 4 Ohms <0.05%
    Input Impedance: 12k Ohm, balanced
    Max Input Level: +21dBU
    HPF: 30Hz, 50Hz, Off (12dB/Oct)
    Amplifier Protection: Output Overcurrent, DC Output, Chassis Temperature, Mains Breaker (KLR-5000 uses internal Mains fuse)

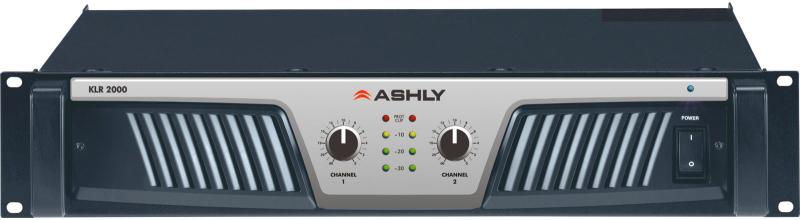

    Front Panel
    Operating Temp/Humidity: -10C to +40C/Humidity: 0% to 90%
    Airflow/Cooling: Front-to-Rear, Variable Speed Fan
    Front Panel Indicators: Protection/Clip, Signal, Power
    Attenuators: Front Panel (each channel)

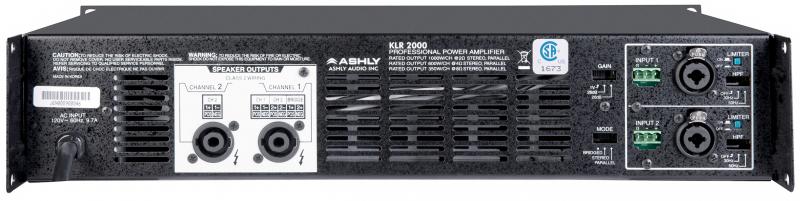

    Rear Panel
    Input Connectors (each Ch) : 3-pin Euroblock, XLR, ¼" TRS Phone Jack
    Output Connectors: 4-pin SpeakON® type (each channel)
    Power Cable Connector: 3-prong NEMA 5-15, 5-20 for KLR-5000
    Weights, Dimensions & Power
    Dimensions: 19" W x 3.5" H x 16" D (482mm x 88mm x 407mm)
    Unit Weight: 26.2lbs (12kg)
    Shipping Weight: 31lbs (15kg)
    Power Requirements: 120VAC or 240VAC, ±10% (factory set) 50-60Hz
    Reviews
    Price *
    $999.00
    $879.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the KLR-2000, please visit the website of Ashly
