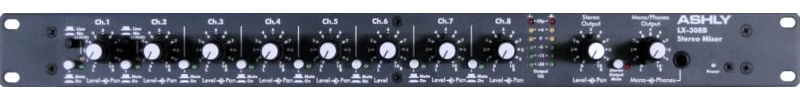

Ashly LX-308 B

The Ashly LX-308B is a true stereo 8-channel line level mixer. The applications for the LX-308B would include boardroom sound systems, multimedia sound distribution and other.

The unit shall be an eight channel stereo line-level mixer in a one rack space metal chassis. Each channel shall have a pair of balanced 1/4" input jacks with level and pan controls on the front panel. Channels 1 and 2 shall be switchable to accommodate either microphone or line level sources. An input on/off switch with a LED status indicator shall be provided for independent channel muting. The unit shall have separate Left and Right clip indicators to monitor all internal amplifiers for any possible overload conditions. There shall be Left and Right outputs on 1/4" TRS phone jacks which can be used as balanced or unbalanced. In addition, there shall also be an independent Mono summed output on a separate 1/4' TRS jack. A master Left/Right level control, pan, and a master stereo mute switch must be provided on the front panel, as well a level adjustment for the independent Mono output.

There shall be a stereo headphone jack with separate level control located on the front panel of the unit. Pre-Master sub inputs and outputs for linking with other mixers must be located on the rear panel. The unit shall have the ability to operate as an eight input stereo or a sixteen input mono mixer by patching cables accordingly. The mixer shall provide a unity gain signal path when all level controls are set at twelve o'clock. Distortion shall be less than 0.02 % Total Harmonic Distortion at +20dBu (20Hz to 20kHz) and less than 0. 01% Intermodulation Distortion (SMPTE) at +28dBu. Hum and Noise shall be less than -100dBu residual output noise when all levels are set at minimum, and less than -90dBu at nominal (unity) gain. Frequency Response shall be ± 0.2dB, 20Hz-20kHz. Voltage gain of the mixer shall be 30dB ± 1dB when measured from channel input to master output when levels are set at maximum. Voltage gain when channel one or two are in mic position shall measure 61dB ± 1dB at the master outputs. Crosstalk of the unit shall be less than -80 dB when measuring adjacent inputs or input to output at 1kHz. Dimensions of the model shall be 19" wide x 1. 75" high x 8. 0" deep. The shipping weight shall be 10 pounds. The mixer must be made in America and covered under a full Five Year warranty. The mixer shall be the model LX-308B, manufactured by Ashly Audio, Inc. of Webster, New York. No other unit shall be acceptable unless data submitted from an independent test laboratory verifies that the above specifications are fully met or exceeded.
Features
  • True, stereo 8-channel line level mixer, doubles as a 16-channel mono mixing unit
  • Convenient, 3.5mm stereo line in jack on front panel
  • for MP3 players and smartphones
  • Use alone or as an expander or sub mixer for larger consoles
  • All balanced inputs
  • Front panel level, pan controls and individual channel muting switches w/LED status indicators
  • Channels 1 and 2 are switchable for either mic or line level input
  • Safety/Compliance: cTUVus, CE, FCC, RoHS
  • Specifications
    Distortion, Hum and Noise 20Hz-20kHz
  • THD @ +20 dBu, 20Hz-20kHz : <0.02%
  • IMD (SMPTE) @ +20dBu : <0.01%
  • Residual Output Noise (all levels @ min) : <-100dBu
  • Master Out, Level & 1 Input Level @ nominal : <-90dBu
  • Voltage Gain (dB±1)
  • Inputs or Sub-inputs to Master Outputs (levels @ nominal) : 0dB
  • Input to Master Output (levels @ max) : 30dB
  • Input in Mic Position to Master Outputs (ch1 or ch2) : 61dB
  • Sub-inputs to Master Outputs (master level @ max) : 15dB
  • Crosstalk
  • Adjacent Inputs or Input to Output (@ 1kHz) : <-80dB
  • Adjacent Inputs or Input to Output (@ 20kHz) : <-60dB
  • Metering
  • VU Meters : Two 5-segment LED meters, 0VU = +4dBu
  • Peak Indicators : Activated when internal signal is 3dB below clipping
  • Weights, Dimensions & Power
  • Unit Weight : 7.7lbs (3.5kg)
  • Shipping Weight : 10lbs (5kg)
  • Dimensions : 19" W x 1.75" H x 9.4 D" (483mm x 44mm x 239mm)
  • Power Requirements : 100-240VAC, 50-60Hz, 30W
  • Reviews
    Price *
    $865.00
    $769.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the LX-308 B, please visit the website of Ashly
