The nX3.02 Amplifiers with Programmable Outputs made for sound systems in large architectural spaces require flexibility and big power that provide increased performance.
The unit shall be a 2 channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power shall be 3,000W per channel at Low Z, 2,450W per channel in 70V mode, and 1,250W in 100V mode. There shall be an automatic but defeatable sleep mode consuming <1W. A switch mode power supply shall auto-detect 120VAC or 240VAC mains, and a Neutrik® powerCON shall be used for the AC cord. Each channel shall have selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V. Each channel shall have remote DC level control. Input connectors shall be Neutrik® XLR/TRS combo jack and Euroblock, while output connectors shall be Neutrik® speakON.

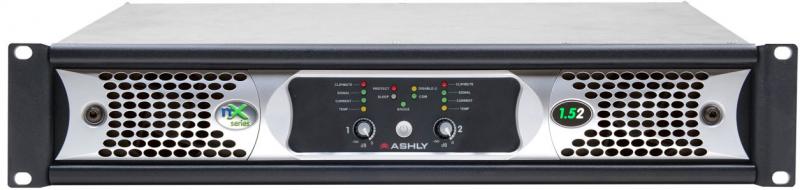

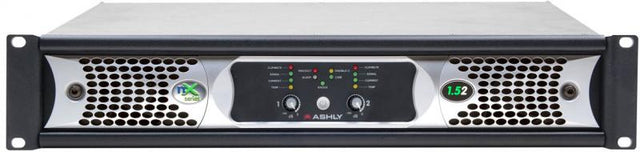

The unit shall have a front panel power switch and level controls that can be disabled. LEDs shall indicate Protect, Sleep, Disabled, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The amplifier shall have temperature dependent variable speed forced-air cooling. The unit shall weigh <22 lbs (10kg), measure 19"W x 3.5"H x 16.8"D (483mm x 89mm x 428mm), and mount in a standard 19" rack. No other unit shall be acceptable unless all specifications represented herein are met or exceeded and submitted in writing by an independent testing agent.
2 and 4-channel high-output, lightweight amplifiers with programmable output on each channel (High-Z or Low-Z, selected via rear panel DIP switches)Power-saving, Energy Management System (Ashly EMS) automatic <1W sleep-mode (defeatable)Front panel power switch and level controls (can be disabled for security)Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configurationRemote DC level control on each input channelSwitch mode power supply automatically detects 120V or 240V AC operationExtensive protection circuitry, continuously variable cooling fansMultiple independent internal power supplies provide increased channel separation and reliabilityNeutrik® Combo XLR - 1/4" TRS jack plus Euroblock input connectorsNeutrik® speakON® twist locking loudspeaker connectors for security, safety, and reliabilityNeutrik® powerCON® detachable AC mains connector
Voltage Gain : Selectable at 26dB, 32dB, 38dB, or 1.4VDamping Factor : >250 (8 Ohms load <1kHz)Input High Pass Filter : 80Hz 2nd orderDistortion (SMPTE, typical) : <0.5%Distortion (THD-N, typical) : <0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)Channel Separation : -75dB (dB from full output, 1kHz)Signal to Noise (20Hz-20kHz, unweighted) : >114dB (all 3.0x models)Frequency Response : 20Hz-20kHz, +/-0.05dBBalanced Input Connector : Euroblock 3.5mm, 1/4" TRS and XLR Combo jackInput Impedance : 10k OhmsMaximum Input Level : +21dBuSpeaker Output Connector : Neutrik® speakON®Remote DC Level Control : Euroblock 3.5mm - Gnd, CV, V+ per inputAttenuators (per channel) : Front panel and remote. Fully off = MuteAmplifier Protection : Inrush current limitation, temperature monitoring, output over-power protection, mains fusesAirflow : In through sides, Out through frontCooling : Continuously variable temperature controlled axial fan(s)Environmental : 32-113 deg F, (0-45 deg, C) (noncondensing)Unit Weight : 22lb ( 10Kg)Shipping Weight : 28lb ( 12.8Kg )Unit Dimensions : 19"W x 3.5"H x 16.84"D (483mm x 89mm x 428mm)Shipping Dimensions : 24.5"W x 22"H x 5.25"D (622mm x 559mm x 133mm)
GTIN (UPC/EAN) : 694970527324
Manufacturer Part Number : nX3.02
