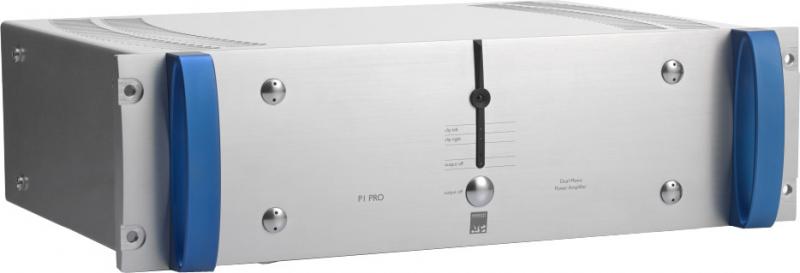

ATC Loudspeakers P1 Pro
Professional dual-mono 150W power amplifier designed to partner ATC passive monitors and other loudspeaker systems
The ATC P1 Dual-Mono Power Amplifier is of a "true" Dual Mono design, in that the power supplies signal and return paths are totally separated from each other. This approach ensures that the Amplifier will achieve the maximum signal separation and minimum crosstalk. Further, Intermodulation between channels via the power supplies is reduced to an absolute minimum at all frequencies, and, the power delivery from one channel cannot affect the specified power available from the other channel.
The amplifier incorporates the same gain reduction and loudspeaker protection circuits as used in the ATC active monitors. This ensures that even working at very high levels the amplifier is held back from clipping so improving the subjective performance and protecting the loudspeakers from damage.
150W per channelClass A/B operationHand built in the UKTrue dual mono designBalanced and unbalanced inputsAmplifier link output19 rack mountableFront "standby" button6 year warranty
Output Power into 8 : 150WInput Sensitivity: 2V RMSInput Impedance: 10k/legFrequency Response: 400kHz (-3dB)Signal to noise ratio: >110dB (DIN)Crosstalk: >100dBTHD: >0.002%/-95dBDimensions (HxWxD): 145x483x366mm
