MPN #SCM0.1/15


Save 14.3%, MSRP $11119.00
Financing available

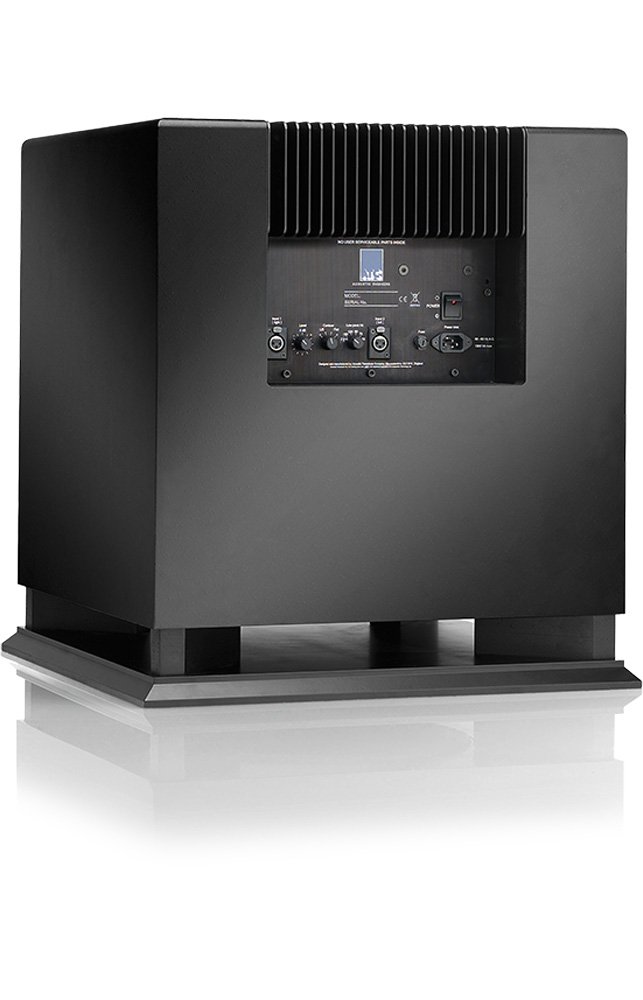

Professional active sub-woofer, rugged 15" driver with SL magnet technology and 650W class G amplifier

The ATC SCM0.1/15 Pro is a powerful 15" sub-woofer driven by the ATC 650W G amplifier. It is idealy suited for use with the ATC SCM50A Pro and SCM100A Pro, this powerful sub-woofer delivers over 115dB SPL down to 30Hz.

Features include dual XLR (L/R) input, an amp gain control, a LP filter with user selectable frequencies of 2K, 180Hz, 120, 90, 70, 50Hz. The contour control enables a peak type filter boost at 100Hz into the amplifier for calibration purposes or to compensate for source deficiencies.
  • Full "SL" spec 15/375mm bass driver
  • 650W Class A amplifier
  • Phase adjustment.
  • Variable cut off frequency.
  • Variable gain.
  • Stereo inputs.
  • Driver: LF 375mm
  • Amplitude Linearity (±2dB): 30Hz-300Hz
  • Cut-off Frequency (-6dB, free-standing): 20Hz
  • Max. Continuous SPL (1 metre): 115dB
  • Input Connectors: Male XLR
  • Input Sensitivity: 1V
  • Input Impedance: Balanced > 10k
  • Amplifier Output: Bass 650W
  • Filters: Even Order Critically Damped
  • Overload Protection: Active FET momentary gain reduction
  • Panel Indicators: Power On indicator
  • Dimensions (HxWxD): 624 x 580 x 580mm (24.6 x 22.8 x 22.8)
  • Weight: 60kg (132lb)
  • View more products from ATC Loudspeakers
