$11500.00

Eligible for free shipping in Canada. Learn more

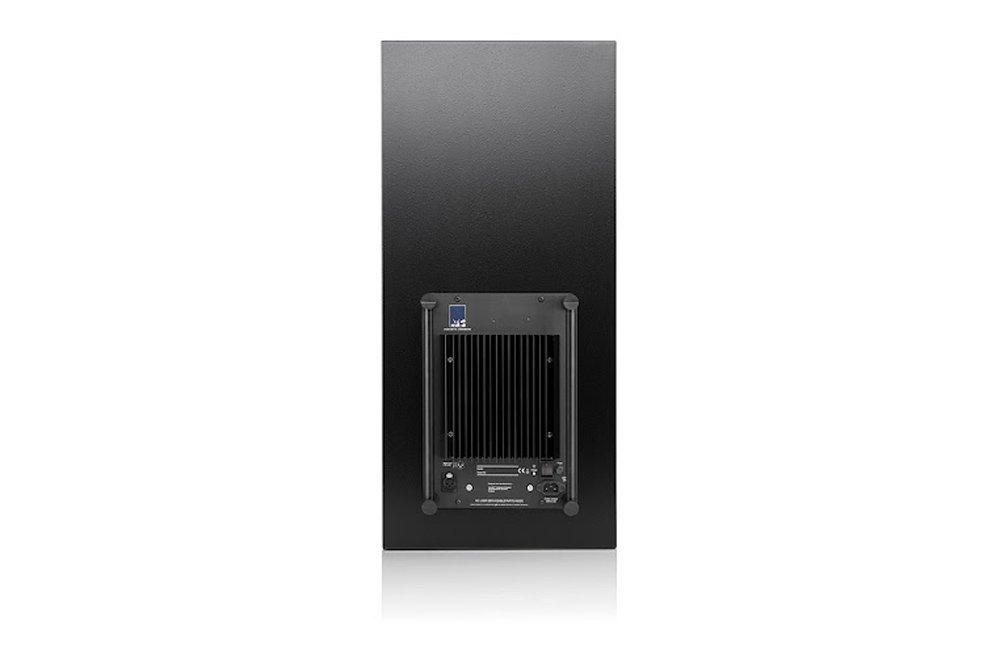

The ATC Loudspeakers SCM100ASL Pro is an active 3-way monitor system suitable for larger rooms, based around the same tweeter, midrange and amp configuration as the SCM50ASL Pro.



The SCM100ASL Pro is using a 314mm bass driver in a larger enclosure.

Maximum continuous SPLs of up to 115dB/1m are possible. 4th order active crossovers produce a highly linear amplitude response for both direct and ambient fields, contributing to exceptional stereo imaging.

The active design ensures optimum matching of six MOS-FET amp blocks to the drivers, providing plenty of transient headroom and maximum SPLs of up to 112dB.

An LF contour control provides five bass boost settings, and a flat reference response.

Features

  • ATC 25mm/1" Dual Suspension 'S-Spec' Tweeter.
  • Full "SL" spec 12/314mm bass driver.
  • ATC 3/75mm "Super Dome" mid driver.
  • On board grounded source 350W Tri-amp pack.
  • LF contour control.
  • Clip indication.
  • Specifications

    Drivers: HF 1/25mm, Mid 3/75mm, LF 12/314mm
    Amplitude Linearity (±2dB): 65Hz-17kHz
    Cut-off Frequencies (-6dB, free-standing): 32Hz, 22kHz
    Horizontal Dispersion: ±80°, Coherent
    Vertical Dispersion: ±10°, Coherent
    Max. Continuous SPL (1 metre): 115dB
    Crossover Frequencies: 380Hz, 3.5kHz
    Input Connectors: Male XLR
    Input Sensitivity: 1V
    Input Sensitivity Trim: 0dB to -6dB/1V - 2V (continuously variable via rear panel trimmer)
    Input Impedance: Balanced > 10k
    Amplifier Output: Bass 200W, Mid 100W, High 50W
    Filters: Even Order Critically Damped
    Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
    Front Panel Indicators: Power On indicator, Gain Reduction warning
    LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
    Dimensions (HxWxD): 832 x 398 x 581mm (32.8 x 15.7 x 22.9) Depth with amplifier at rear adds 3
    Weight: 65kg / 143lbs
