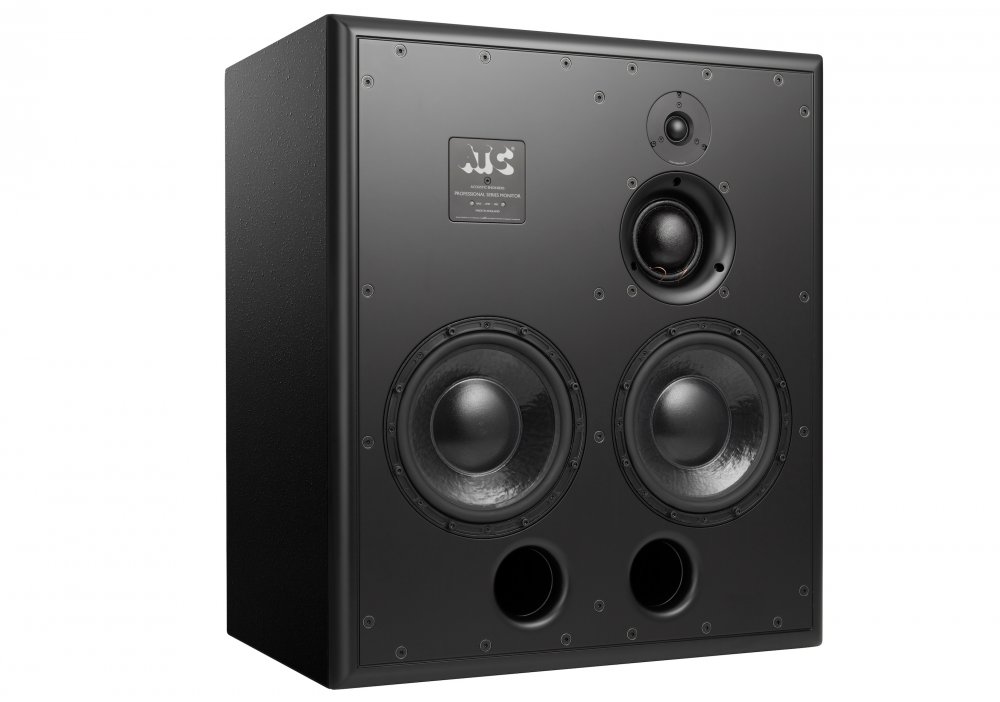

The ATC Loudspeakers SCM110ASL Pro is a professional active 3-way reference monitor. Built with the precision and attention to quality that ATC is known for.



Designed with high resolution sample rates and bit depths in mind for both stereo and multi-channel applications that feature a dedicated center channel and subwoofer system, the new low-profile SMC 110A comprises twin 9-inch ATC SL bass drivers, an ATC 3-inch soft dome mid and a soft dome one-inch tweeter. Maintaining the strict performance criteria of the taller models of ATC reference monitors, the SMC 110A offers a low profile specifically designed for better sight lines through windows and below obstructions.

Unparalleled functionality and dynamic range, and a 80 x 10 degree dispersion are combined in a monitor system that offers an amplitude linearity of 50 Hz-20 kHz (2 dB).

The active design matches six MOSFET amplifier blocks with the drivers to deliver an excellent transient response and a maximum SPL of 115dB. Amplifier output is 50 watts for HF, 100 watts for MF and 200 watts for LF. An LF contour control provides 6 dB of bass boost.

Features

  • ATC 25mm/1" Dual Suspension 'S-Spec' Tweeter.
  • Twin full "SL" spec 9/234mm bass driver.
  • ATC 75mm "Super Dome" mid driver.
  • On board ATC grounded source 350W Tri-amp pack.
  • LF contour control.
  • Clip indication.
  • Specifications

    Drivers: HF 1/25mm, Mid 3/75mm, LF 2x 9/234mm
    Amplitude Linearity (±2dB): 50Hz-17kHz
    Cut-off Frequencies (-6dB, free-standing): 30Hz, 22kHz
    Horizontal Dispersion: ±80°, Coherent
    Vertical Dispersion: ±10°, Coherent
    Max. Continuous SPL (1 metre): 115dB
    Crossover Frequencies: 380Hz, 3.5kHz
    Input Connectors: Male XLR
    Input Sensitivity: 1V
    Input Sensitivity Trim: 0dB to -6dB/1V - 2V (continuously variable via rear panel trimmer)
    Input Impedance: Balanced > 10k
    Amplifier Output: Bass 200W, Mid 100W, High 50W
    Filters: Even Order Critically Damped
    Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
    Front Panel Indicators: Power On indicator, Gain Reduction warning
    LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
    Dimensions (HxWxD): 715 x 625 x 420mm (28.2 x 24.5 x 16.5) Depth with amplifier at rear adds 3
    Weight: 73kg / 160.6lbs
    Manufacturer Part Number : SCM110ASLPRO
