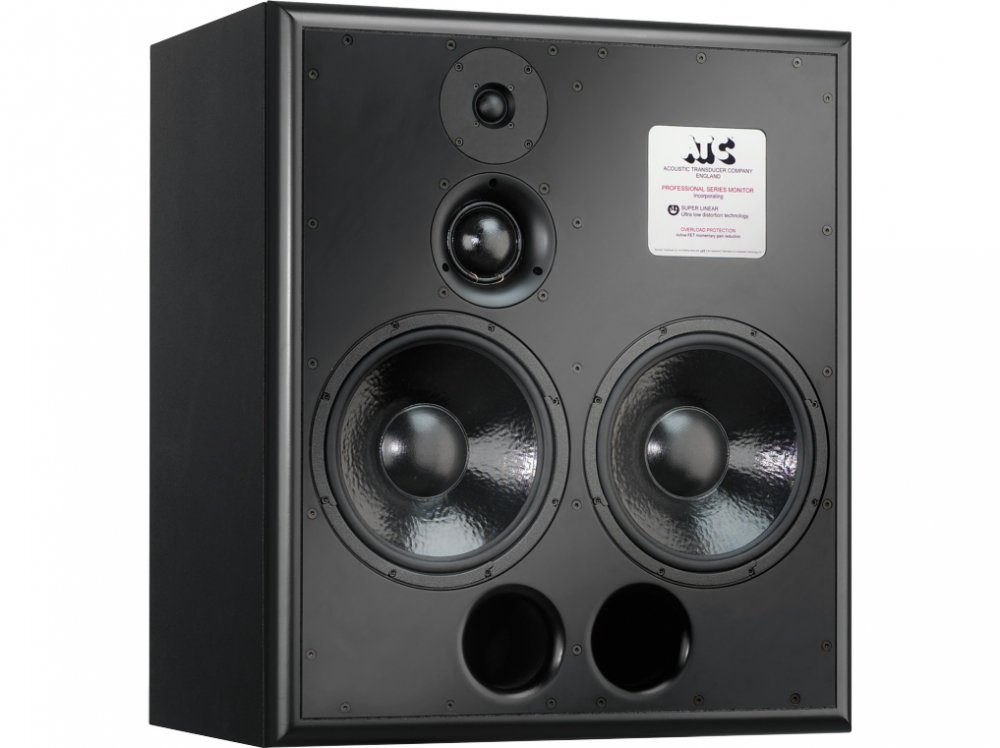

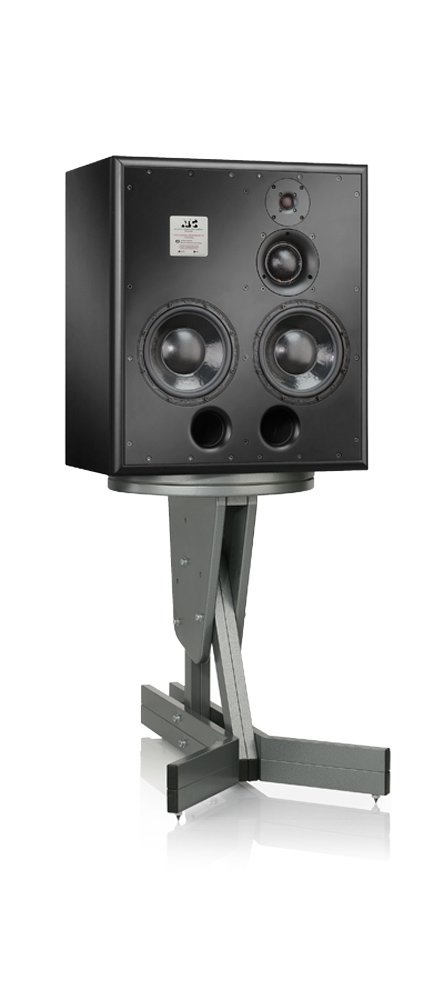

Large format main monitor designed with two Super Linear 12" low frequency drivers, P4 rack-mount 850W class A/B amplifier



ATC, Acoustic Transducer Company, is a specialist British manufacturer of loudspeaker drive units and complete sound reproduction systems, including the relevant electronic equipment. All systems and components are designed and built in-house, to achieve levels of performance far in excess of the industry norm. This is achieved by adopting a thoroughly professional engineering approach to the issue of basic design, materials science and production technology.
  • Large format main monitor.
  • 34mm soft dome tweeter.
  • Twin full spec "SL" 12/314mm bass drivers.
  • ATC 75mm "Super Dome" mid driver.
  • P4 rack-mount grounded source 850W class A/B amplifier.
  • Drivers: HF 1.25/34mm, Mid 3/75mm, LF 2 x 12/314mm
    Amplitude Linearity (±2dB): 60Hz-12kHz
    Cut-off Frequencies (-6dB, free-standing): 32Hz, 20kHz (free standing) 25Hz, 20kHz (soffit mounted)
    Horizontal Dispersion: ±80°, Coherent
    Vertical Dispersion: ±10°, Coherent
    Max. Continuous SPL (1 metre): 118dB
    Crossover Frequencies: 380Hz, 3.5kHz
    Input Connectors: Male XLR
    Input Sensitivity: 2V
    Input Impedance: Balanced > 10k
    Amplifier Output: Bass 275+275W, Mid 200W, High 100W
    Filters: Even Order Critically Damped
    Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
    Front Panel Indicators: N/A
    LF EQ: N/A
    Dimensions (HxWxD): 830 x 730 x 440mm (32.7 x 28.7 x 17.3)
    Weight: 116kg / 255.2lbs
