The entire Studio Economik's website is now priced in Canadian Dollars only.

$3550.00

Free shipping in Canada. Conditions

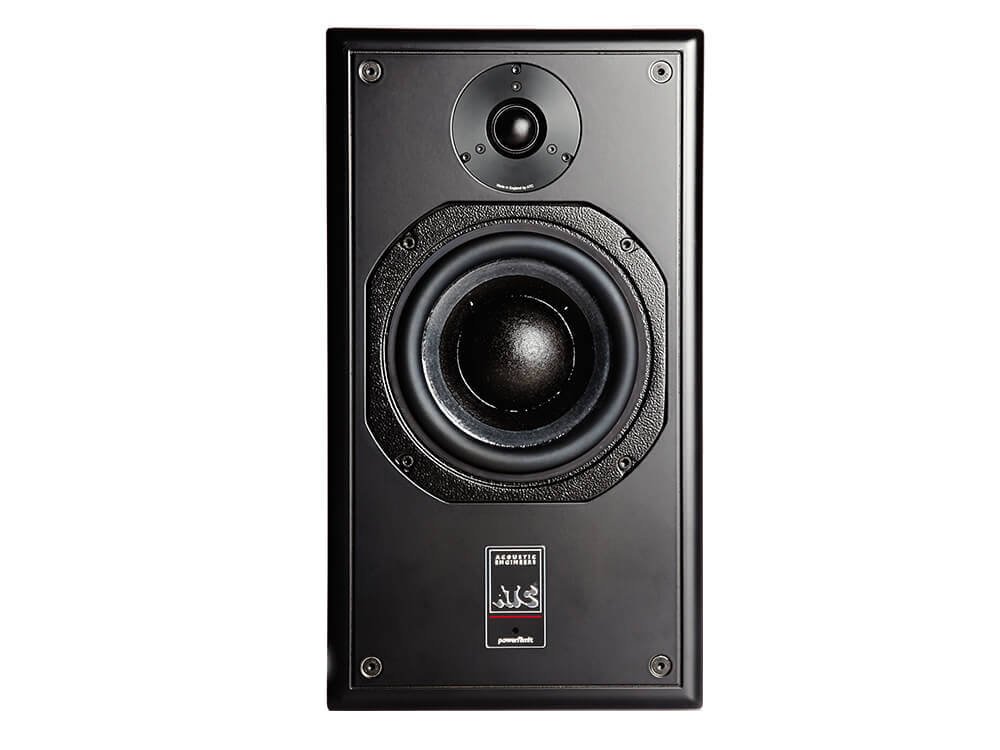

The ATC Loudspeakers SCM20ASL MKII two way active monitors offer project and home studios the dynamic range and pristine imaging ATC is known for worldwide.



ATC are renowned for their clear and surgically precise sound, their monitors facilitate the mixing of complex sound sources by their articulate reproduction of even the densest material. the SCM20ASL Pro is no exception. If any element sounds strange or doesn't sit well in the mix, you will hear it on these monitors. The SCM20ASL offer smaller project studios acces to the unrivaled ATC SCM range.

Features

Compact very high performance 2-way studio monitor ideally suited to:
  • critical near-field listening applications in all control rooms
  • LCR surround monitoring in small-to-medium control rooms
  • surround channels in medium-to-large control rooms

  • Proprietary ATC 150mm/6" Super Linear Mid/Bass Driver
  • Proprietary ATC 25mm/1" S-Spec Tweeter
  • Discrete MOSFET class A/B bi-amp pack with 200W/50W continuous power output
  • Specifications

    Drive unit - Low Frequency (LF): 6.5"/150mm Super Linear with 75mm/3 voice coil (SB75-150SL 8 Ohm)
    Drive unit - High Frequency (HF): 1"/25mm dual suspension Soft Dome (SH25-76S 6 Ohm)
    Amplitude Linearity (±2dB): 80Hz-20kHz
    Cut-off Frequencies (-6dB, free-standing): 55Hz, 25kHz
    Horizontal Dispersion: ±80°, Coherent
    Vertical Dispersion: ±10°, Coherent
    Max. Continuous SPL (1 metre): 108dB
    Crossover Frequency: 2.1kHz
    Input Connectors: Male XLR
    Input Sensitivity: 1V
    Input Sensitivity Trim: -12dB (1V - 4V)
    Input Impedance: Balanced > 10k
    Amplifier Output: Bass 200W, High 50W
    Filters: 2nd Order Critically Damped
    Overload Protection: Active FET momentary gain reduction
    Front Panel Indicators: Power On indicator, Gain Reduction warning
    Dimensions (HxWxD): 450 x 250 x 392mm (17.72 x 9.84 x 15.43)
    Weight: 28kg / 61.6lbs

    Reviews

    4.5
    Simon L'Espérance
    Montréal
    June 26, 2017
    Précision !
    Ces HP sont extrêmmement bien construits (à peu près 6-lbs la boîte) et on sent très bien la précision harmonique de ATC. Tout le registre haut et mid est hallucinant et super défini. Petit bémol; les graves sont un peu faibles, mais on s'habitue vite à ce genre de basse distortion dans les graves. Read more
