MPN #SCM20ASLTstandard

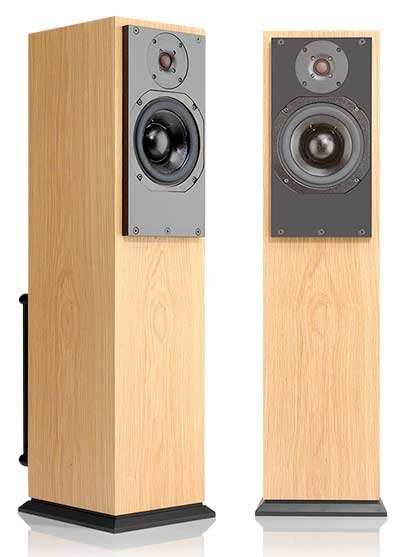

ATC Loudspeakers SCM20ASLT Standard (Pair)


Financing available
Free shipping in Canada. Conditions

Full size two way active Hi-Fi speakers with Super Linear 150mm mid/low frequency driver, 25mm soft dome high frequency unit, and on board 250W Class AB bi-amplifier

The SCM20SL Tower is ATC?s flagship 2-way floor-standing loudspeaker and is the ideal choice in modestly sized rooms, but where performance cannot be compromised. It is available in both passive and active bi-amplified versions, the SCM20PSLT and SCM20ASLT respectively.

Its sealed cabinet design ensures excellent timing, useful low frequency output below the cut-off and that the speakers can be placed relatively close to walls without excessive low frequency ?boom?.

Both the mid-bass driver and tweeter are handmade by ATC. The bass driver is a 6?/150mm part with huge 3?/75mm voice coil and massive, long-gap (short-coil) motor assembly featuring ATC?s proprietary ?SL? motor technology. The tweeter is a 1?/25mm soft-dome part featuring a dual-suspension and very high energy 2.1 tesla motor. Together, they form the basis for an exceptional 2-way monitor loudspeaker capable of delivering outstanding resolution and musicality.

Driver integration withing the passive model is handled 2nd order crossover featuring oversize air-core inductors which are would in-house by ATC. Capacitors are all high voltage polypropylene film types and the input features heavy duty binding posts in a bi-wire configuration.

The active SCM20ASLT features an on-board ATC bi-amp pack featuring 2-way active crossovers and class A/B MOSFET power amps, delivering a total power output of 250W. The active crossovers superior accuracy and phase coherence, plus the removal of the lossy passive components between power amp and drivers deliver a level of performance that simply can?t be matched by competing passive designs.

The SCM20 cabinet is constructed to be heavy and inert, with bitumastic damping panels deployed at critical positions to minimise cabinet colouration. The cabinets are available in 10 different hand selected veneers; satin black/white painted finishes and also piano/white high gloss polyester.
  • Also available in passive version (SCM20PSLT)
  • Full SL Spec Bass driver with 75mm integral soft dome
  • 9kg optimised motor assembly
  • In-house, hand wound precision flat wire coil
  • Wide, even dispersion for pin-point imaging
  • 250watt Class AB bi-amp pack (active version)
  • Active filters and overload protection (active version)
  • Any veneer to order. Featured veneer: Oak
  • Active
  • Drivers: HF 25mm Neodymium, Mid/LF 150mm
  • Frequency Response (±2dB): 80Hz-17kHz
  • Frequency Response (±6dB): 60Hz-22kHz
  • Matched Response: ±0.5dB
  • Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
  • Max SPL: 108dB
  • Crossover Frequency: 2.8kHz
  • Connectors: Male XLR
  • Filters: Active & Passive - 2nd Order Linkwitz-Riley
  • Amplifier Output: 200w LF, 50w HF
  • Cabinet Dimensions (HxWxD): 1023x239x365mm
  • Weight: 40kg
  • View more products from ATC Loudspeakers
