MPN #SCM300ASL
This product is not available online. Learn more

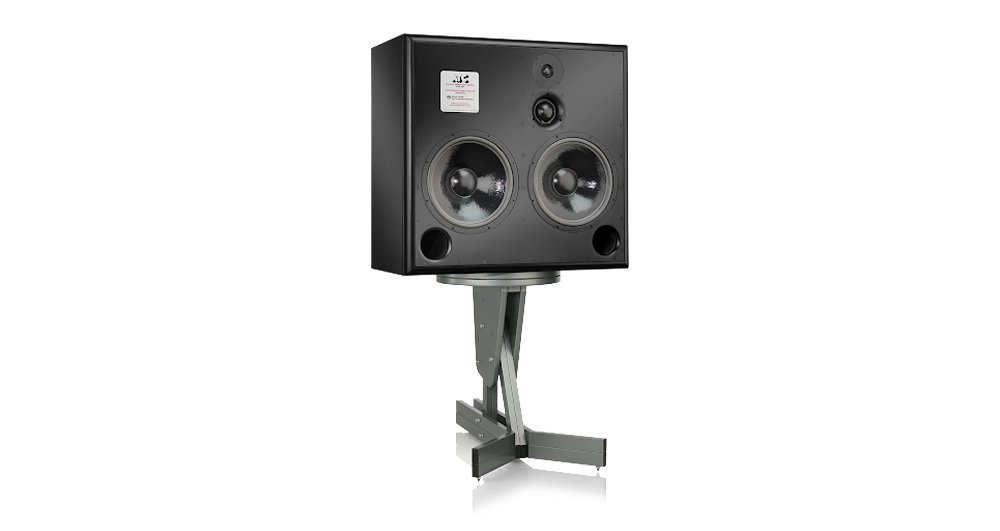

Three-way high SPL for far-field monitor for music/film



Based on the same mid and HF drivers, and the same amplifier block as the ATC SCM200A Pro, the ATC SCM300A employs larger 375mm bass drivers and a larger 300 litre enclosure to deliver even higher maximum volume (121dB/1m), with extended bass and increased transient headroom.

The new ATC SCM300 AT is a superb speaker producing prodigious bass output down to 25Hz. with legendary ATC dynamics and power.

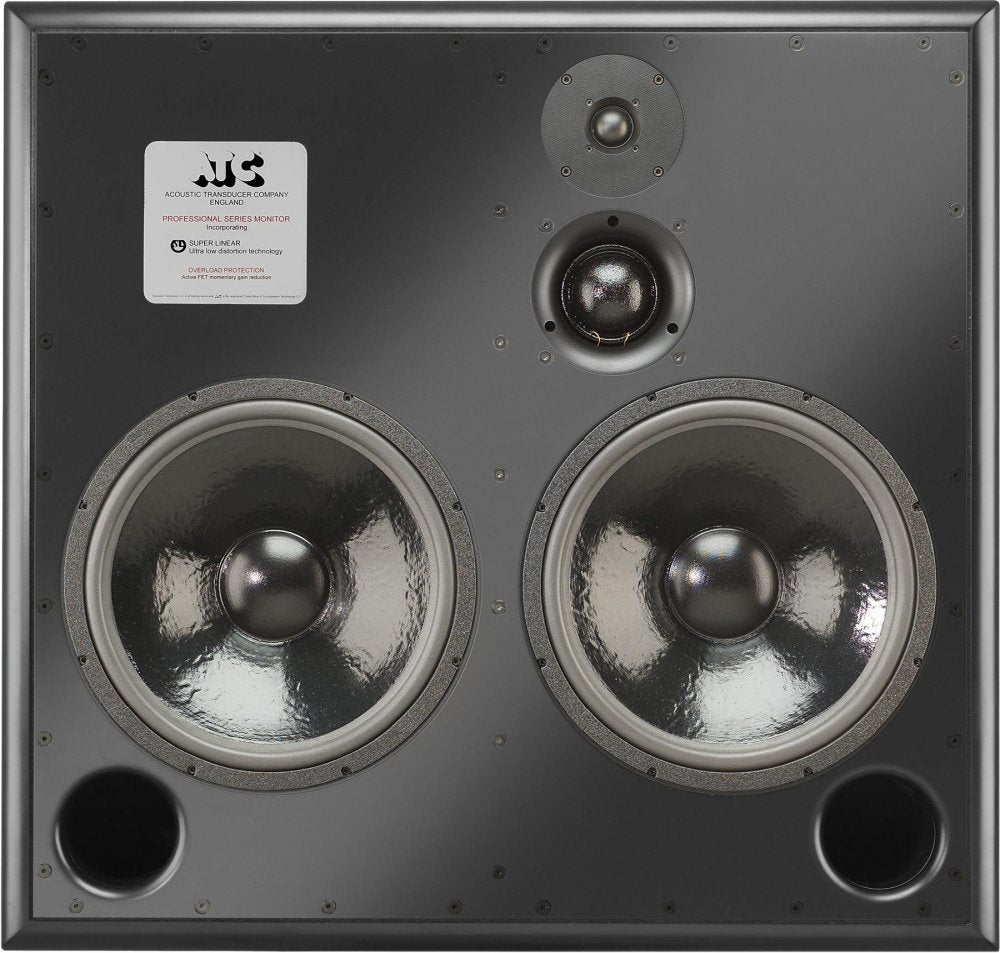

Featuring a pair of ATC 375mm bass drivers, the legendary ?Super Dome? midrange driver and a 34mm soft dome tweeter.
  • Large format main monitor.
  • 34mm soft dome tweeter.
  • Twin full spec ?SL? 15?/375mm bass drivers.
  • ATC 75mm ?Super Dome? mid driver.
  • P4 rack-mount grounded source 850W class A/B amplifier.
  • Loudspeakers
    Drivers: HF 1.25?/34mm, Mid 3?/75mm, LF 2 x 15?/375mm
    Amplitude Linearity (±2dB): 50Hz-12kHz
    Cut-off Frequencies (-6dB): 25Hz, 20kHz (free standing) 20Hz, 20kHz (soffit mounted)
    Horizontal Dispersion: ±80°, Coherent
    Vertical Dispersion: ±10°, Coherent
    Max. Continuous SPL (1 metre): 121dB
    Crossover Frequencies: 380Hz, 3.5kHz
    Dimensions (HxWxD): 884 x 925 x 460mm (34.8? x 36.4? x 18.7?)
    Weight: 87kg / 191.4lbs

    P4 Amplifier (standalone 5U/19? unit)
    Audio Input: Rear panel mounted female xlr (pin 2 +)
    Input Sensitivity: 2V
    Input Impedance: Balanced > 10k?
    Amplifier Output: Bass 275+275W, Mid 200W, High 100W
    Filters: Even Order Critically Damped
    Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
