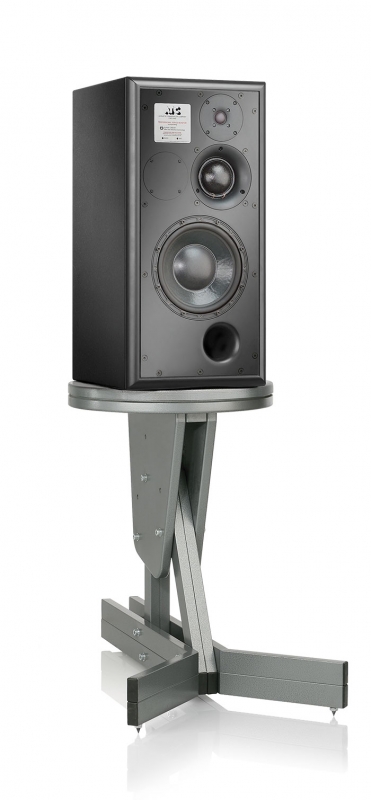

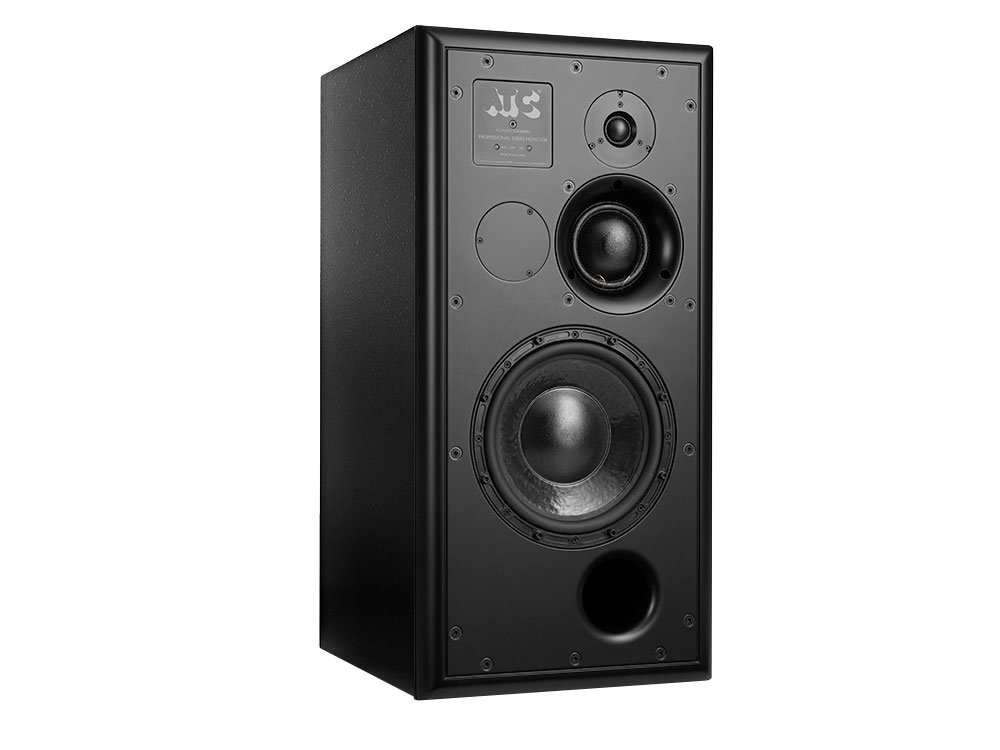

The ATC SCM50ASL Pro is an active 3-way system designed for reference monitoring in medium sized mixing rooms. They deliver extended bass and excellent linear midrange response.
With a 234mm Super Linear bass driver and ATC's unique SM75-150S mid range soft dome driver, the active design ensures optimum matching of six MOS-FET amp blocks to the drivers, providing plenty of transient headroom and maximum SPLs of up to 112dB.
An LF contour control provides five bass boost settings, and a flat reference response.
ATC 25mm/1" Dual Suspension 'S-Spec' Tweeter.Full "SL" spec 9/234mm bass driver.ATC 75mm "Super Dome" mid driver.On board grounded source 350W Tri-amp pack.LF contour control.Clip indication.
Drivers: HF 25mm, Mid 75mm, LF 234mm
Amplitude Linearity (±2dB): 70Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 38Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 112dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: ±6dB
Input Impedance: Balanced > 10k
Amplifier Output: Bass 200W, Mid 100W, High 50W Filters : Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: +6dB @ 40Hz
Dimensions (HxWxD): 716 x 351 x 400mm (28.2 x 13.8 x 18.8) Depth with amplifier at rear adds 3
Weight: 49kg / 107.8lbs
Manufacturer Part Number : SCM50ASLPRO
